| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.12mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 2900V 0.12mm Fully Insulated Wire FIW Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Diameter: | 0.12mm | Conductor Material: | Copper |
| Key Word: | FIW4 2900V 0.12mm Fully Insulated Wire FIW Wire | ||
| High Light: | 0.12mm Fully Insulated Wire,Fully Insulated Wire FIW Wire,Copper Conductor Fully Insulated Wire |
||

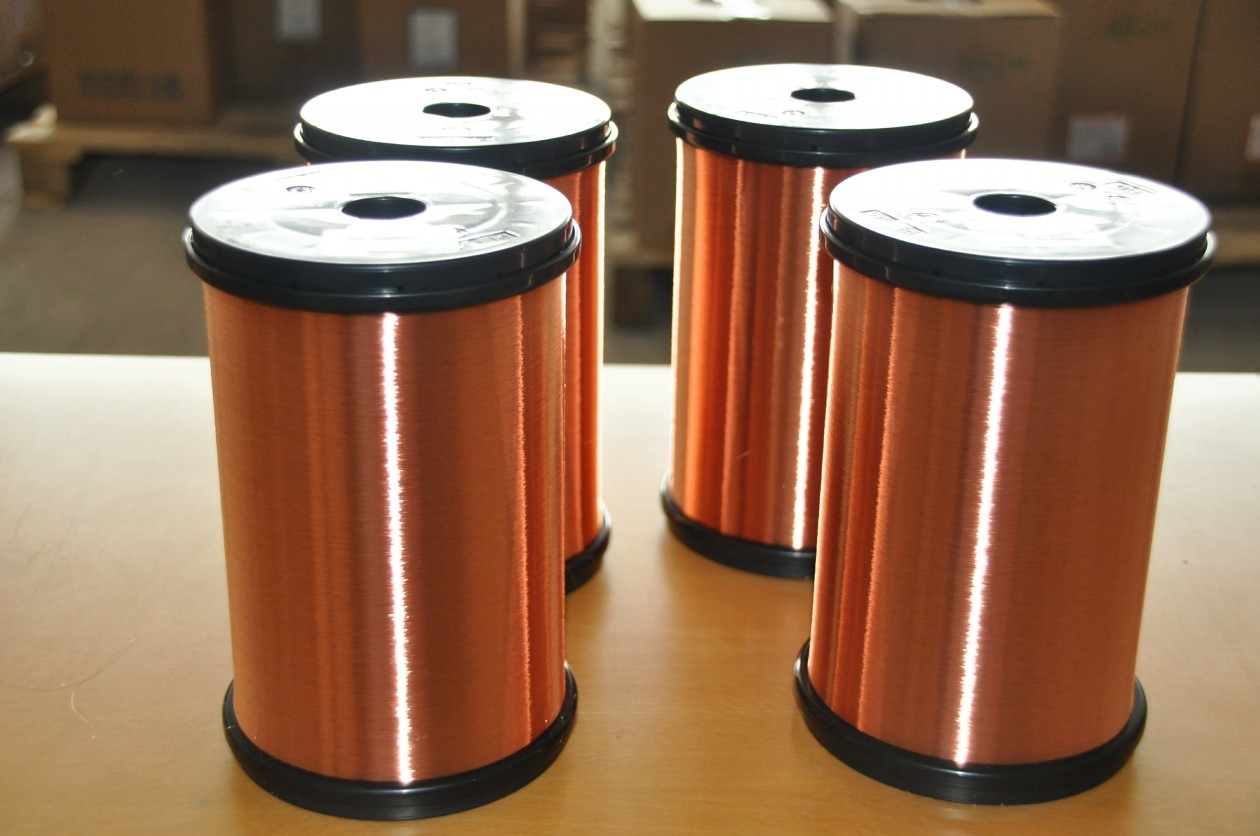

FIW4 2900V 0.12mm Fully Insulated Wire FIW wire
According to the thickness of the insulating paint film, there are seven grades of FIW3 to FIW9, among which the thickest FIW9 has the strongest pressure resistance. Tianjin Ruiyuan is one of the few companies in the world that can make the FIW9.
| Product |
FIW4 2900V 0.12mm Fully Insulated Wire FIW wire |
|
Key word |
FIW4 2900V 0.12mm Fully Insulated Wire FIW wire |
| Nom.Diameter(mm) | Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
