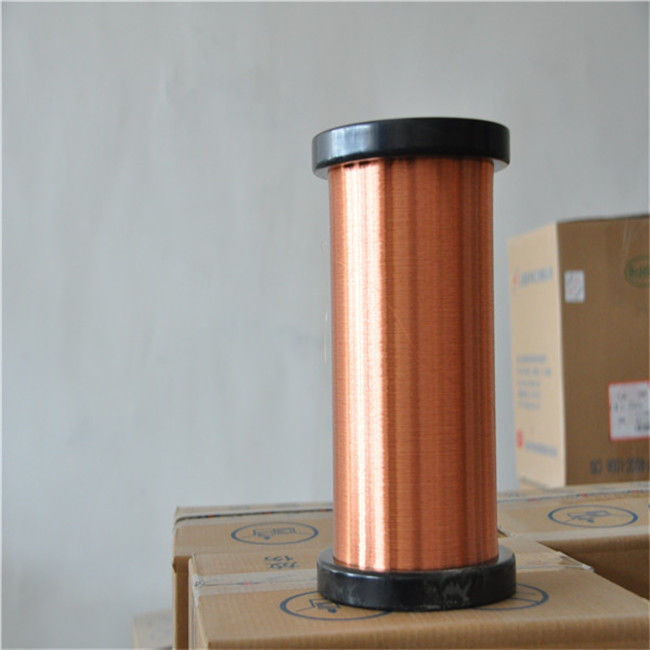

FIW3 High Voltage Copper Enameled Wire 0.2mm Fully Insulated Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.2mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: FIW3 High Voltage 0.2mm Fully Insulated Wire Copper Enameled Wire Thermal Rating: 180
Diameter: 0.1mm Conductor Material: Copper
Key Word: FIW3 High Voltage 0.2mm Fully Insulated Wire Copper Enameled Wire
High Light:

Copper Enameled Wire 0.2mm

,

Copper Enameled Fully Insulated Wire

,

High Voltage Copper Enameled Wire


Product Description

FIW3 High Voltage 0.2mm Fully Insulated Wire Copper Enameled Wire



Here are the advantages of FIW



1. Effectively isolating the wires from contact with the surrounding environment can ensure the safety and stability of the electrical system.

2. Able to work normally in high-voltage environments, not easily affected by electrical interference and damage.

3. Good durability and anti-aging performance, it can be used for a long time without deterioration of the insulation layer.

4. Excellent high-temperature resistance, able to withstand the effects of high-temperature environments, not easy to deform or melt.



Product

FIW3 High Voltage 0.2mm Fully Insulated Wire Copper Enameled Wire

Key word

FIW3 High Voltage 0.2mm Fully Insulated Wire Copper Enameled Wire



Nom.Diameter(mm) Min. Breakdown voltage (V) 20℃
  FIW3 FIW4 FIW5 FIW6 FIW7 FIW8
0.100 2106 2673 3969 5265 6561 7857
0.120 2280 2964 4332 5700 7068 8436
0.140 2432 3192 4712 6232 7752 9272
0.160 2660 3496 5168 6840 8512 10184
0.180 2888 3800 5624 7448 9272 11096
0.200 3040 4028 5928 7828 9728 11628
0.250 3648 4788 7068 9348 11628 13908
0.300 4028 5320 7676 10032 12388 14744
0.400 4200 5530 7700 9870 12040 14210
0.450 4480 5880 8050 10220 12390 14560
0.475 4690 6160 9030 11900 14770 17640
0.500 4690 6160 9030 11900 14770 -
0.560 3763 4982 7155 9328 11501 -
0.600 3975 5247 7420 9593 11766 -
0.710 4240 5565 7738 9911 12084 -
