| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.22mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Factory Price Enamelled Copper Wire For Relays | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.22mm |
| Conductor Material: | Copper | Key Word: | Custom Factory Price Enamelled Copper Wire For Relays |
| High Light: | enamelled wire Custom,0.22mm enamelled copper wire,Polyurethane Insulation enamelled copper wire |
||

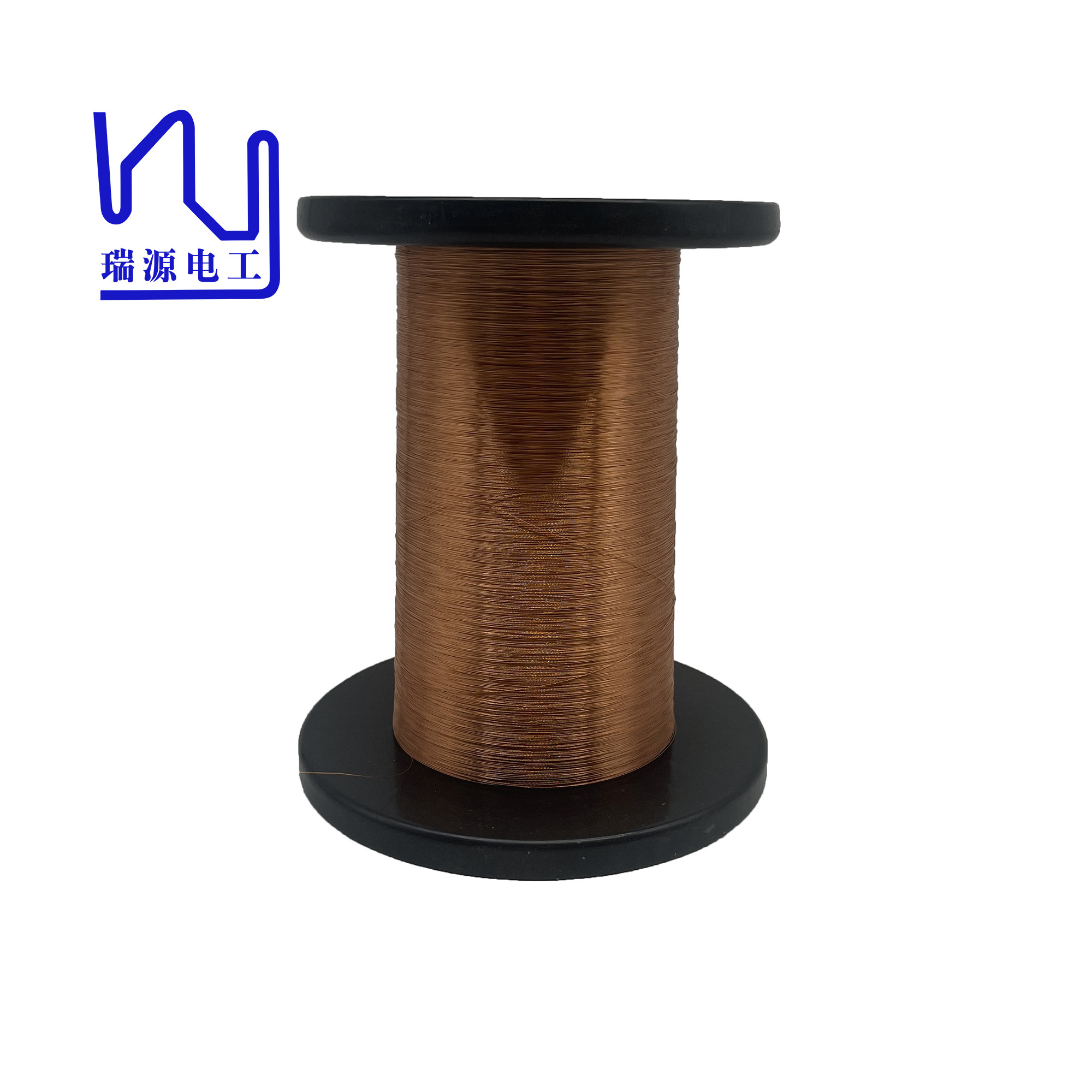

Custom Factory Price Enamelled Copper Wire For Relays
Enameled copper wire, as an electrical material, plays a vital role in the design and manufacturing of electrical equipment. Different types and specifications of enameled copper wire have different characteristics.
Choosing the appropriate enameled copper wire can effectively improve the performance and reliability of the equipment. We provide customized enameled copper wire production services, and welcome customers to consult and customize according to their own needs.
| Product |
Custom Factory Price Enamelled Copper Wire For Relays |
|
Key word |
Custom Factory Price Enamelled Copper Wire For Relays |
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.220mm ±0.003mm | 0.221 | 0.221 | 0.221 |
| Thickness of Insulation | ≥ 0.016 mm | 0.022 | 0.023 | 0.022 |
| Overall Diameter | ≤ 0.248mm | 0.243 | 0.244 | 0.243 |
| DC Resistance | ≤ 0.466 Ω/m | 0.4478 | 0.4452 | 0.4466 |
| Elongation | ≥21% | 26.3 | 24.8 | 25.2 |
| Breakdown Voltage | ≥2200V | 4884 | 4945 | 4769 |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
