| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.22mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.1mm 0.22mm 0.3mm Copper Enameled Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.22mm |
| Conductor Material: | Copper | Key Word: | 0.1mm 0.22mm 0.3mm Copper Enameled Winding Wire |
| High Light: | 0.1mm Copper Enameled Winding Wire,0.3mm Copper Enameled Winding Wire,0.22mm Copper Enameled Winding Wire |
||

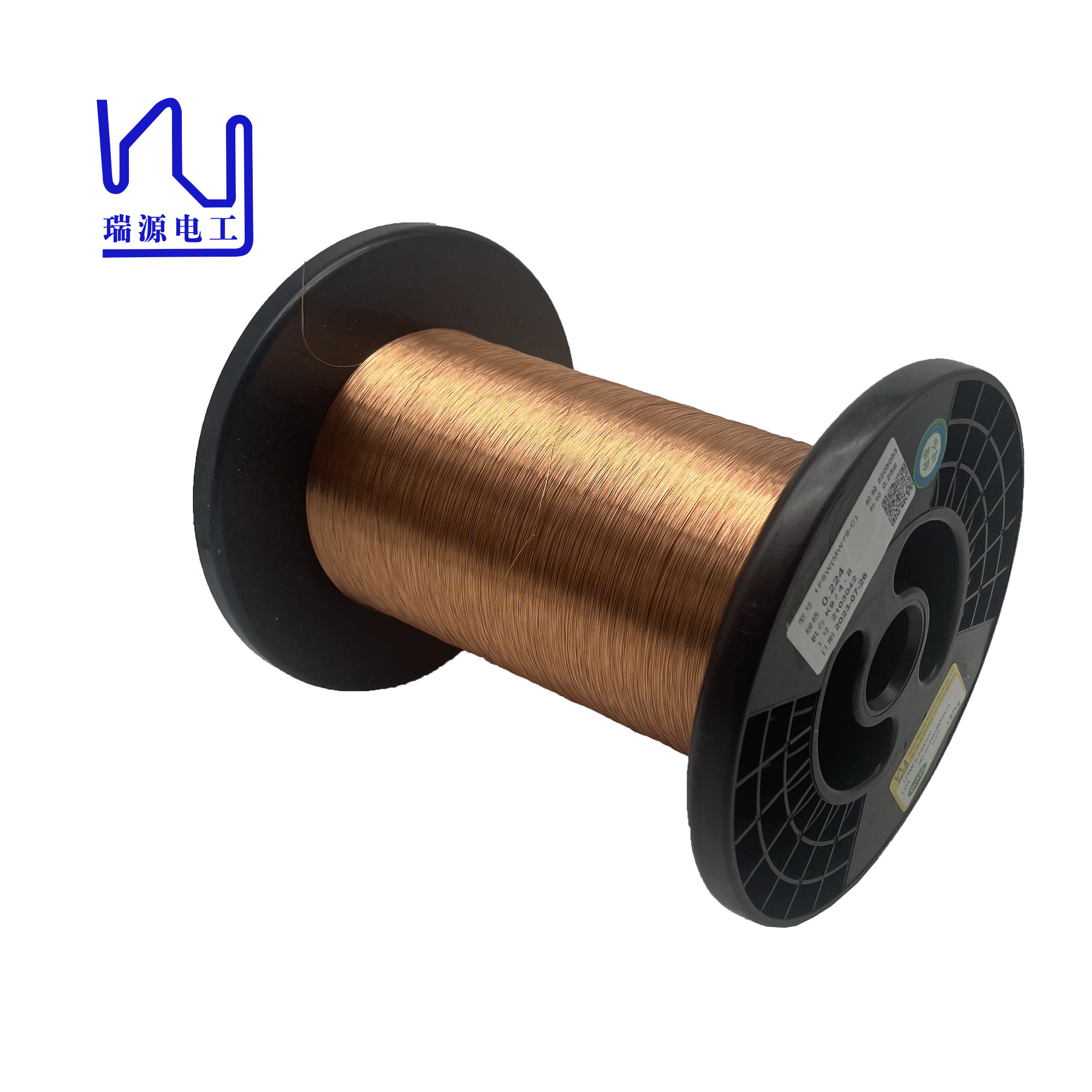

0.1mm 0.22mm 0.3mm Copper Enameled Winding Wire
For 0.22mm enameled copper wire, its wire diameter is thinner and is suitable for occasions with higher wire diameter requirements. At the same time, its temperature resistance of 155 degrees can meet the working requirements of general electrical equipment, and its good welding performance ensures the connection quality and stability of wires. We can also produce other specifications and types of enameled copper wire to meet the needs of different customers.
| Product |
2UEW155 0.22mm Solderable Enameled Copper Wire Solid Conductor |
|
Key word |
2UEW155 0.22mm Solderable Enameled Copper Wire Solid Conductor |
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.220mm ±0.003mm | 0.221 | 0.221 | 0.221 |
| Thickness of Insulation | ≥ 0.016 mm | 0.022 | 0.023 | 0.022 |
| Overall Diameter | ≤ 0.248mm | 0.243 | 0.244 | 0.243 |
| DC Resistance | ≤ 0.466 Ω/m | 0.4478 | 0.4452 | 0.4466 |
| Elongation | ≥21% | 26.3 | 24.8 | 25.2 |
| Breakdown Voltage | ≥2200V | 4884 | 4945 | 4769 |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
