| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.22mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.1mm 0.22mm 0.3mm Copper Enameled Winding WireSWG 34 SWG35 SWG36 Enameled Copper Wire For Transformer | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.22mm |
| Conductor Material: | Copper | Key Word: | SWG 34 SWG35 SWG36 Enameled Copper Wire For Transformer |
| High Light: | SWG 36 Enameled Copper Wire,SWG 35 Enameled Copper Wire,SWG 34 Enameled Copper Wire |
||

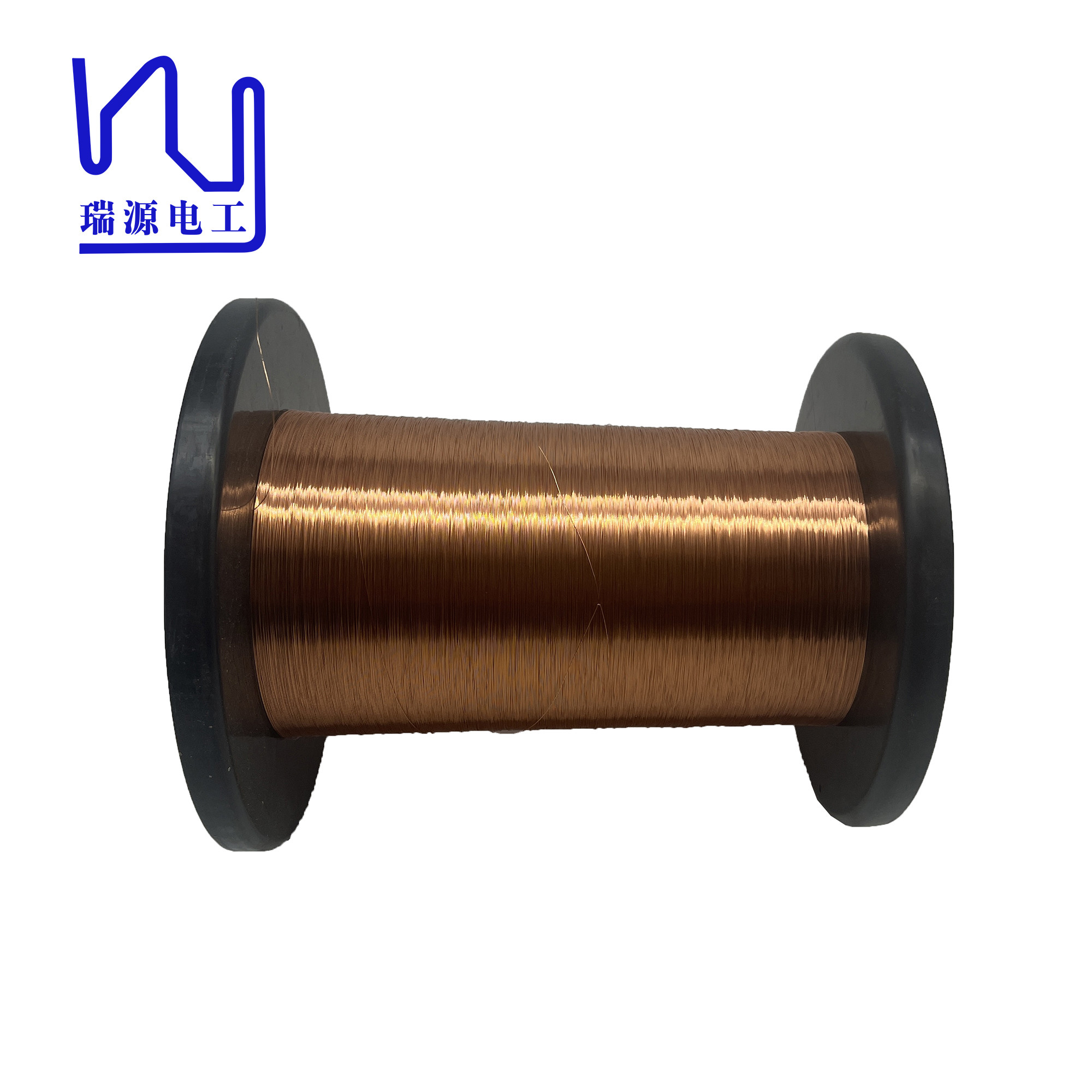

SWG 34 SWG35 SWG36 Enameled Copper Wire For Transformer
When selecting enameled copper wire, in addition to considering its heat resistance and welding performance, you also need to select the appropriate model according to the specific use environment and requirements. For example, a motor operating in a high-temperature environment may require enameled copper wire with greater heat resistance, while equipment operating in a humid environment may require enameled copper wire with better moisture resistance.
| Product |
SWG 34 SWG35 SWG36 Enameled Copper Wire For Transformer |
|
Key word |
SWG 34 SWG35 SWG36 Enameled Copper Wire For Transformer |
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.220mm ±0.003mm | 0.221 | 0.221 | 0.221 |
| Thickness of Insulation | ≥ 0.016 mm | 0.022 | 0.023 | 0.022 |
| Overall Diameter | ≤ 0.248mm | 0.243 | 0.244 | 0.243 |
| DC Resistance | ≤ 0.466 Ω/m | 0.4478 | 0.4452 | 0.4466 |
| Elongation | ≥21% | 26.3 | 24.8 | 25.2 |
| Breakdown Voltage | ≥2200V | 4884 | 4945 | 4769 |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
