| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.045mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Round Enameled Winding Wire Copper For Submersible Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.045mm |
| Conductor Material: | Copper | Key Word: | Round Enameled Winding Wire Copper For Submersible Motor |
| High Light: | UEW Copper Winding Wire,Round Copper Enameled Winding Wire,Enamelled Copper Wire |
||

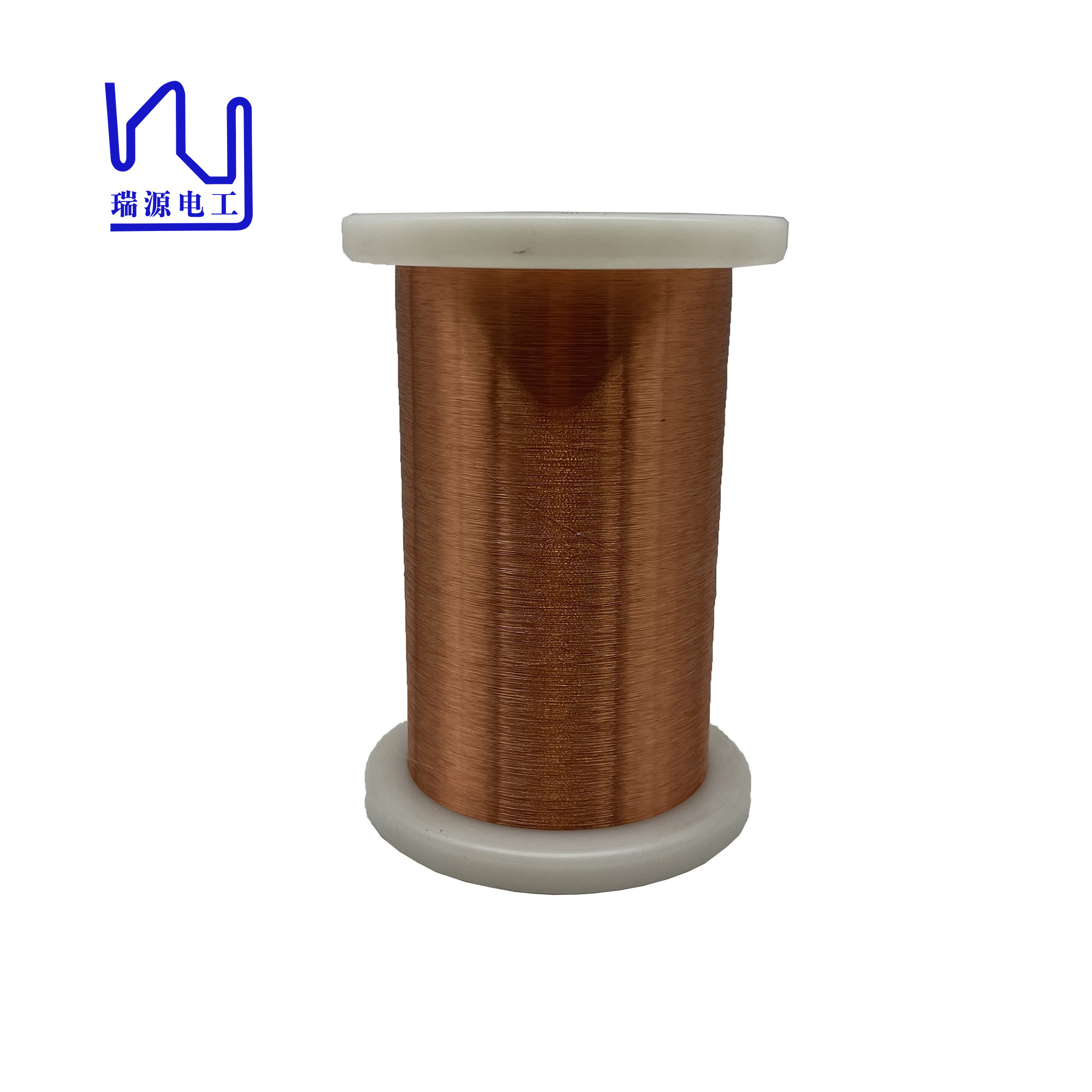

Round Enameled Winding Wire Copper for Submersible Motor
0.045mm ultra-fine enameled copper wire plays an important role in medical equipment. Its excellent conductive properties and insulation properties make it an ideal material for manufacturing micro electronic components and sensors. Through continuous technological innovation and quality control, more and more medical equipment manufacturers will choose ultra-thin enameled copper wire to improve product performance and reliability, thus making important contributions to the development of the medical industry.
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.045mm ±0.001mm | 0.0450 | 0.0450 | 0.0450 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0080 | 0.0090 |
| Overall Diameter | ≤ 0.056 mm | 0.0540 | 0.0530 | 0.0540 |
| DC Resistance | ≤ 11.339 Ω/m | 10.740 | 10.698 | 10.743 |
| Elongation | ≥ 11% | 22 | 20 | 21 |
| Breakdown Voltage | ≥350 V | 1764 | 1567 | 1452 |
| Pin Hole | ≤ 5(faults)/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
|
