| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.045mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW / 155 0.045mm Enamel Coated Magnet Wire , 0.012 - 0.8mm Generator Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.045mm |
| Conductor Material: | Copper | Key Word: | 2UEW / 155 0.045mm Enamel Coated Magnet Wire , 0.012 - 0.8mm Generator Copper Wire |
| High Light: | Generator Enamel Coated Magnet Wire,2UEW Enamel Coated Magnet Wire,0.8mm Generator Copper Wire |
||

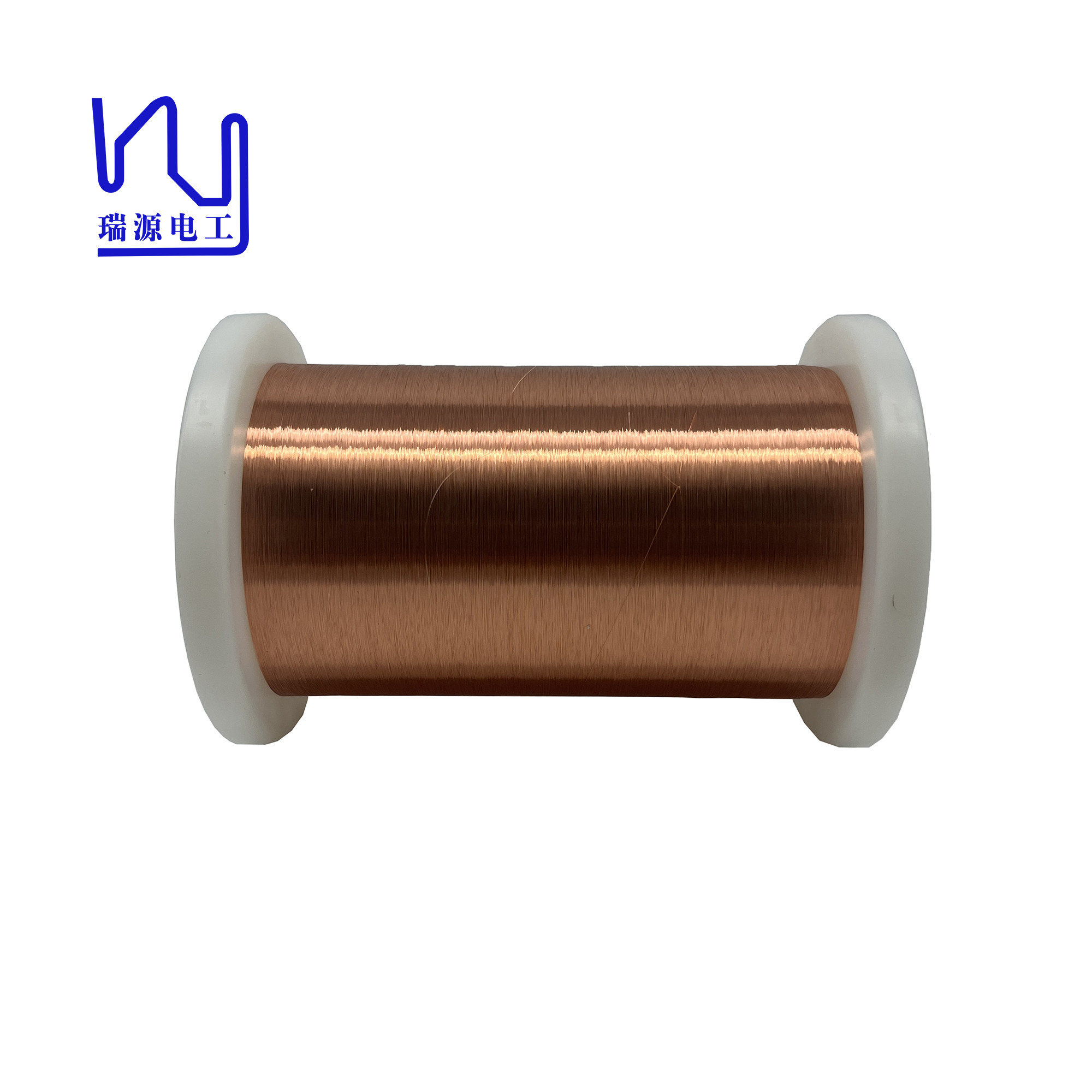

2UEW / 155 0.045mm Enamel Coated Magnet Wire , 0.012 - 0.8mm Generator Copper Wire
In medical equipment, this characteristic is crucial, because medical equipment often needs to operate stably for a long time under harsh environmental conditions, which requires extremely high reliability of electronic components and connectors.
| Test Items | Requirements | Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
| Conductor Diameter | 0.045mm ±0.001mm | 0.0450 | 0.0450 | 0.0450 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0080 | 0.0090 |
| Overall Diameter | ≤ 0.056 mm | 0.0540 | 0.0530 | 0.0540 |
| DC Resistance | ≤ 11.339 Ω/m | 10.740 | 10.698 | 10.743 |
| Elongation | ≥ 11% | 22 | 20 | 21 |
| Breakdown Voltage | ≥350 V | 1764 | 1567 | 1452 |
| Pin Hole | ≤ 5(faults)/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
|
