| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.28mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.28mm |
| Conductor Material: | Copper | Key Word: | 0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated |
| High Light: | Solid Conductor Insulated Enameled Copper Wire,0.3mm Enameled Copper Winding Wire,Class155 Enameled Copper Winding Wire |
||

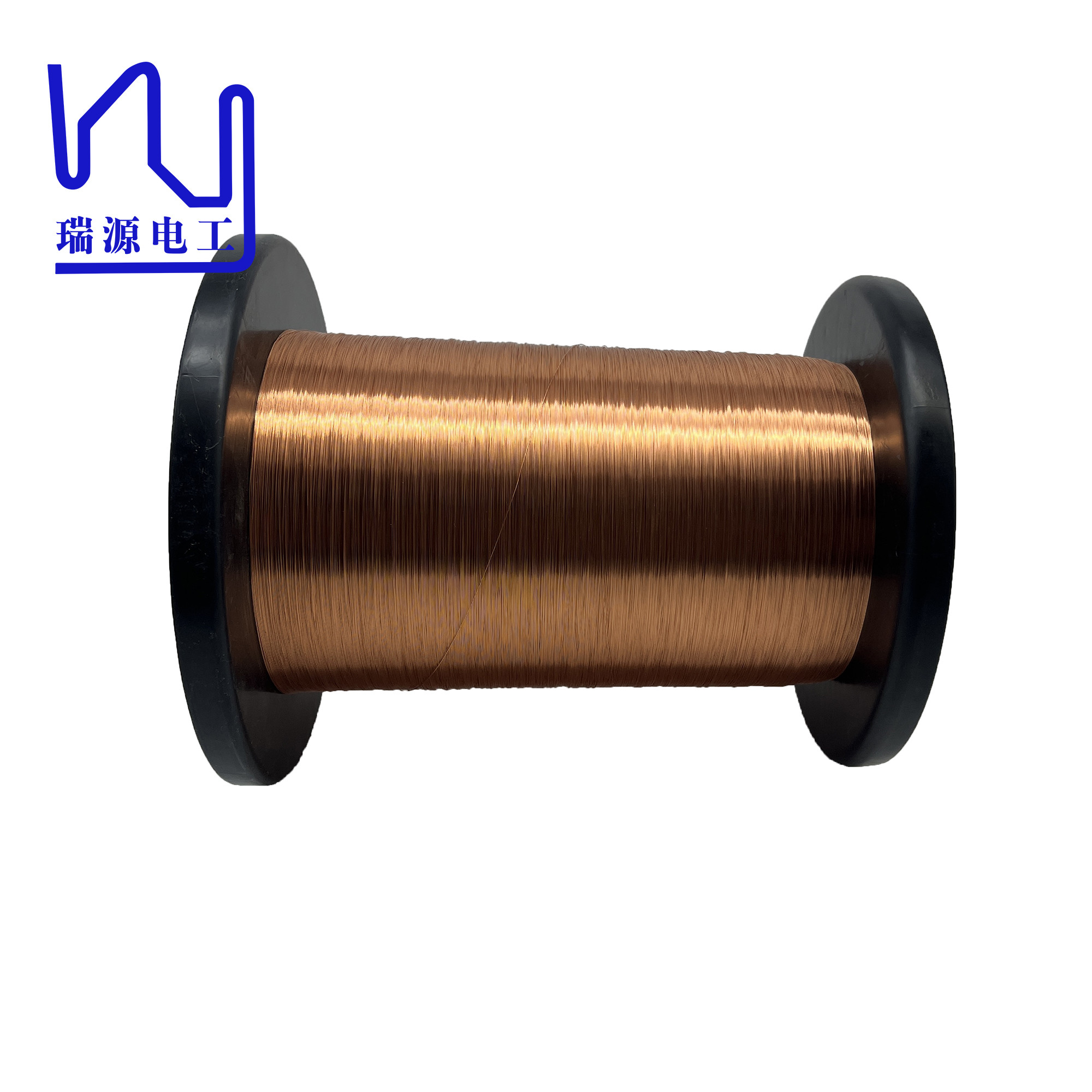

0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated
In the field of motor windings, enamelled copper wire plays a vital role in ensuring efficient and reliable performance. When wrapped around the stator and rotor core of a motor, it generates the electromagnetic field required for the motor to operate.
Copper's high electrical conductivity ensures minimal energy losses and optimal energy transfer within the motor, resulting in increased efficiency and lower operating costs.
| Product |
0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated |
|
Key word |
0.28mm 0.3mm Class155/180 Enameled Copper Winding Solid Conductor Insulated |
|
Test Items |
Requirements |
Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
|
Conductor Diameter |
0.280mm ±0.004mm |
0.281 |
0.281 |
0.281 |
| Thickness of Insulation | ≥ 0.025 mm | 0.031 | 0.030 | 0.030 |
| Overall Diameter | ≤ 0.316mm | 0.312 | 0.311 | 0.311 |
| DC Resistance | ≤ 0.288Ω/m | 0.2752 | 0.2766 | 0.2755 |
| Elongation | ≥ 23% | 34.7 | 32.2 | 33.5 |
| Breakdown Voltage | ≥2300V | 5552 | 5371 | 5446 |
| Pin Hole | ≤5(faults)/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
| Insulation Continuity | / | / | / | / |
