| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.28mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.28mm Class155 Enameled Copper Winding Wire For Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.28mm |
| Conductor Material: | Copper | Key Word: | 0.28mm Class155 Enameled Copper Winding Wire For Motor |
| High Light: | Motor Enameled Copper Winding Wire,Enameled Copper Winding Wire 0.28mm,Class155 Enamelled Copper Wire |
||

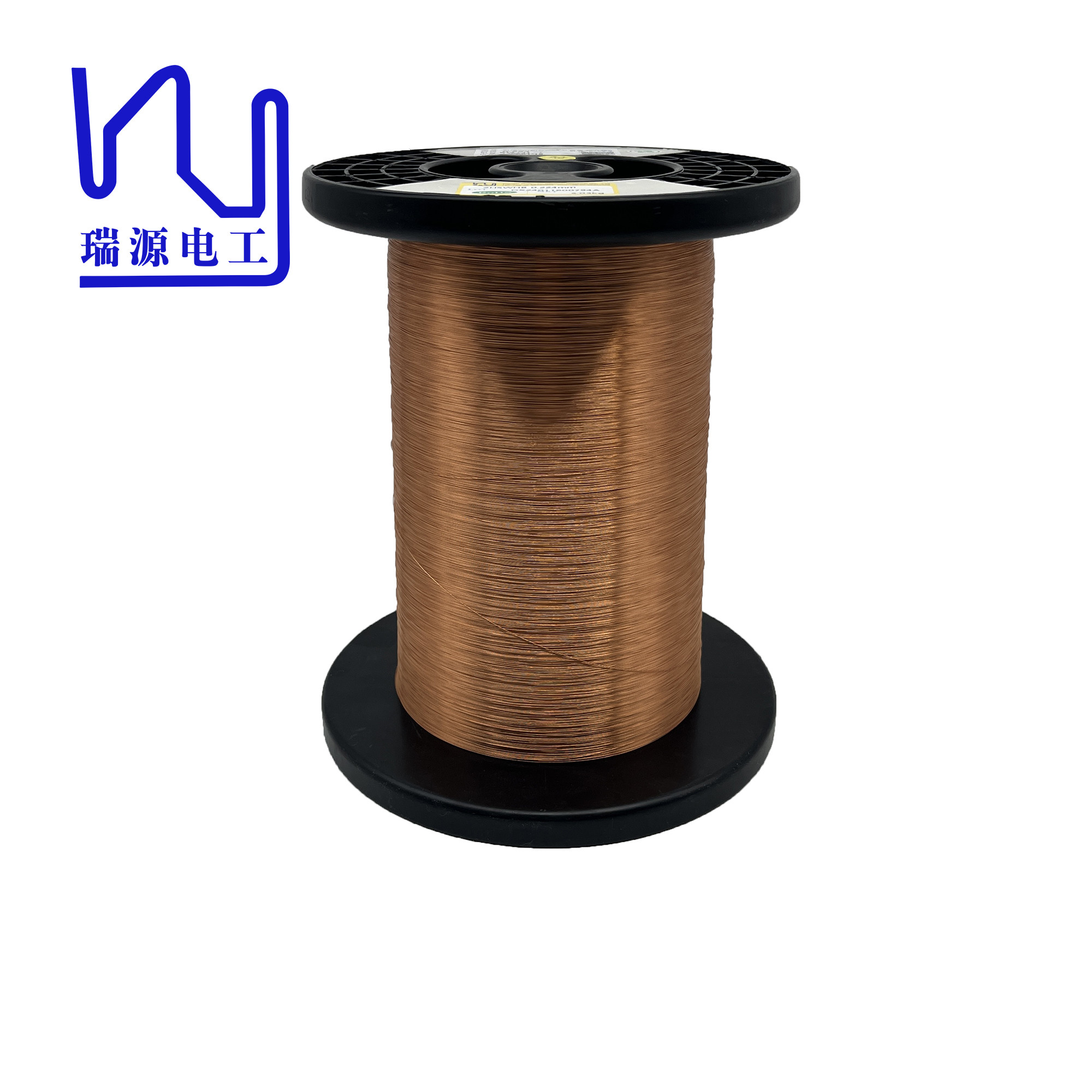

0.28mm Class155 Enameled Copper Winding Wire For Motor
Our enamelled copper wire has a diameter of 0.28mm and is an example of the high quality material we offer.
The wire is coated with a layer of UEW insulation, ensuring excellent insulation properties. Its heat resistance reaches 155 degrees Celsius, providing best-in-class thermal resistance, which is critical for the harsh conditions within motor windings.
| Product |
0.28mm Class155 Enameled Copper Winding Wire For Motor |
|
Key word |
0.28mm Class155 Enameled Copper Winding Wire For Motor |
|
Test Items |
Requirements |
Test Data | ||
| 1st Sample | 2nd Sample | 3rd Sample | ||
| Appearance | Smooth & Clean | OK | OK | OK |
|
Conductor Diameter |
0.280mm ±0.004mm |
0.281 |
0.281 |
0.281 |
| Thickness of Insulation | ≥ 0.025 mm | 0.031 | 0.030 | 0.030 |
| Overall Diameter | ≤ 0.316mm | 0.312 | 0.311 | 0.311 |
| DC Resistance | ≤ 0.288Ω/m | 0.2752 | 0.2766 | 0.2755 |
| Elongation | ≥ 23% | 34.7 | 32.2 | 33.5 |
| Breakdown Voltage | ≥2300V | 5552 | 5371 | 5446 |
| Pin Hole | ≤5(faults)/5m | 0 | 0 | 0 |
| Adherence | No cracks visible | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK |
| Insulation Continuity | / | / | / | / |
