| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | UL Certificated High Quality 39WG NEMA Copper Enameled Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | UL Certificated High Quality 39WG NEMA Copper Enameled Wire |
| High Light: | 0.09mm Enamelled Copper Wire,NEMA Copper Enameled Wire,UL Certificated Copper Enameled Wire |
||

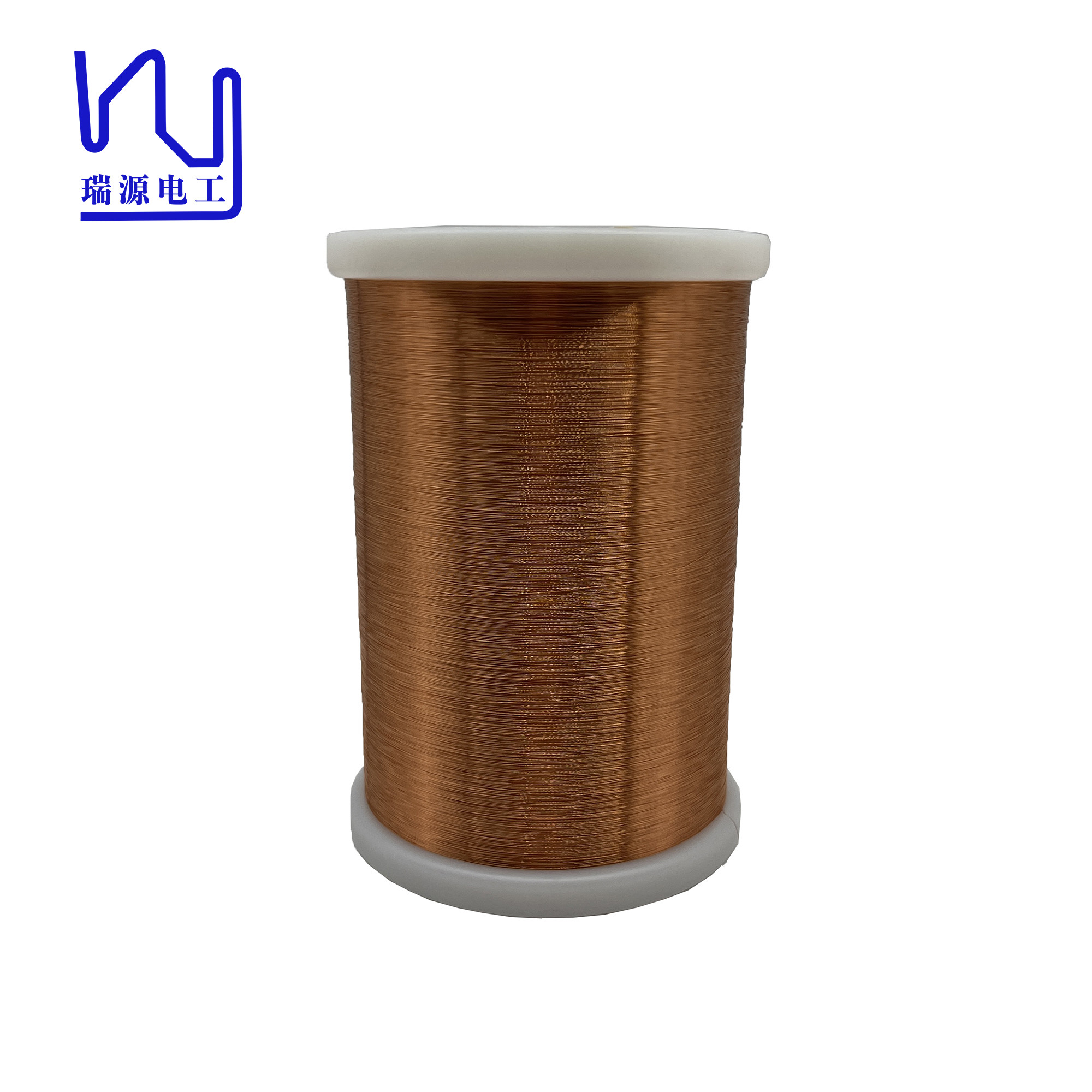

UL Certificated High Quality 39WG NEMA Copper Enameled Wire
Enameled copper wire is an important component in the production of microelectronic products because of its fine wire diameter, high temperature resistance, good insulation performance, and excellent conductivity. Its versatility and reliability make it the first choice for manufacturers of small electronic equipment.
As the demand for smaller, more powerful electronics continues to grow, enamelled copper wire will undoubtedly remain a staple in microelectronics.
| Product |
UL Certificated High Quality 39WG NEMA Copper Enameled Wire |
|
Key word |
UL Certificated High Quality 39WG NEMA Copper Enameled Wire |
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
1st Sample |
2nd Sample |
3rd Sample |
||||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
|
Conductor Diameter |
0.090± |
0.002 |
0.090 |
0.090 |
0.090 |
OK |
|
Thickness of Insulation |
≥ 0.010 mm |
0.013 |
0.012 |
0.013 |
OK |
|
|
Overall Diameter |
≤ 0.107 mm |
0.103 |
0.102 |
0.103 |
OK |
|
|
DC Resistance |
≤ 2.835Ω/m |
2.702 |
2.729 |
2.716 |
OK |
|
|
Elongation |
≥ 17 % |
22.5 |
23.4 |
21.9 |
OK |
|
|
Breakdown Voltage |
≥ 700 V |
2081 |
2143 |
1986 |
OK |
|
|
Pin Hole |
≤ 5 Faults/5m |
0 |
0 |
0 |
OK |
|
|
Continuity |
≤12Faults/30m |
0 |
0 |
0 |
OK |
|
|
Test Items |
Technical Requests |
Results |
||||
|
Adhesive |
Coating layer is good |
OK |
||||
|
Cut-through |
200℃ 2mins no breakdown |
OK |
||||
|
Heat Shock |
175±5℃/30min no crack |
OK |
||||
|
Solder Ability |
390± 5℃ 2Sec Smooth |
OK |
||||
