| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.28mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155 0.28mm Copper Enameled Winding Wire For Transformer/ Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.28mm |
| Conductor Material: | Copper | Key Word: | 2UEW155 0.28mm Copper Enameled Winding Wire For Transformer/ Motor |
| High Light: | Motor Copper Enameled Wire,0.28mm Copper Enameled Winding Wire,Transformer Copper Enamelled Winding Wire |
||

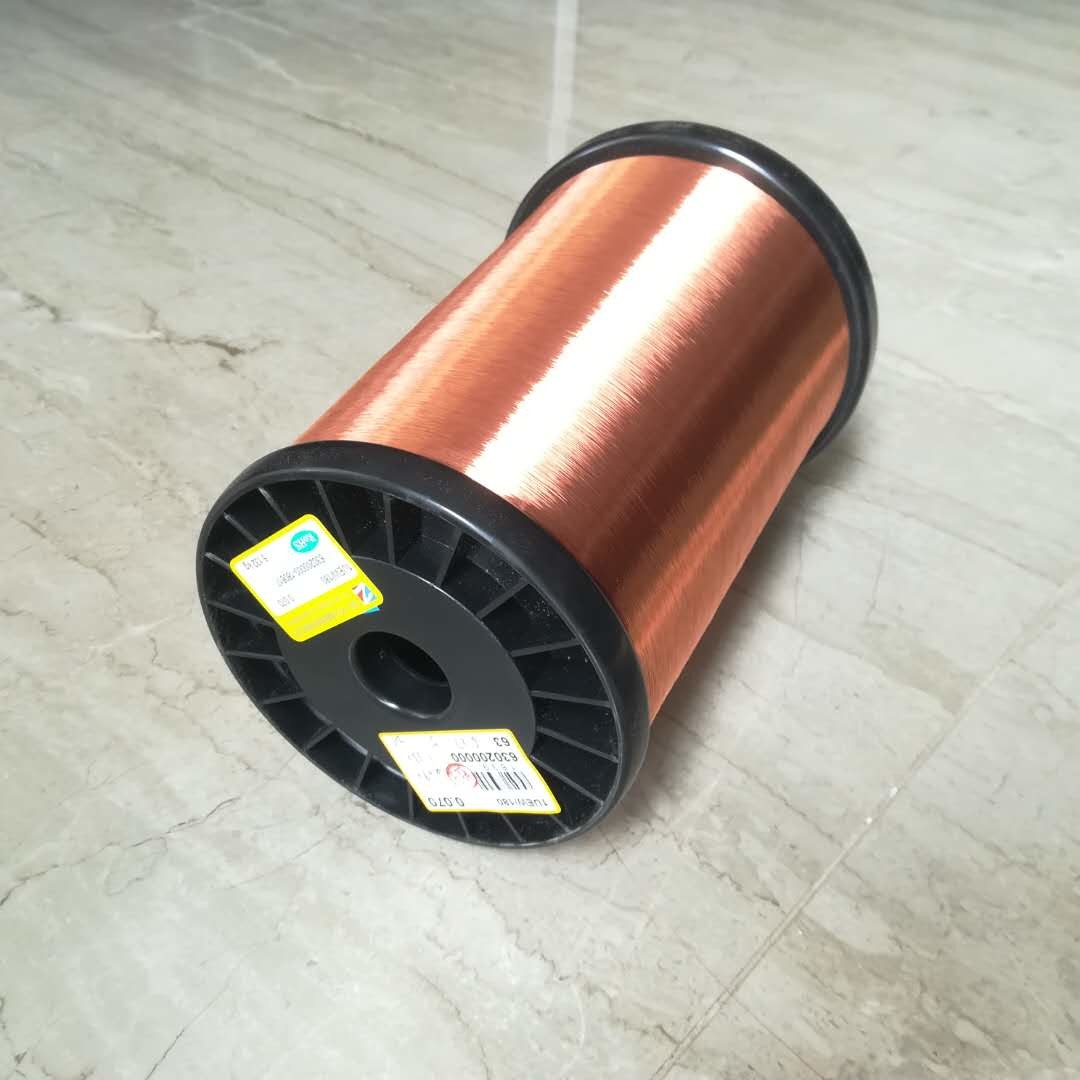

2UEW155 0.28mm Copper Enameled Winding Wire For Transformer/ Motor
0.28mm enameled wire is usually suitable for high frequency transformer windings. Due to its small diameter and good insulation properties, this enameled wire is ideally suited for use in the manufacture of high-frequency transformers. In high-frequency circuits, the insulating layer of enameled wire can effectively reduce current loss and magnetic coupling loss, and improve the efficiency and performance of the transformer.
Therefore, 0.28mm enameled wire can achieve better electrical characteristics and stability in high-frequency transformer windings, and is suitable for applications in various high-frequency electronic equipment and communication equipment.
| Product |
2UEW155 0.28mm Copper Enameled Winding Wire For Transformer/ Motor |
|
Key word |
2UEW155 0.28mm Copper Enameled Winding Wire For Transformer/ Motor |
|
Test Items |
Requirements |
Test Data |
Result |
|||
| 1st Sample | 2nd Sample | 3rd Sample | ||||
| Appearance | Smooth & Clean | OK | OK | OK | OK | |
|
Conductor Diameter |
0.280mm ± |
0.004mm |
0.281 |
0.281 |
0.281 |
OK |
| Thickness of Insulation | ≥ 0.025 mm | 0.031 | 0.030 | 0.030 | OK | |
| Overall Diameter | ≤ 0.316mm | 0.312 | 0.311 | 0.311 | OK | |
| DC Resistance | ≤ 0.288Ω/m | 0.2752 | 0.2766 | 0.2755 | OK | |
| Elongation | ≥ 23% | 34.7 | 32.2 | 33.5 | OK | |
| Breakdown Voltage | ≥2300V | 5552 | 5371 | 5446 | OK | |
| Pin Hole | ≤5(faults)/5m | 0 | 0 | 0 | OK | |
| Adherence | No cracks visible | OK | OK | OK | OK | |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK | OK | |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | OK | |
| Insulation Continuity | / | / | / | / | / | |
