| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.04mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.04mm |
| Conductor Material: | Copper | Key Word: | 2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire |
| Type: | 2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire | ||
| High Light: | 2uewf enamelled copper wire,46 awg enamelled copper wire,super thin 46 awg magnet wire |
||

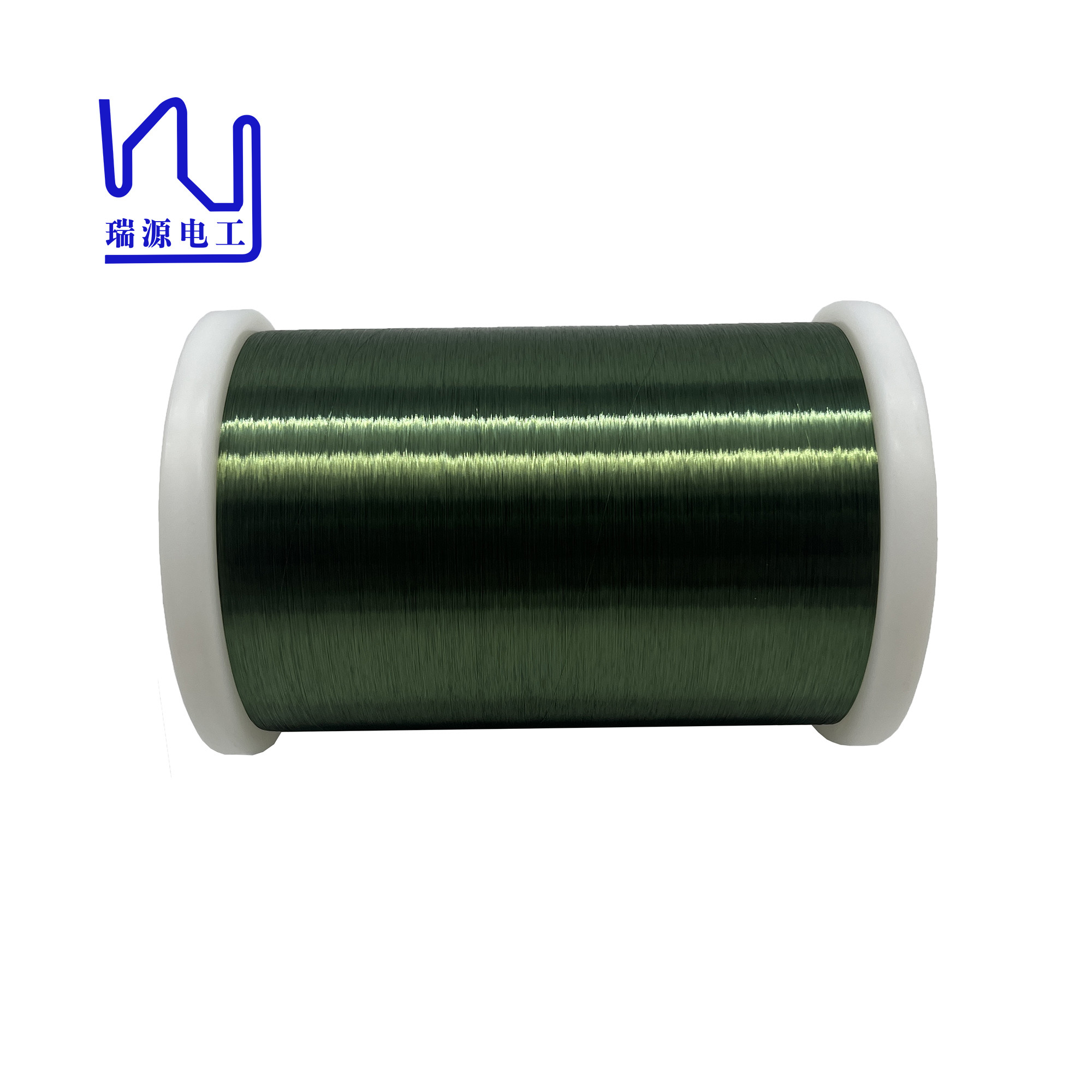

2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire
Advantages:
In the field of information transmission, green enameled copper wire is widely used in the internal connection and signal transmission of various electronic equipment. Its unique green appearance makes identification easier and clearer during equipment maintenance and troubleshooting. Compared with other ordinary wires, the green enameled copper wire looks distinctive, and users can easily distinguish it from other wires, thereby improving work efficiency. The paint film of this enameled copper wire is made of polyurethane, which gives it excellent solderability.
| Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.040mm ± | 0.001mm | 0.0400 | 0.0400 | 0.0400 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0100 | 0.0090 | |
| Overall Diameter | ≤ 0.052 mm | 0.0490 | 0.0500 | 0.0490 | |
| DC Resistance | ≤ 14.433 Ω/m | 13.799 | 13.793 | 13.785 | |
| Elongation | ≥ 11% | 18 | 20 | 19 | |
| Breakdown Voltage | ≥325 V | 989 | 1302 | 1176 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
|
Name |
2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire |
|
Key word |
2UEWF 46 AWG 0.04mm Super Thin Colored Copper Enameled Winding Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.04mm |
