| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.04mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor |
| Type: | 2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor | ||
| High Light: | enamelled copper wire 0.04 mm,enamelled copper wire for motor,0.04mm enamel coated magnet wire |
||

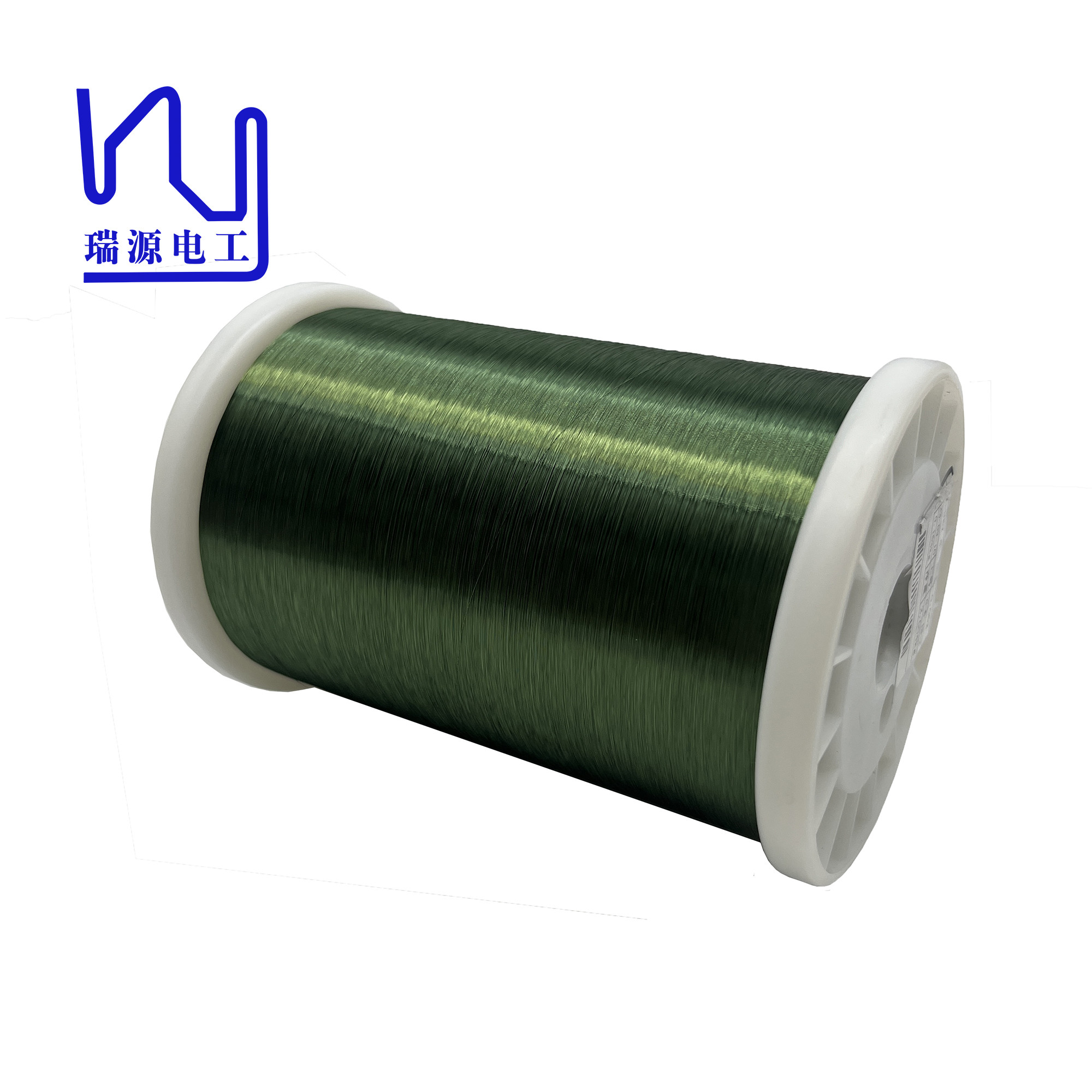

2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor
The enameled copper wire produced by our company has many advantages in the field of information transmission, bringing excellent performance and reliability to the fields of electronic equipment manufacturing and communications. Most of the enameled wires we produce are copper in color, but this specially customized green enameled copper wire is very popular.
| Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.040mm ± | 0.001mm | 0.0400 | 0.0400 | 0.0400 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0100 | 0.0090 | |
| Overall Diameter | ≤ 0.052 mm | 0.0490 | 0.0500 | 0.0490 | |
| DC Resistance | ≤ 14.433 Ω/m | 13.799 | 13.793 | 13.785 | |
| Elongation | ≥ 11% | 18 | 20 | 19 | |
| Breakdown Voltage | ≥325 V | 989 | 1302 | 1176 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
|
Name |
2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor |
|
Key word |
2UEWF/H 0.04mm Green Color Super Thin Magnet Wire Enameled Copper Wire For Motor |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
