| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155/180 Costom Super Thin Multi Color Enameled Copper Wire For Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 2UEW155/180 Costom Super Thin Multi Color Enameled Copper Wire For Motor |
| Type: | 2UEW155/180 Costom Super Thin Multi Color Enameled Copper Wire For Motor | ||
| High Light: | self bonding enamel coated magnet wire,enamel coated magnet wire super thin,enamel coated self bonding copper wire |
||

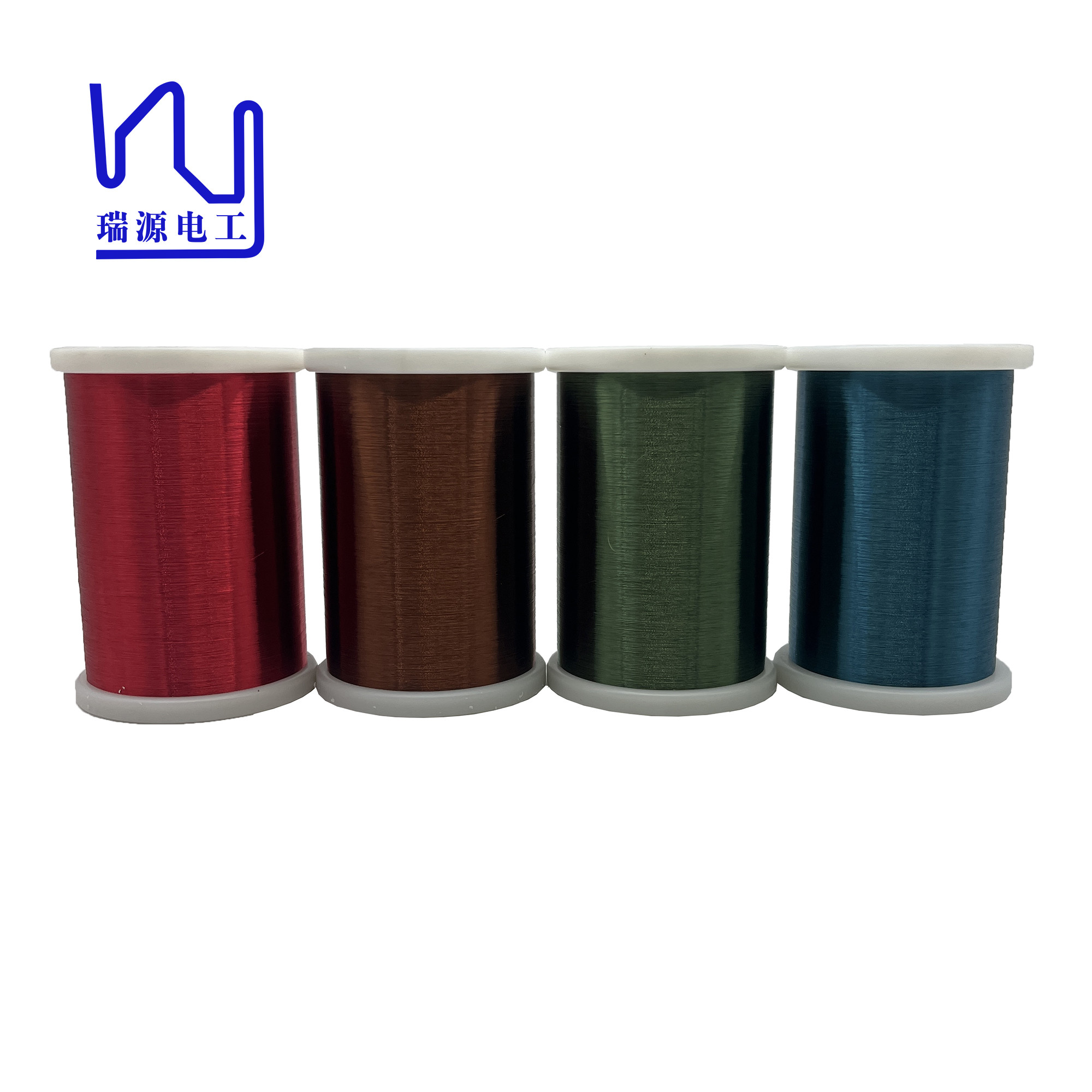

2UEW155/180 Costom Super Thin Multi Color Enameled Copper Wire For Motor
The temperature resistance level of our green enameled copper wire reaches 155 degrees, which enables it to work safely and reliably under high temperature conditions. In some special scenarios, temperature resistance is crucial, and our enameled copper wire can meet this requirement. Users can use it with confidence without worrying about signal transmission problems caused by high temperature to ensure the normal operation of the equipment.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid |
|
Key word |
0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
