| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW 155 0.08mm Brown Color Magnetic Copper Wire Enameled Wire For Winding | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 2UEW 155 0.08mm Brown Color Magnetic Copper Wire Enameled Wire For Winding |
| Type: | 2UEW 155 0.08mm Brown Color Magnetic Copper Wire Enameled Wire For Winding | ||
| High Light: | 2uew 155 enamelled copper wire,enamelled copper wire 0.08 mm,winding enameled copper magnet wire |
||

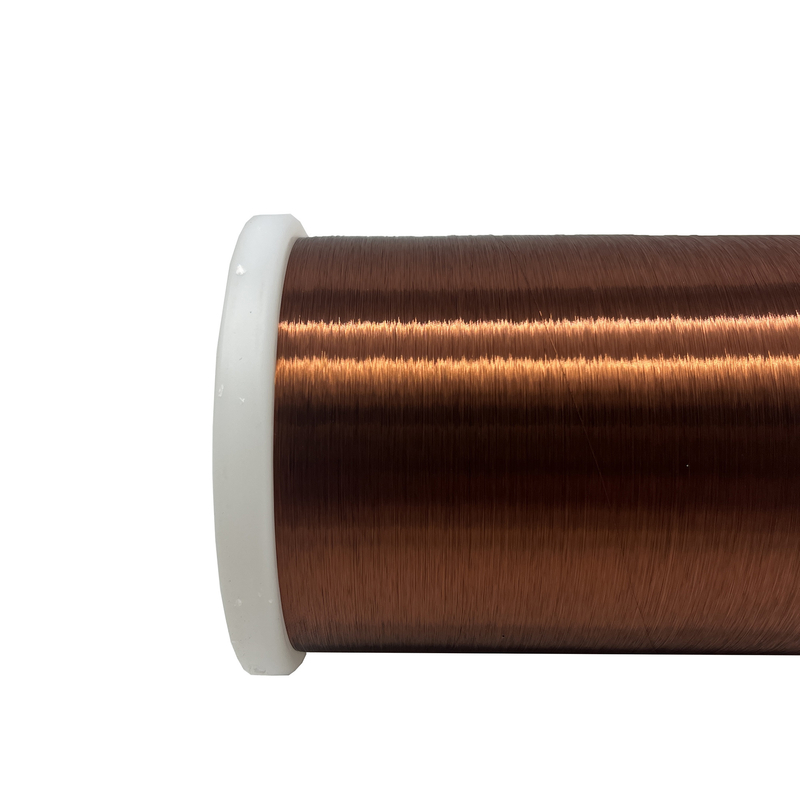

2UEW 155 0.08mm Brown Color Magnetic Copper Wire Enameled Wire For Winding
We provide you with high-quality products, flexible customization options, and professional services to ensure you get the best solutions in electronic equipment manufacturing. Feel free to contact us and let us provide customized solutions for your special needs.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
2UEW 155 0.08mm Brown Color Magnetic Copper Wire Enameled Wire For Winding |
|
Key word |
2UEW 155 0.08mm Brown Color Magnetic Copper Wire Enameled Wire For Winding |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
