| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom 0.08mm Polyurethane Coated Solderable Enameled Copper Wire Extra Fine | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | Custom 0.08mm Polyurethane Coated Solderable Enameled Copper Wire Extra Fine |
| Type: | Custom 0.08mm Polyurethane Coated Solderable Enameled Copper Wire Extra Fine | ||
| High Light: | polyurethane coated enamelled copper wire,extra fine enamelled copper wire,solderable 0.08mm enamelled copper wire |
||

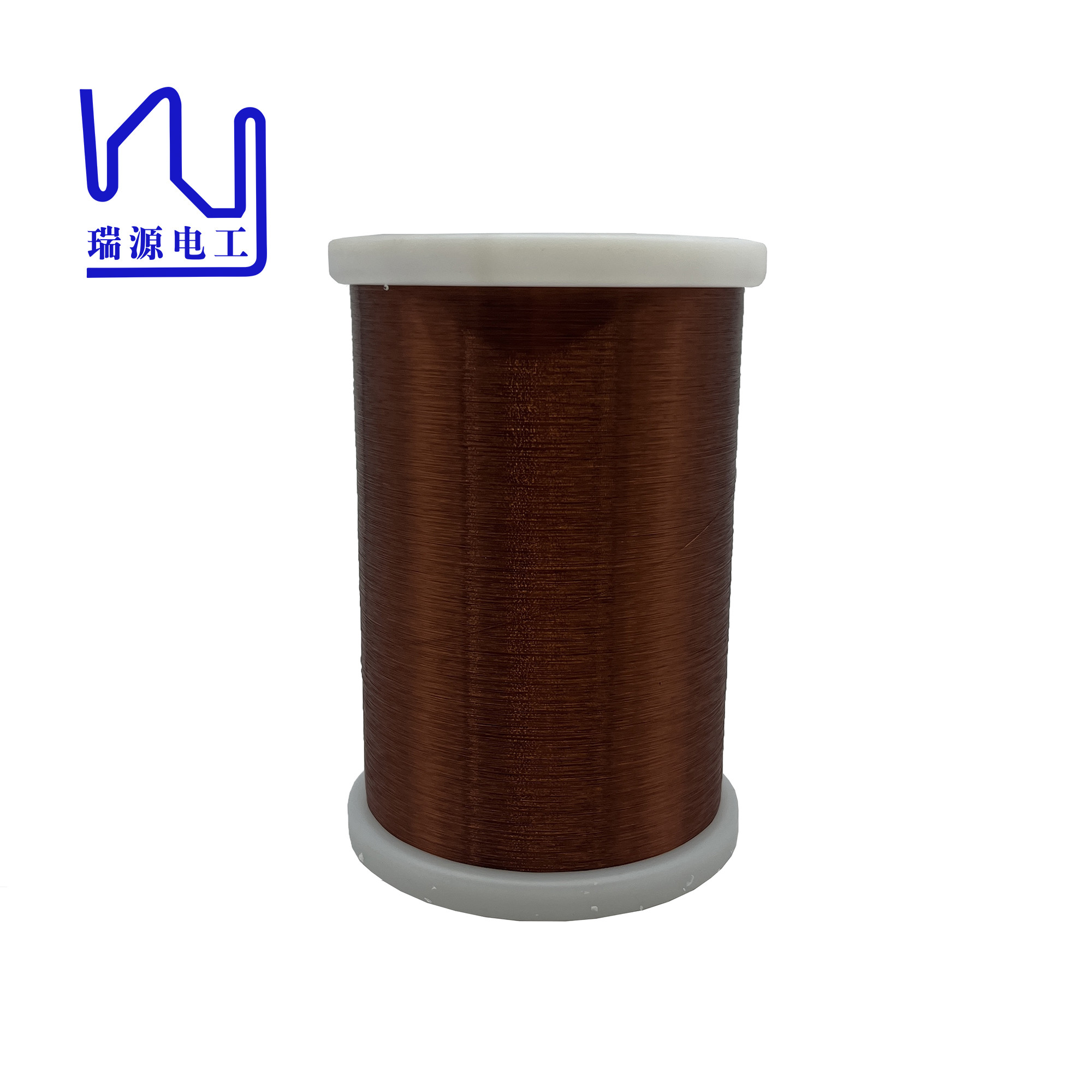

Custom 0.08mm Polyurethane Coated Solderable Enameled Copper Wire Extra Fine
This enameled copper wire is a weldable, ensuring its stability and reliability in the connection process of electronic components. Its paint film composition uses high-quality polyurethane enamel, which ensures the insulation effect and durability of the cable.
| Characteristics | Technical requests | Test Results | |
| Sample 1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.080±0.002 | 0.45 | 0.45 |
| Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 |
| Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 |
| Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 |
| Elongation | ≥ 16 % | 19 | 19 |
| Breakdown Voltage | ≥ 425 V | 1578 | 1496 |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 |
| Continuity | ≤ 40 holes/30m | 0 | 0 |
| Test Items | Technical Requests | Results | |
| Adhesive | Coating layer is good | OK | |
| Cut-through | 200℃ 2minsno breakdown | OK | |
| Heat Shock | 175±5℃/30minno crack | OK | |
| Solder Ability | 390± 5℃ 2SecNo blister, no expansion, no shed | OK | |
|
Name |
Custom 0.08mm Polyurethane Coated Solderable Enameled Copper Wire Extra Fine |
|
Key word |
Custom 0.08mm Polyurethane Coated Solderable Enameled Copper Wire Extra Fine |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.08mm |
