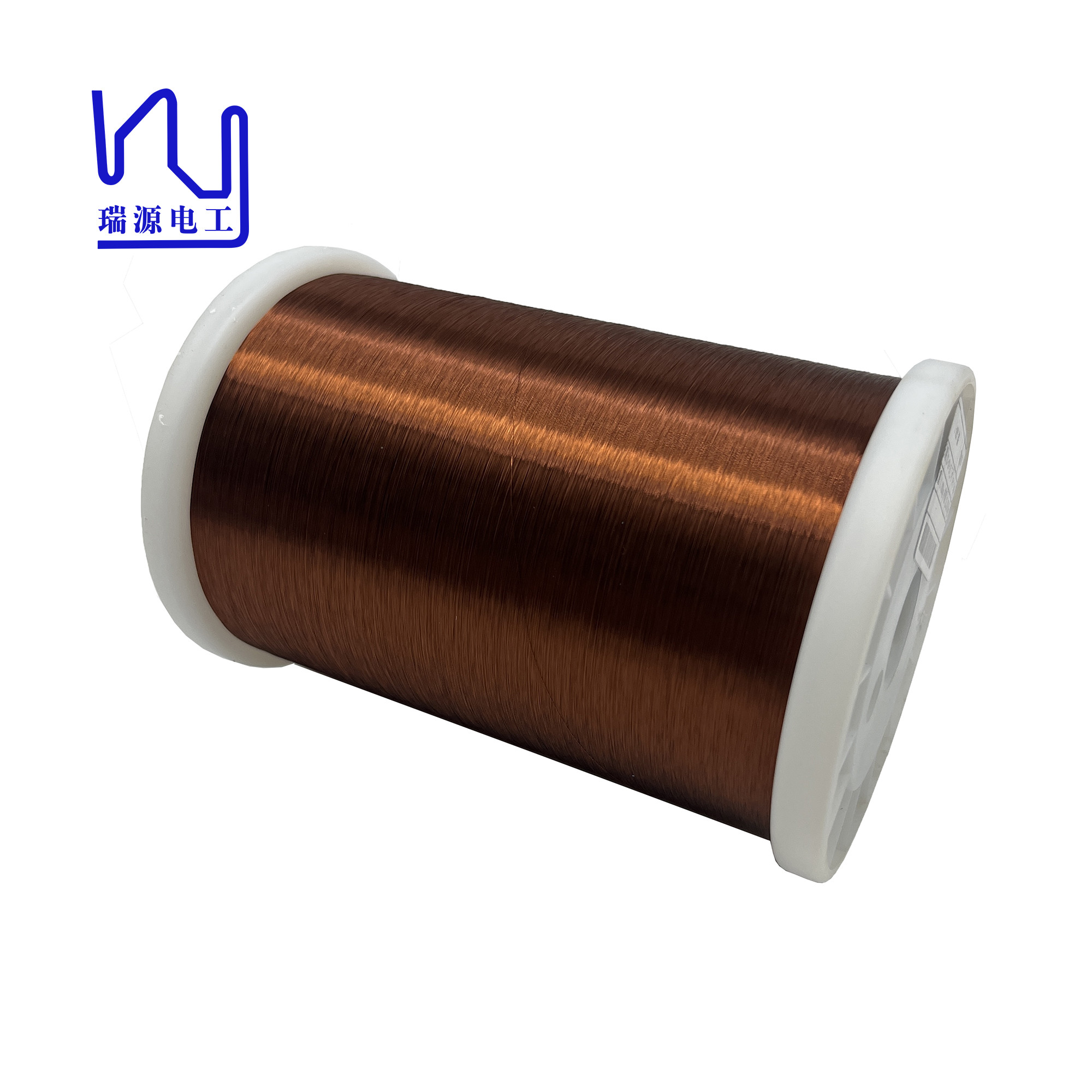

Product Name:	2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid	Thermal Rating:	155
Insulation Material:	Polyurethane	Diameter:	0.08mm
Conductor Material:	Copper	Key Word:	2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid
Type:	2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid
High Light:	enamel coated magnet wire 40 awg , enamel coil wire 0.08mm , 40 awg copper wire with enamel

Characteristics	Technical requests	Test Results
		Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.080±0.002	0.45	0.45
Coating Thickness	≥ 0.008 mm	0.011	0.012
Overall Diameter	≤ 0.094 mm	0.091	0.092
Conductor Resistance	≤ 3.608 Ω/m	3.456	3.443
Elongation	≥ 16 %	19	19
Breakdown Voltage	≥ 425 V	1578	1496
Pinhole Test	≤ 5 holes/5m	0	0
Continuity	≤ 40 holes/30m	0	0
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2minsno breakdown	OK
Heat Shock	175±5℃/30minno crack	OK
Solder Ability	390± 5℃ 2SecNo blister, no expansion, no shed	OK

Name	AWG 44 Gauge Class 155 Super Thin Enamled Copper Wire For Watch Coil
Key word	AWG 44 Gauge Class 155 Super Thin Enamled Copper Wire For Watch Coil
Insulationh	Enamel
Thermal rating	155
Diameter of the enameled copper wire	0.05mm

2uew155 40 Awg Enamel Coil Wire 0.08mm Brown Color Motor Winding Insulated Solid

enamel coated magnet wire 40 awg
