| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | 2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid |
| Type: | 2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid | ||
| High Light: | 2uew155 enamel insulated copper wire,0.05mm enamel insulated copper wire,motor winding enamel insulated wire |
||

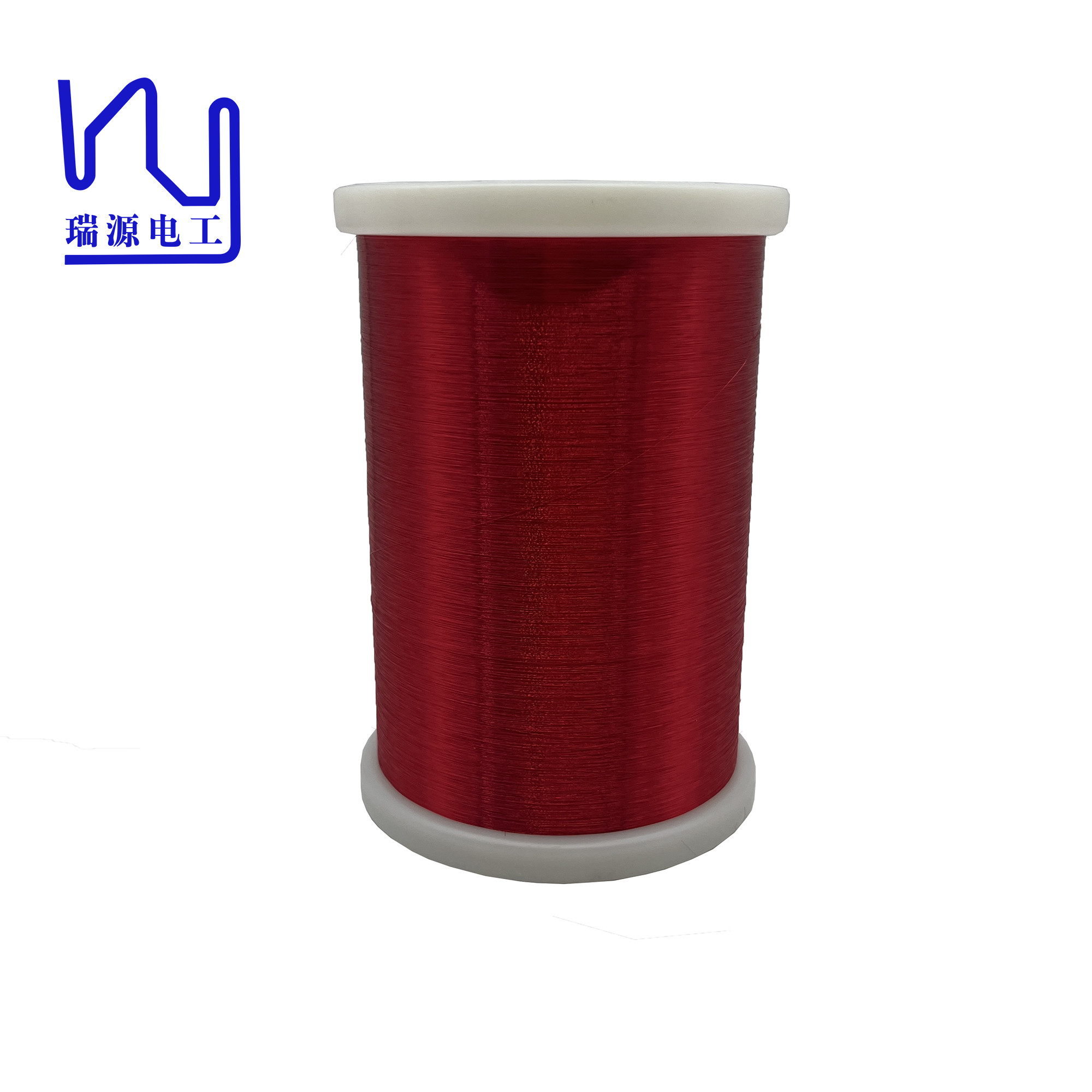

2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid
If you are interested in our 0.05mm enameled copper wire or have any questions, please feel free to contact us.
Our team will do their best to help you solve your problem and provide the most suitable solution. We look forward to cooperating with you to grow and develop together. Thanks!
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid |
|
Key word |
2UEW155 0.05mm Red / Blue Color Motor Winding Insulated Copper Wire Solid |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
