| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.06mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AWG 42.5 Colored Blue 0.06mm Insulated Enameled Copper Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.06mm |
| Conductor Material: | Copper | Key Word: | AWG 42.5 Colored Blue 0.06mm Insulated Enameled Copper Winding Wire |
| Type: | Solderable | ||
| High Light: | awg 42.5 enameled copper winding wire,colored blue enameled copper winding wire,copper winding wire 42.5 awg |
||

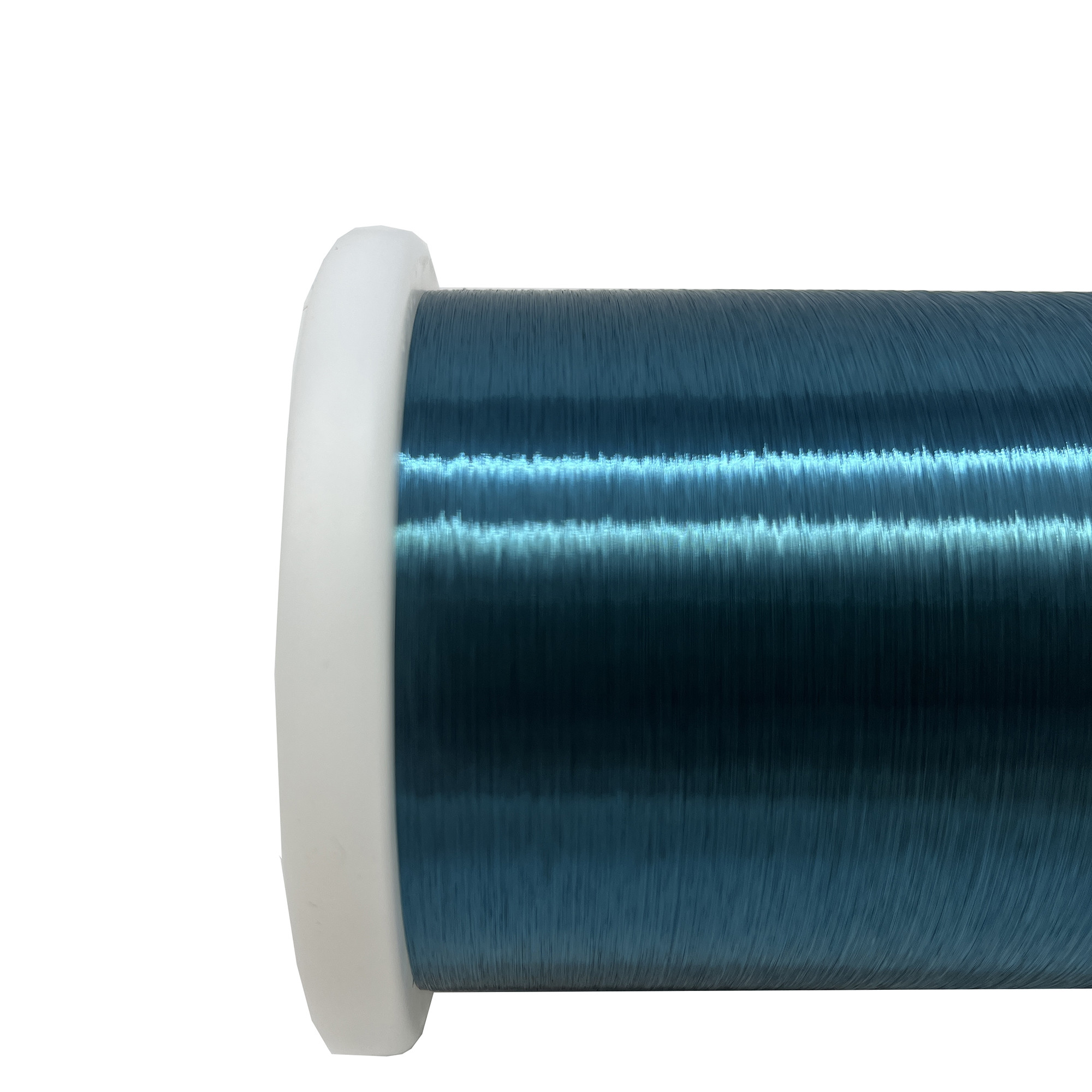

AWG 42.5 Colored Blue 0.06mm Insulated Enameled Copper Winding Wire
The enameled copper wire can be directly welded on the circuit board or other equipment without additional processing or connection measures, which is convenient and fast.
We provide enameled copper wire in a variety of colors to meet customers' individual needs, such as red, blue, pink, etc., to help with identification and connection work.If you have further questions or needs about our products, please feel free to contact our team. Our professional team will be happy to provide you with support and assistance.
| Test Items | Requirements | Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.060mm ± | 0.002mm | 0.0600 | 0.0600 | 0.0600 |
| Thickness of Insulation | ≥ 0.008mm | 0.0120 | 0.0120 | 0.0110 | |
| Overall Diameter | ≤ 0.074mm | 0.0720 | 0.0720 | 0.0710 | |
| DC Resistance | ≤6.415 Ω/m | 6.123 | 6.116 | 6.108 | |
| Elongation | ≥ 14% | 21.7 | 20.3 | 22.6 | |
| Breakdown Voltage | ≥500V | 1725 | 1636 | 1863 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | ≤ 60(faults)/30m | 0 | 0 | 0 | |
|
Name |
AWG 42.5 Colored Blue 0.06mm Insulated Enameled Copper Winding Wire |
|
Key word |
AWG 42.5 Colored Blue 0.06mm Insulated Enameled Copper Winding Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.06mm |
