| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.13mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | TIW-B 0.32mm TEX-E Triple Insulated Wire For TransformerROHS2.0 TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.32mm |
| Conductor Material: | Copper | Key Word: | ROHS2.0 TIW-B 0.13mm Class 130 Triple Insulated Wire For Switching Transformer |
| High Light: | self bonding triple insulated wire,class 130 triple insulated wire,class 130 triple insulated magnet wire |
||

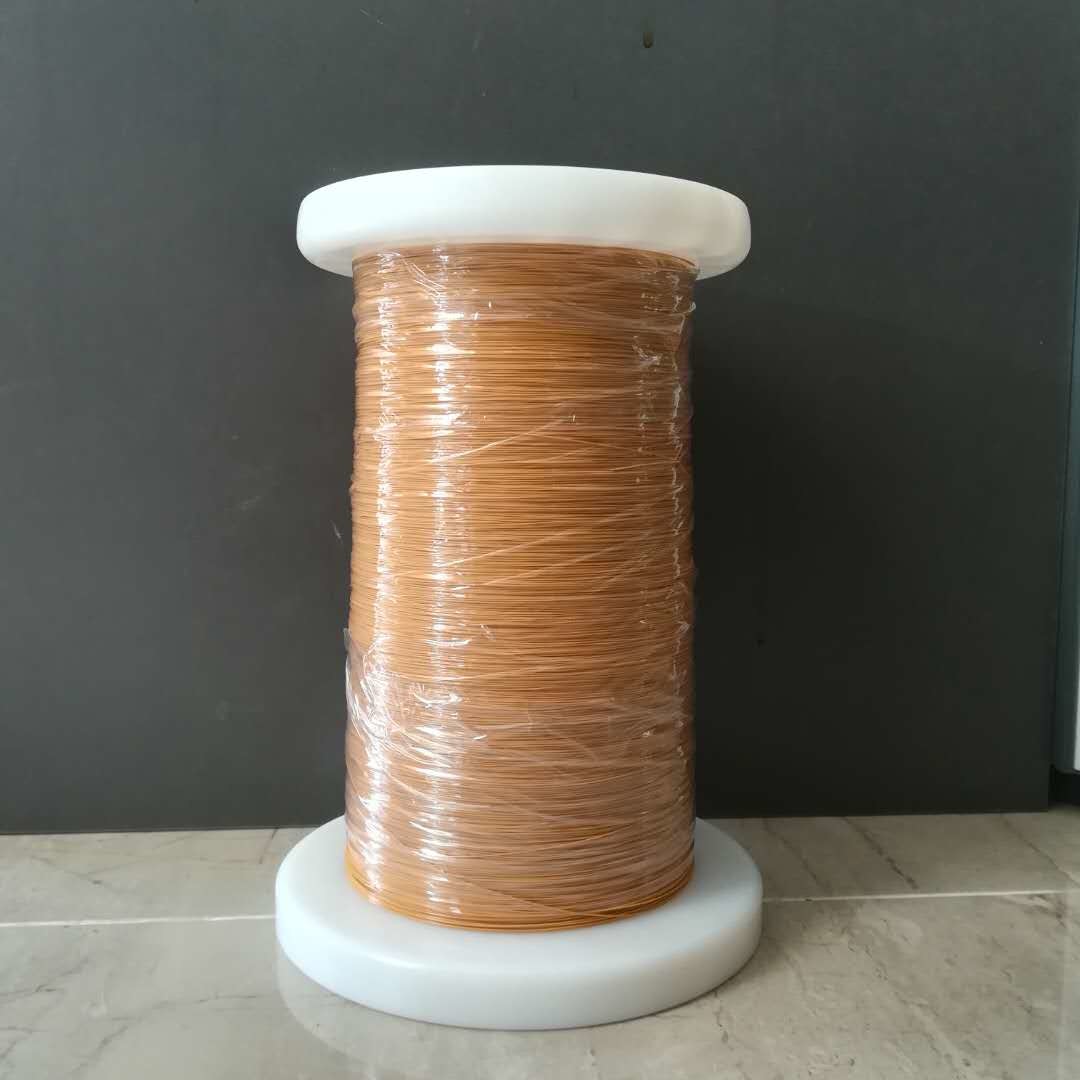

ROHS2.0 TIW-B 0.13mm Class 130 Triple Insulated Wire for Switching Transformer
One of the advantages of this wire is its high dielectric strength. Any two insulating layers can withstand a safe voltage of 3000V AC, so there is no need to add an additional barrier layer to ensure a safe margin, and there is no need to wrap an insulating tape layer between layers. In addition, triple insulated wire has a larger current density. By using this wire to wind a high-frequency transformer, the volume is reduced by half.
