| Product Name: | TIW-B 0.16mm Triple Insulated Wire Insulated Solid | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW/ | Diameter: | 0.16mm |
| Conductor Material: | Copper | Key Word: | TIW-B 0.16mm Triple Insulated Wire Insulated Solid |
| High Light: | Copper TIW Wire,Triple Insulated Wire 0.16mm,Insulated Solid Triple Insulated Wire |
||

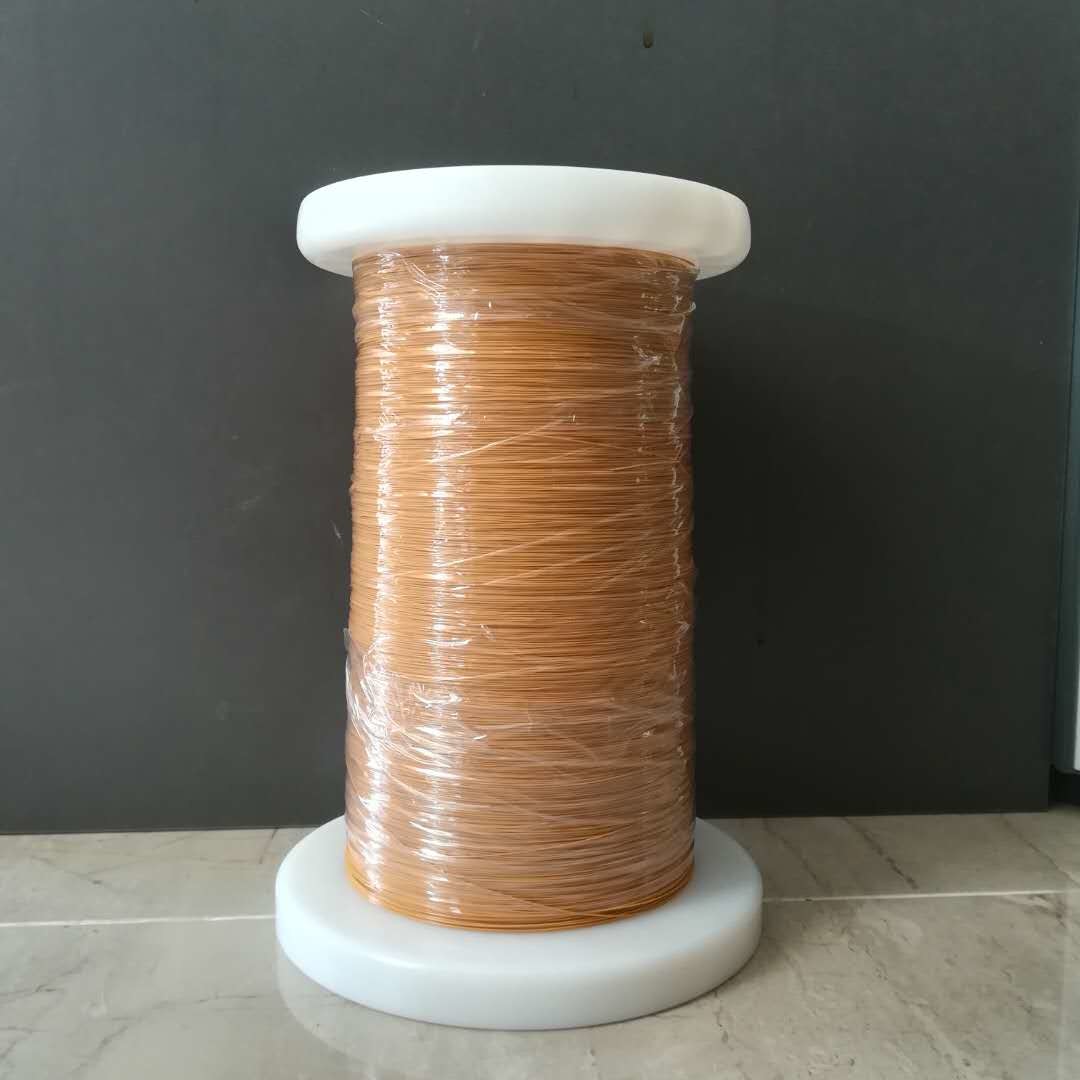

TIW-B 0.16mm Triple Insulated Wire Insulated Solid
Triple insulated wire is often used in high-voltage transformer windings to improve insulation performance and reduce voltage gradients. The general construction of high voltage transformers is accomplished by laminating insulating coils on insulating material.
The Triple insulated wire structure can provide higher voltage levels and better insulation properties. Since the three-layer structure reduces the electric field gradient, it helps reduce the thickness and cost of the insulation.
In addition, the Triple insulated wire can also reduce winding losses and temperature rise, improving the efficiency and reliability of the transformer.
|
Characteristics |
Test standard |
conclusion |
|
Package |
Wether package condition is good(including carton, spool, PE film, air bubble film), whether carton's seal is complete |
OK |
|
Bare wire diameter |
0.16±0.008mm |
0.159-0.164 |
|
Overall diameter |
0.36±0.020mm |
0.359-0.362 |
|
Conductor resistance |
Max. 950.1Ω/KM |
898.3Ω/KM |
|
Breakdown voltage of straight wire |
The length of wire 305mm, wind on the copper bar, test condition 1mA/60s5.0KV |
OK |
|
Elongation |
Min. 15% |
17.2-18.5 |
|
Solerability |
430±5℃ 1-2.5 secs |
OK |
