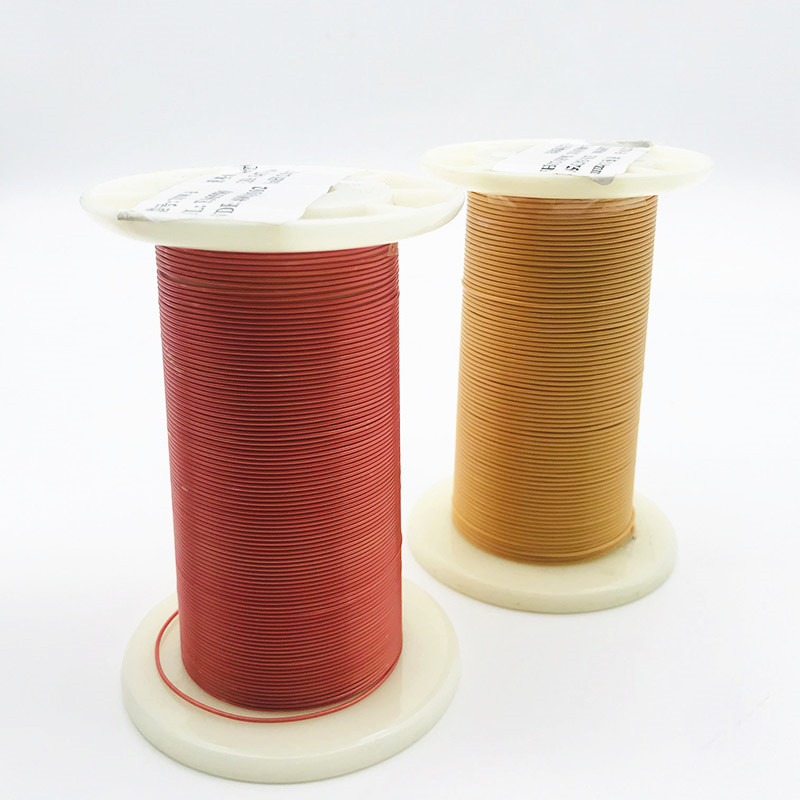

0.2mm Triple Insulated Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.2mm
Minimum Order Quantity: 3000meters
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Conductor Material: Copper Diameter: 0.2mm
Solderability: Directly Rated Temperature: 130
Color: Red Solder Temperature: 420-470
High Light:

TIW Triple Insulated Wire

,

0.3mm Triple Insulated Wire

,

Triple Insulated Copper Enameled Wire


Product Description

0.3mm TIW Red Color Copper Enameled Wire Triple Insulated Wire



With UL system certification



We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.



Characteristics
Test Standard
Conclusion
Package
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete
OK
Bare Wire Diameter
0.20±0.008MM
OK
Overall Diameter
0.40±0.020MM
OK
Conductor Resistance
MAX: 595.5Ω/KM
OK
Breakdown voltage of straight wire
The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV
OK
Elongation
MIN:15%
OK
Solder ability
430± 10℃ 3-5 Secs
OK
Conclusion
Qualified







0.2mm Triple Insulated Wire 0
