| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.2mm 0.3mm 0.4mm Class B Triple Insulated Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | 0.2mm 0.3mm 0.4mm Class B Triple Insulated Wire |
| High Light: | 0.2mm triple insulated wire,triple insulated wire enamel coated,tiw enamel coated magnet wire |
||

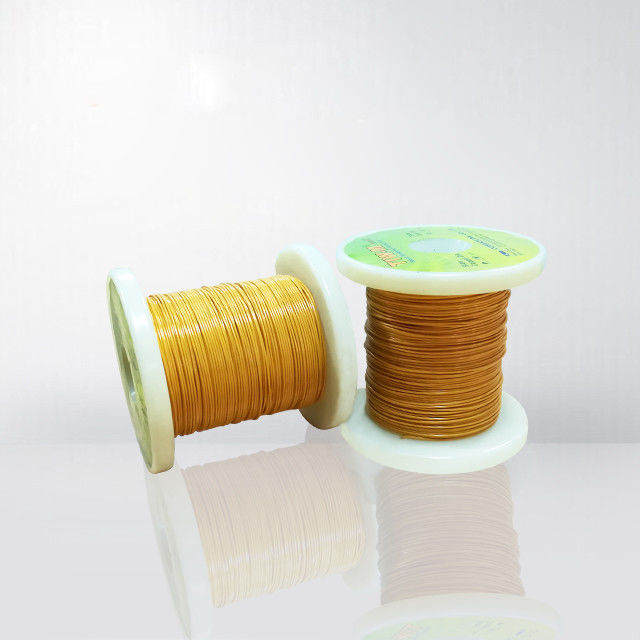

0.2mm 0.3mm 0.4mm Class B Triple Insulated Wire
Triple Insulated Wire, also known as triple insulated wire, is a kind of high-performance insulated wire newly developed internationally in recent years. This kind of wire has three insulating layers, with the core wire in the middle. The first layer is a golden polyamide film, which is called "gold film" abroad, with a thickness of several microns.
| Model | Traditional Transformer (No Use Triple insulated wire) | Smaller transformer (use TIW) | |
| Output voltage | 20W | 20W | |
| Volume | cm³ | 36 | 16 |
| % | 100 | 53 | |
| Weight | g | 70 | 45 |
| % | 100 | 64 | |
