| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire |
| No. Of Strands: | 600 | ||
| High Light: | enamel covered copper litz wire,38 awg copper litz wire,38 gauge enamel coated magnet wire |
||

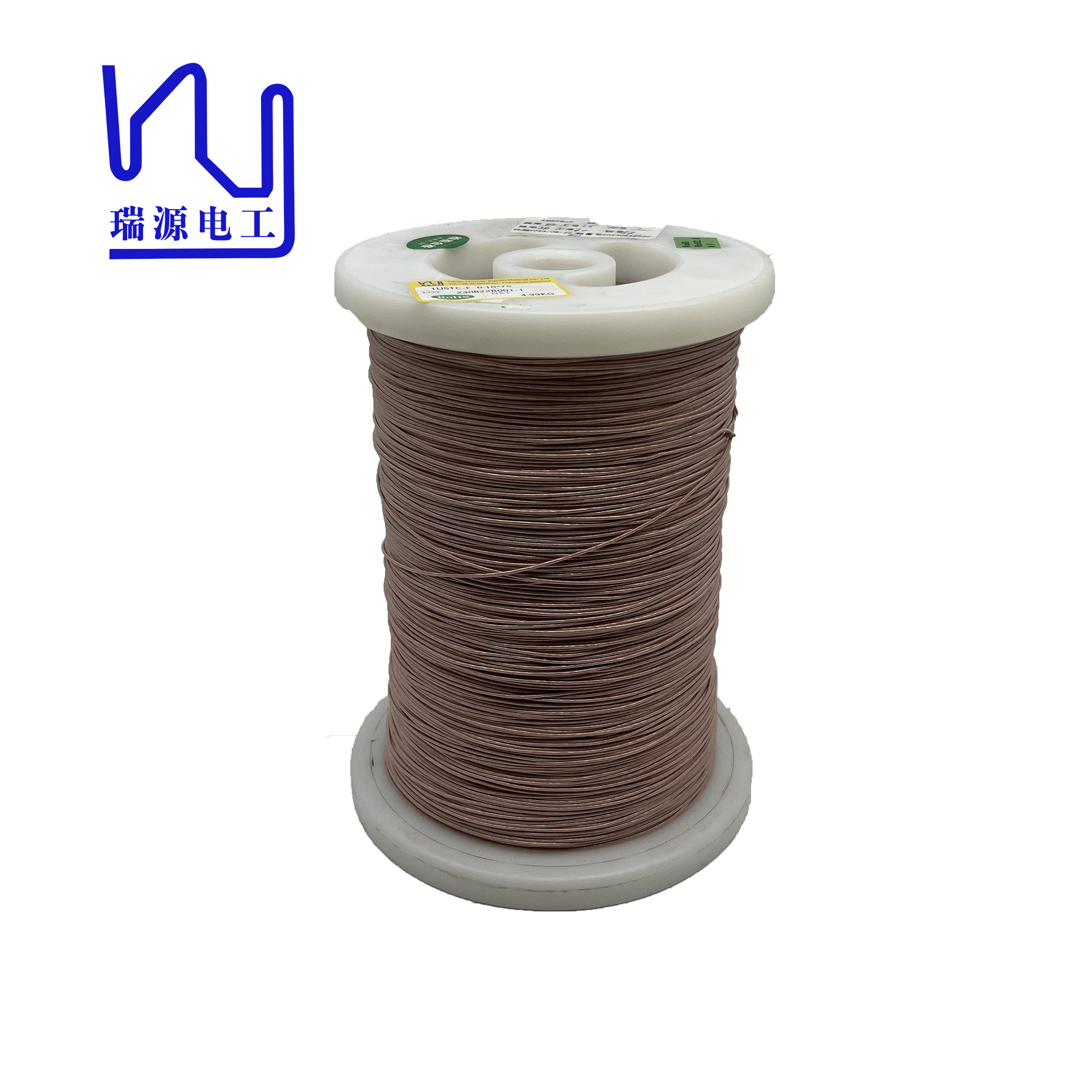

USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire
Signal transmission is another area where Nylon served Litz Wire excels. Whether for data transmission or telecommunications, highly conductive copper strands combined with the superior insulating qualities of nylon yarn provide clear and reliable signal transmission, minimizing interference and maintaining signal integrity.
|
Description Conductor diameter*Strand number |
2UDTC- F 0. 10*600 |
|
| Single wire | Conductor diameter(mm) | 0 . 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
| Strand Composition | Strand number (strands) | 100*6 |
| Pitch(mm) | 65± 10 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm* mm or D) | 300+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm) , mini | 0.05 | |
| Wrapping direction | Z ,S | |
|
Characteristics |
Max O. D (mm) | 3 .78 |
| Max pin holes 个/6 m | 98 | |
| Max resistance ( Ω/Km at20℃) | 3.968 | |
| Mini breakdown voltage (V ) | 1100 | |
| Key word | UL Certified 0.1mm*600 Strands USTC Silk Covered Litz Copper Wire | ||
|
Key word |
USTC AWG38 0.1mm Strands Twited White Silk Covered Enameled Copper Litz Wire |
||
