| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF 0.1mm*20 litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Breakdown Voltage: | 3300V |
|---|---|---|---|
| Jacket: | Dacron/Nylon/natural Silk | Single Wire Diameter: | 0.1mm |
| Rated Temperature: | 155 | Conductor Material: | Copper |
| Number Of Strands: | 20 | Insulation: | UEW |
| High Light: | UEW Insulation Ustc Litz Wire,155C Ustc Litz Wire,Silk Jacket Ustc Litz Wire |
||

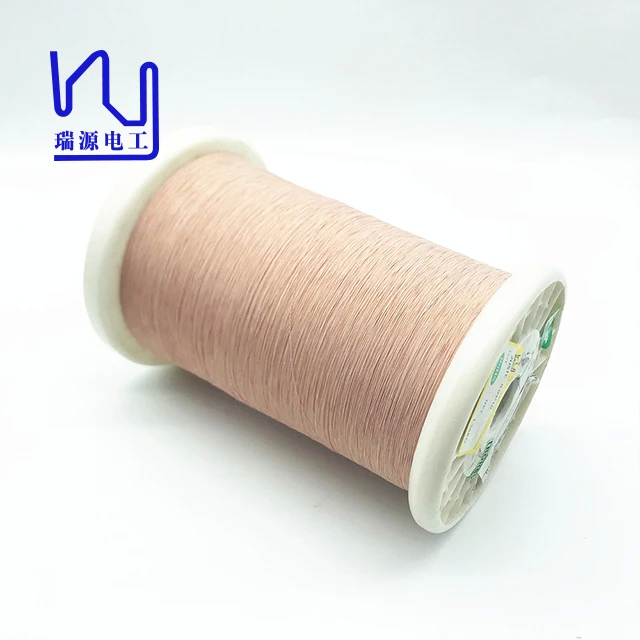

155C Copper Ustc Litz Wire Dacron/Nylon/Silk Jacket 20 Strands UEW Insulation
In electronic products, the advantages of nylon litz wire are widely used in various applications such as high-frequency antennas, wireless charging systems, and radio frequency modules. The ability of wires to maintain signal integrity and minimize losses from high-frequency operation is critical to ensuring the performance and reliability of electronic equipment. Additionally, the mechanical durability provided by nylon increases the lifespan of wires in electronics, helping to improve their overall quality and longevity.
With its combination of fine copper strands, robust UEW insulation, and protective silk covering, the Ustc Litz Wire stands as a testament to high-quality engineering and manufacturing. Whether it's used in transformers, inductors, motors, or other electronic devices, this copper litz wire is engineered to deliver superior performance, exceptional reliability, and long-term durability.
| Item | Single wire dia. mm | Conductor dia. mm | O.D. mm |
Resistance Ω/m20℃ |
Dielectric strength V | Pinch mm |
Solder ablility 390± 5℃ 9s |
| Tech requirement | 0.107-0.125 | 0.10 | 0.69 | 0.1191 | 1100 | 27 | Smooth,no shed |
| ± | 0.003 | Max. | Max. | Min. | 3 | ||
| 1 | 0.110-0.114 | 0.098-0.10 | 0.52-0.59 | 0.1084 | 3300 | √ | √ |
