| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | USTC155 0.1mm * 65 Nylon Served Silver Litz Wire |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC155 0.1mm * 65 Nylon Served Silver Litz Wire |
| No. Of Strands: | 65 | ||
| High Light: | ustc silver litz wire,0.1 mm silver litz wire,ustc pure silver litz cable |
||

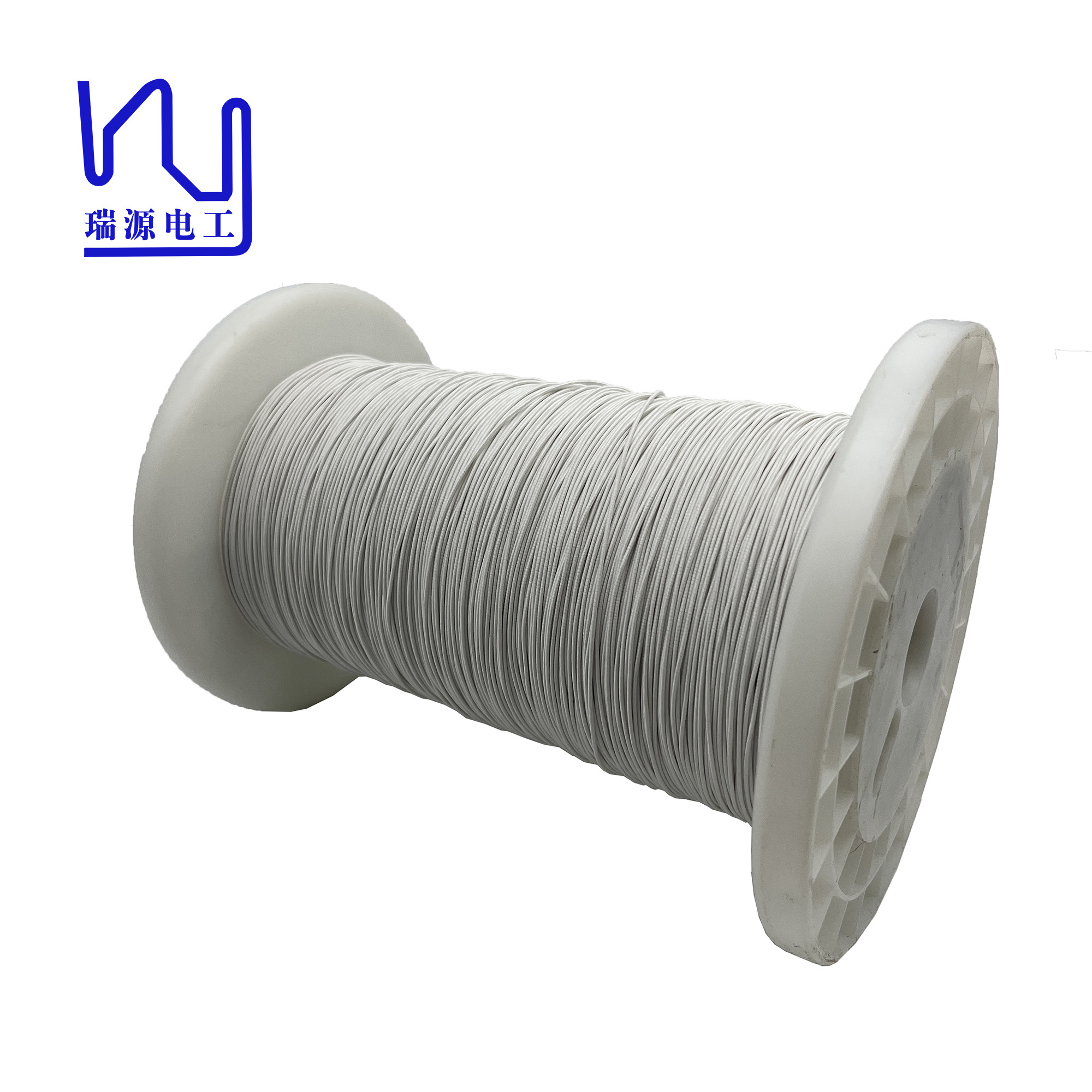

USTC155 0.1mm * 65 Nylon Served Silver Litz Wire
An Excellent Choice for Reproducing Perfect Sound
In the process of manufacturing audio equipment and building a sound system, the choice of connection has an impact on sound quality that cannot be underestimated.
As a high-grade wire specially designed for audio enthusiasts, nylon served silver Litz Wire is favored by users for its excellent performance and diverse application fields.
| Item | Sample |
| Outer conductor diameter(mm) | 0.107-0.109 |
| Conductor diameter(mm) | 0.099-0.10 |
| Overall dimension(mm) | Max 1.06- 1.15 |
| Resisitance Q /m (20℃) | Max 0.03225 |
| Breakdown voltage( v) | Min 2000 |
| Key word | USTC155 0.1mm * 65 Nylon Served Silver Litz Wire |
