| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Custom Color Wire 44 AWG Polyurthane Coating Guitar Pickup Winding Wire | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.05mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Custom Color Wire 44 AWG Polyurthane Coating Guitar Pickup Winding Wire |
| High Light: | custom color enamel coated wire,0.05mm enamel coated wire,enamel coated magnet wire 44 awg |
||

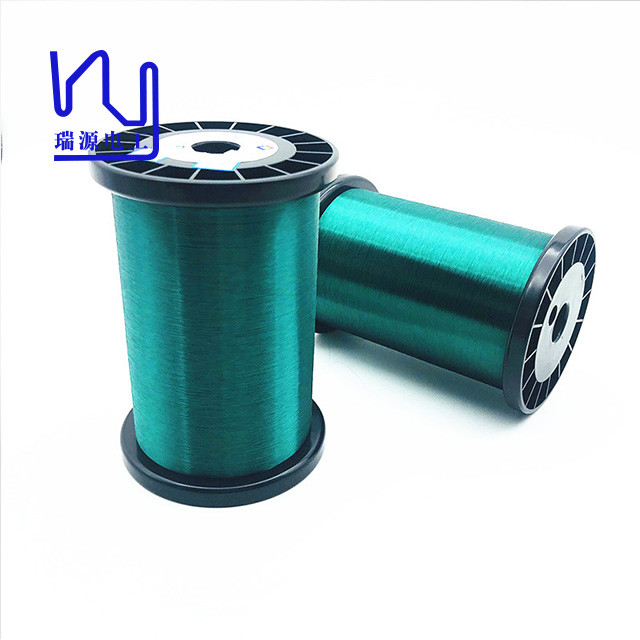

Custom Color Enamel Coated Wire 44 Awg Polyurthane coating
MOQ: 1 spool is good to go and weighs about 57,200 meters.
Delivery time: 7-10 days
Custom options:
Enamel type: plain enamel, heavy formvar
Gauge range: 0.04mm-0.071mm
Color: red, green, blue, etc.
Thickness of enamel: if you need to customize in terms of your own requirements, it’ s acceptable for us and you can mail or call us directly
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.050±0.002mm | 0.050mm |
|
Thickness of insulation |
Min. 0.007 |
0.0094mm |
|
Overall diameter |
Max. 0.060mm |
0.0594mm |
|
Continuity of covering |
Max. 60 pcs |
Max. 0 pcs |
|
Breakdown voltage |
Min. 400V |
Min. 1,628V |
|
Resistance to softening |
Continue 2 times pass |
230℃/Good |
|
Solder test(390℃±5℃) |
Max. 2s |
Max. 1.5s |
|
D.C Electrical resistance(20℃) |
8.6-9.0 Ω/m |
8.80 Ω/m |
|
Elongation |
Min. 12% |
23% |
|
Product |
Custom Color Enamel Coated Wire 44 Awg Polyurthane coating |
|
Conductor diameter |
0.05mm |
|
Key word |
Custom Color Enamel Coated Wire 44 Awg Polyurthane coating |
