| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 42awg PU Enameled Copper Wire Poly Coated Guitar Pickup Winding Wire | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 42awg PU Enameled Copper Wire Poly Coated Guitar Pickup Winding Wire |
| High Light: | Guitar Pickup Winding Copper Wire,Guitar Pickup Winding Enameled Copper Wire,Poly Coated Enameled Copper Wire |
||

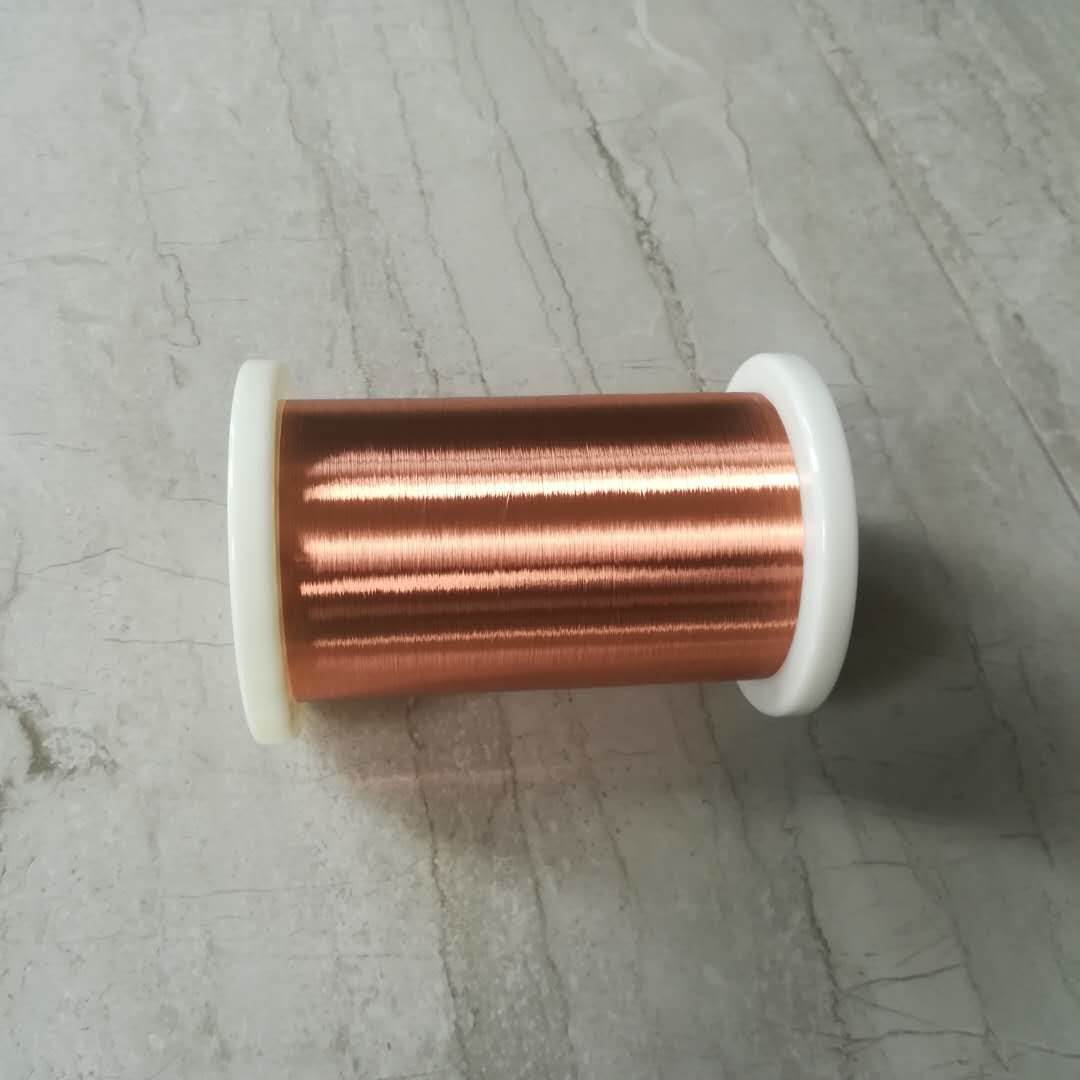

42awg PU Enameled Copper Wire Poly Coated Guitar Pickup Winding Wire
Here are different types of wire insulation: polyurethanes, nylons, poly-nylons, polyester etc, Pickup makers have learned how to use different types of insulation to refine a pickup’s tonal response. For example, a wire with heavier insulation can be used to maintain more high-end detail. Period-accurate wire is used in all vintage-style pickups.
|
Characteristics |
Technical requests |
Test Results |
|||
|
|
|
Sample 1 |
Sample 2 |
Sample 3 |
|
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
