| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.063mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 41.5 AWG 0.065mm Plain Guitar Pickup Wire | Insulation: | Plain/heavy Formvar |
|---|---|---|---|
| Size: | 0.063mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | 41.5 AWG 0.065mm Plain Guitar Pickup Wire |
| High Light: | 41.5awg enamel covered wire,0.065 mm enamel covered wire,enamel covered guitar pickup coil wire |
||

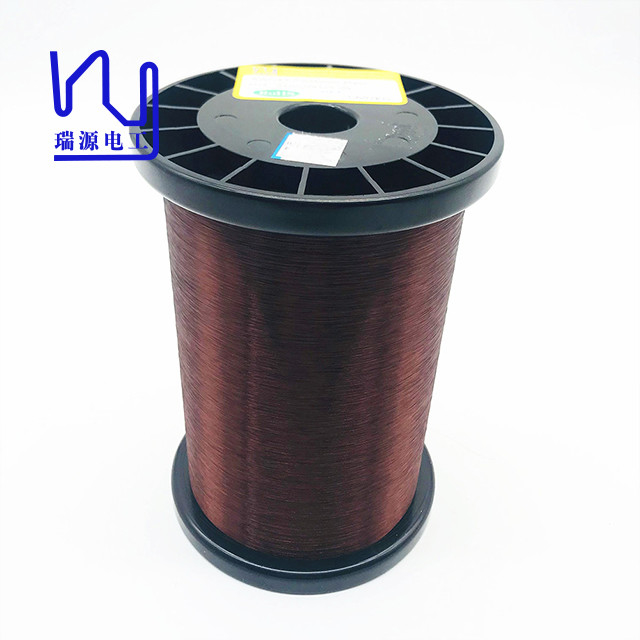

41.5 AWG 0.065mm Plain guitar pickup wire
The Right Stuff
It’ s know to all music fans that the type of insulation of magnet wire is vital to pickups. The most commonly used insulation are heavy formvar and PE(plain enamel). Different insulation exerts influences on overall inductance and capacitance of pickups due to their chemical composition varies. So tones of electric guitar differ.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.065±0.001mm | 0.065mm |
| Thickness of insulation | Min. 0.008 | 0.0093mm |
| Overall diameter | Max. 0.075mm | 0.0743mm |
|
Continuity of covering (50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 1,000V | Min. 1,685V |
| Resistance to softening | Continue 3 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 5.10-5.30 Ω/m | 5.16 Ω/m |
| Elongation | Min. 15% | 24% |
| Product | 41.5 AWG heavy formvar enameled copper wire for guitar pickup |
| Conductor diameter | 0.065mm±0.002 |
| Key word | 41.5AWG heavy formvar enameled copper wire for guitar pickup |
| Coating | Heavy formvar |
