| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.106mm |
| Minimum Order Quantity: | 20 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Stock: | Available | Size: | 0.106mm |
|---|---|---|---|
| Color: | Red/Purple/Gold | Material: | Round Copper |
| Name: | 0.063 Super Thin Copper Wire | ||
| High Light: | solderable magnet wire,self bonding magnet wire |
||

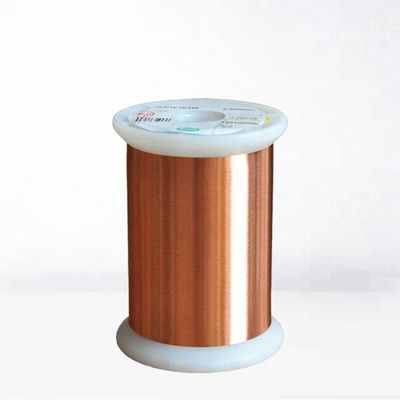

UNCOMMON 02.106MM ULTRA FINE MAGNET WIRE RED GOLD ENAMELED WIRE
Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil.Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.
FEATURES AND BENEFITS
High conductivity, high heat resistance
Shock resistance, Corrosion Resistant
Excellent durability, Durable Resistant
Superior strength, Reliability
Rust resistant, Affordability
Low maintenance
APPLICATIONS
Transformer for measuring instrument
For communication : High frequency coil for transformer, Coil for power source transformer
For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
Coil-motor with heat resistant & etc.
SPECIFICATIONS
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550.000 |
1200.00 |
16.00 |
5.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.010 |
0.106 |
650.000 |
1200.00 |
16.00 |
5.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.010 |
0.111 |
650.000 |
1200.00 |
17.00 |
5.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.011 |
0.118 |
650.000 |
1200.00 |
17.00 |
5.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.011 |
0.129 |
---- |
1300.00 |
17.00 |
5.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.011 |
0.139 |
---- |
1500.00 |
17.00 |
5.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.011 |
0.149 |
---- |
1500.00 |
18.00 |
5.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.011 |
0.159 |
---- |
1600.00 |
19.00 |
5.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.011 |
0.169 |
---- |
1700.00 |
20.00 |
5.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.012 |
0.180 |
---- |
1700.00 |
21.00 |
5.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.013 |
0.192 |
---- |
2000.00 |
22.00 |
5.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.014 |
0.204 |
---- |
2000.00 |
22.00 |
5.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.014 |
0.214 |
---- |
2000.00 |
23.00 |
5.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.014 |
0.224 |
---- |
2000.00 |
23.00 |
5.00 |
523.70 |
565.70 |
|
0.210 |
±0.003 |
0.014 |
0.234 |
---- |
2000.00 |
23.00 |
5.00 |
475.70 |
512.30 |
|
0.220 |
±0.003 |
0.014 |
0.245 |
---- |
2200.00 |
23.00 |
5.00 |
434.00 |
466.20 |
|
0.230 |
±0.003 |
0.016 |
0.257 |
---- |
2200.00 |
24.00 |
5.00 |
397.50 |
426.00 |
|
0.240 |
±0.003 |
0.016 |
0.267 |
---- |
2200.00 |
24.00 |
5.00 |
365.50 |
390.80 |
|
0.250 |
±0.003 |
0.016 |
0.277 |
---- |
2300.00 |
24.00 |
5.00 |
337.10 |
359.80 |
|
0.260 |
±0.004 |
0.018 |
0.287 |
---- |
2300.00 |
25.00 |
5.00 |
309.60 |
335.00 |
|
0.270 |
±0.004 |
0.018 |
0.297 |
---- |
2300.00 |
25.00 |
5.00 |
287.40 |
310.30 |
|
0.280 |
±0.004 |
0.022 |
0.313 |
---- |
2300.00 |
25.00 |
5.00 |
267.60 |
288.20 |
|
0.290 |
±0.004 |
0.022 |
0.323 |
---- |
2500.00 |
25.00 |
5.00 |
249.70 |
268.40 |
|
0.300 |
±0.004 |
0.022 |
0.334 |
---- |
2500.00 |
25.00 |
5.00 |
233.50 |
250.60 |
|
0.310 |
±0.004 |
0.022 |
0.344 |
---- |
2500.00 |
25.00 |
5.00 |
218.90 |
234.40 |
|
0.315 |
±0.004 |
0.022 |
0.349 |
---- |
2500.00 |
25.00 |
5.00 |
212.10 |
227.00 |
|
0.320 |
±0.004 |
0.023 |
0.355 |
---- |
2700.00 |
25.00 |
5.00 |
205.60 |
219.80 |
|
0.330 |
±0.004 |
0.023 |
0.365 |
---- |
2700.00 |
25.00 |
5.00 |
193.50 |
206.60 |
|
0.350 |
±0.004 |
0.023 |
0.385 |
---- |
2700.00 |
26.00 |
5.00 |
172.20 |
183.40 |
|
0.355 |
±0.004 |
0.023 |
0.390 |
---- |
2700.00 |
26.00 |
5.00 |
167.40 |
178.20 |
|
0.370 |
±0.004 |
0.024 |
0.406 |
---- |
2900.00 |
26.00 |
5.00 |
154.30 |
163.90 |
|
0.380 |
±0.004 |
0.024 |
0.416 |
---- |
2900.00 |
26.00 |
5.00 |
146.40 |
155.30 |
|
0.400 |
±0.004 |
0.025 |
0.437 |
---- |
2900.00 |
27.00 |
5.00 |
132.20 |
140.00 |
|
0.410 |
±0.004 |
0.025 |
0.447 |
---- |
2900.00 |
27.00 |
5.00 |
125.90 |
133.20 |
|
0.440 |
±0.004 |
0.025 |
0.477 |
---- |
2900.00 |
27.00 |
5.00 |
109.50 |
115.50 |
|
0.450 |
±0.004 |
0.025 |
0.487 |
---- |
2900.00 |
27.00 |
5.00 |
104.70 |
110.40 |
|
0.470 |
±0.004 |
0.026 |
0.508 |
---- |
3100.00 |
27.00 |
5.00 |
96.05 |
101.10 |
|
0.500 |
±0.004 |
0.026 |
0.539 |
---- |
3100.00 |
27.00 |
5.00 |
84.96 |
89.23 |
|
0.550 |
±0.004 |
0.027 |
0.590 |
---- |
3300.00 |
28.00 |
5.00 |
70.31 |
73.64 |
|
0.600 |
±0.005 |
0.027 |
0.640 |
---- |
3500.00 |
28.00 |
5.00 |
58.96 |
62.01 |
|
0.650 |
±0.005 |
0.027 |
0.690 |
---- |
3500.00 |
28.00 |
5.00 |
50.30 |
52.77 |
|
0.700 |
±0.005 |
0.029 |
0.742 |
---- |
3500.00 |
28.00 |
5.00 |
43.42 |
45.45 |
|
0.750 |
±0.005 |
0.030 |
0.794 |
---- |
3800.00 |
28.00 |
5.00 |
37.86 |
39.55 |
|
0.800 |
±0.005 |
0.032 |
0.846 |
---- |
3800.00 |
28.00 |
5.00 |
33.30 |
34.73 |
