| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | 2000V | Number Of Strands: | 105 |
|---|---|---|---|
| Jacket: | Nylon/polyester/real Silk | Theraml Grade: | 155 |
| Key Word: | Custom Strands Litz Wire Nylon Coated Litz Wire For Transformer | Conductor Material: | Copper |
| Product Name: | Custom Strands Litz Wire Nylon Coated Litz Wire For Transformer | Single Wire: | 0.08mm |

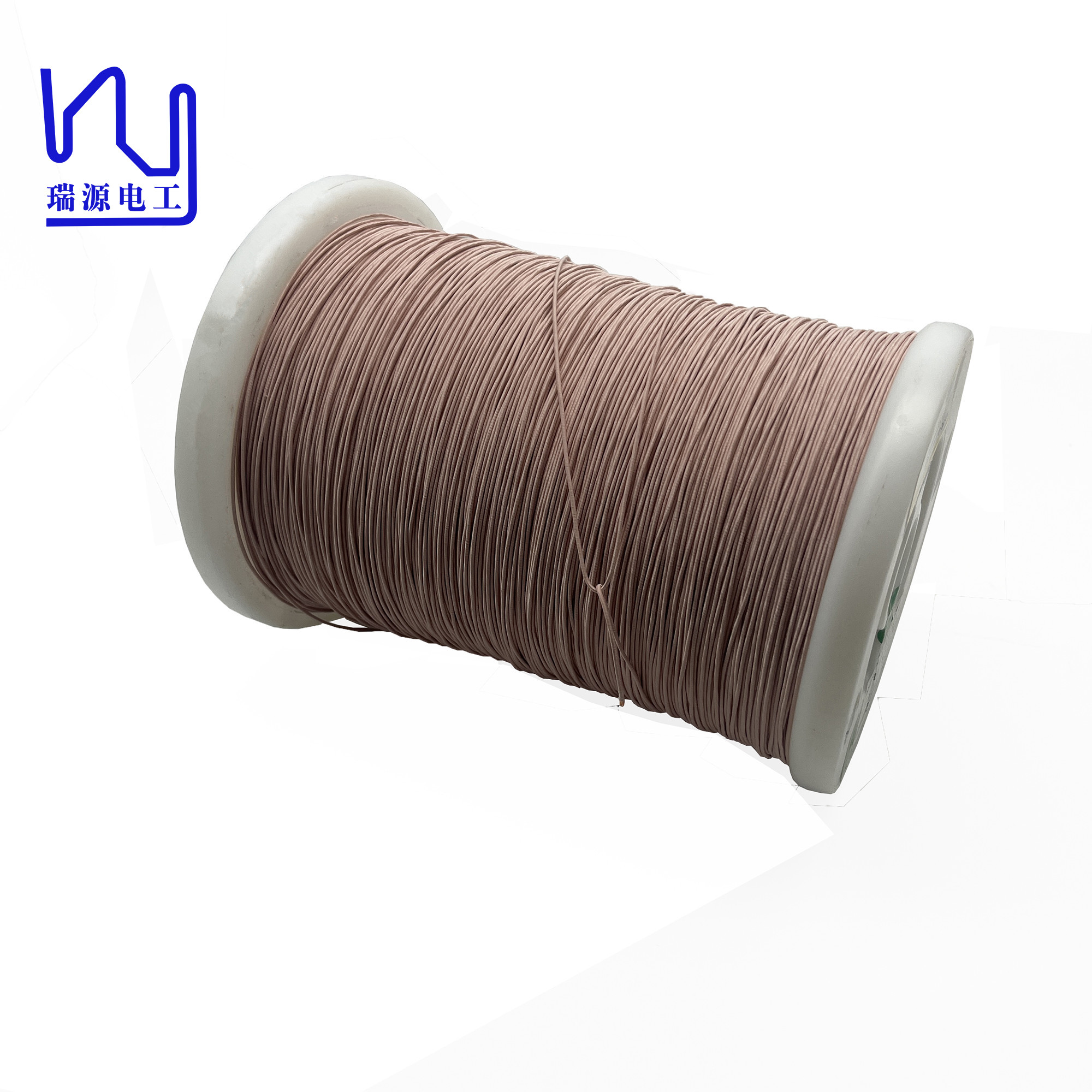

Custom Strands Litz Wire Nylon Coated Litz Wire For Transformer
Transformers also benefit from the use of silk covered litz wire, particularly in the winding of the coils. This Litz wire have low resistance and high efficiency, helping to improve the overall performance of the transformer. The silk covering provides insulation and protection against electrical breakdown, making the wire suitable for use in high voltage applications. In addition, the temperature resistance of the wires ensures reliable operation even in transformers that experience high temperatures during operation.
| Product name: |
Custom Strands Litz Wire Nylon Coated Litz Wire For Transformer |
|||
| Item | Unit | Technical requests | Sample 1 | Sample 2 |
| Conductor Diameter | mm | 0.08±0.003 | 0.078 | 0.080 |
| Single wire diameter | mm | 0.091-0.120 | 0.098 | 0.100 |
| O.D. | mm | Max.1.39 | 1.09 | 1.21 |
| Resistance (20℃) | Ω/m | Max.0.03595 | 0.03308 | 0.03310 |
| Breakdown Voltage | V | Min.2000 | 5400 | 4600 |
| Pitch | mm | 29±5 | ok | ok |
| No. of strands | 105 | ok | ok | |
