| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Rated Temperature: | 155 | Jacket: | Dacron/Nylon/natural Silk |
|---|---|---|---|
| Product Name: | 155.C Rated Temperature Ustc Litz Wire Dacron/Nylon/Natural Silk Jacket 460 Strands | Conductor Material: | Copper |
| Single Wire: | 0.1mm | Number Of Strands: | 460 |
| Key Word: | 155.C Rated Temperature Ustc Litz Wire Dacron/Nylon/Natural Silk Jacket 460 Strands | Breakdown Voltage: | 2700V |

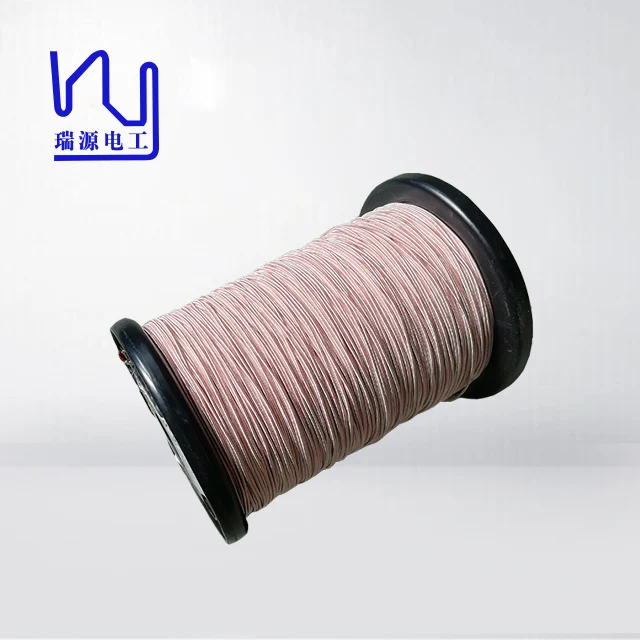

155.C Rated Temperature Ustc Litz Wire Dacron/Nylon/Natural Silk Jacket 460 Strands
The Ustc Litz Wire product stands as a pinnacle of innovation in the realm of high-frequency conductor technology, designed to meet the rigorous demands of modern electronic applications. Crafted from the highest quality conductor material, copper, this silk covered litz wire boasts exceptional conductivity and flexibility, making it the material of choice for engineers and manufacturers alike.
At its core, the Ustc Litz Wire features a multitude of finely stranded wires, with each single wire measuring a mere 0.1mm in diameter. These strands are expertly woven together to form a robust configuration of 460 individual strands, ensuring that the wire possesses not only superior electrical characteristics but also enhanced durability. The unique construction of this copper litz wire allows for minimized skin and proximity effect losses, which are common impediments at high frequencies.
| Item | Unit | Technical requests | Reality Value |
| Conductor Diameter | mm | 0.1±0.003 | 0.098-0.10 |
| Single wire diameter | mm | 0.110-0.125 | 0.110-0.114 |
| Width | mm | 4 | 3.74-3.96 |
| Thickness | mm | 2 | 2.06-2.26 |
| Resistance (20℃) | Ω/m | Max.0.005176 | 0.004795 |
| Breakdown Voltage | V | Min.500 | 2700 |
| No. of strands | 460 | 460 |
