| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW220 1.1mm*0.9mm Super Thin Enameled Flat Copper Wire Rectangular Wire For Motor | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.10mm |
| Thickness: | 0.90mm | Conductor Material: | Copper |
| Key Word: | AIW220 1.1mm*0.9mm Super Thin Enameled Flat Copper Wire Rectangular Wire For Motor | ||
| High Light: | Motor Flat Copper Wire,Rectangular Flat Copper Wire,1.1mm*0.9mm Flat Copper Wire |
||

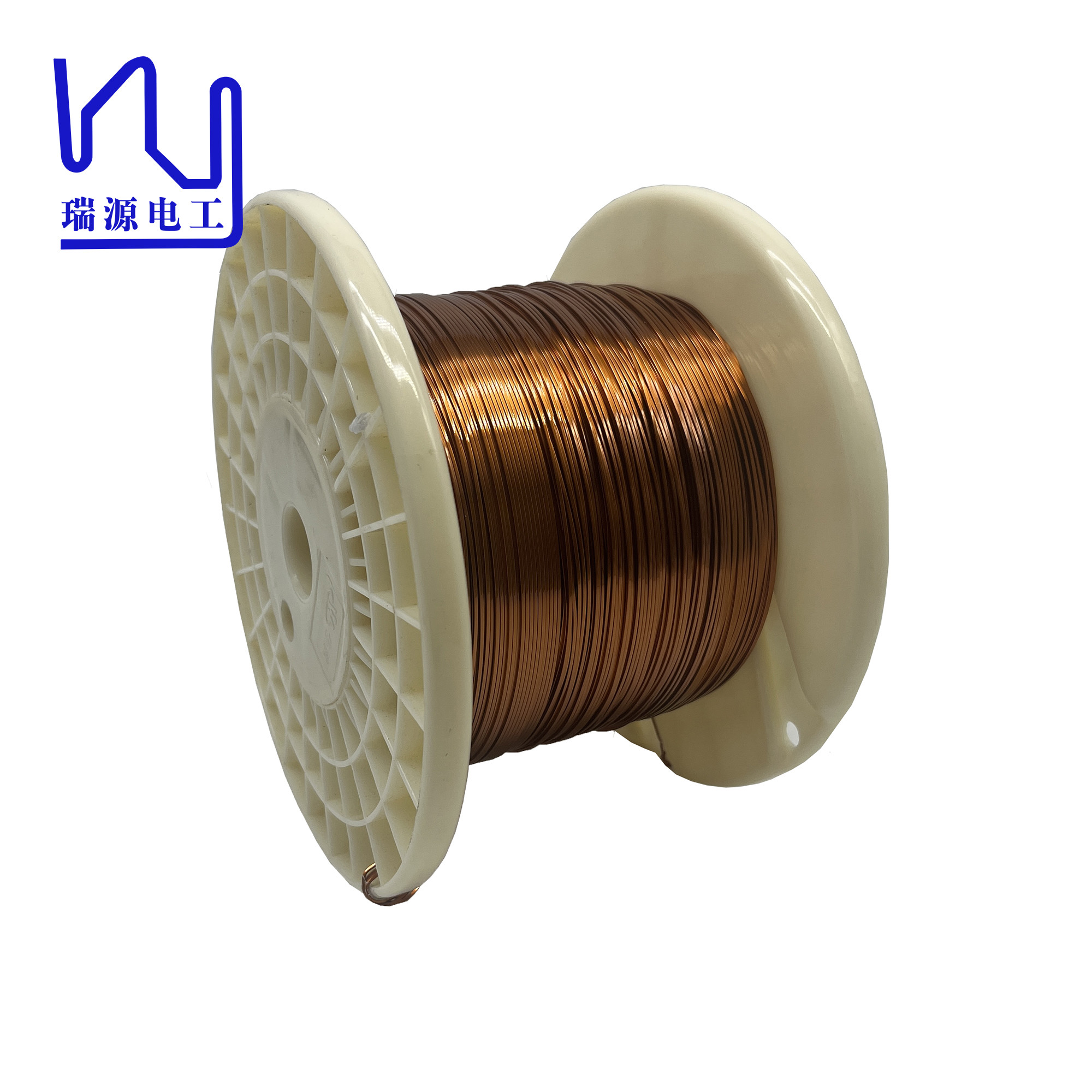

AIW220 1.1mm*0.9mm Super Thin Enameled Flat Copper Wire Rectangular Wire For Motor
Enameled copper flat wire is a key component in various motor constructions and offers a range of advantages that make it ideal for such applications. This type of wire is designed to meet the needs of modern motor technology, providing a reliable and efficient conductive solution.
One of the main variants of enameled copper wire is ultra-fine enameled flat copper wire, which is characterized by its rectangular shape and thin profile. This wire is designed to withstand high temperatures and is suitable for a variety of motor applications.
| Model | SFT-AIW | Date | |||||||||
| Size(mm): | 0.900 × 1.100 | Lot | |||||||||
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.900 | 1.100 | 0.025 | 0.025 | ||||||
| Max | 0.930 | 1.160 | 0.040 | 0.040 | 0.980 | 1.200 | 1 | 22.600 | |||
| Min | 0.870 | 1.040 | 0.010 | 0.010 | 0.700 | 0 | 30 | ||||
| No. 1 | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.200 | 18.300 | 44 | ||
| No. 2 | 1.520 | ||||||||||
| No. 3 | 1.030 | ||||||||||
| No. 4 | 1.514 | ||||||||||
| No. 5 | 1.202 | ||||||||||
| Ave | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.293 | ||||
| No of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.030 | ||||
| Max. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.520 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.490 | ||||
