| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.3X1.0 AIW Enamelled Flat Copper Wire For Automotive Winding | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.00mm |
| Thickness: | 0.30mm | Conductor Material: | Copper |
| Key Word: | 0.3X1.0 AIW Enamelled Flat Copper Wire For Automotive Winding | ||
| High Light: | Automotive Winding Enamelled Flat Copper Wire,AIW Enamelled Flat Copper Wire,0.3X1.0 Enamelled Flat Copper Wire |
||

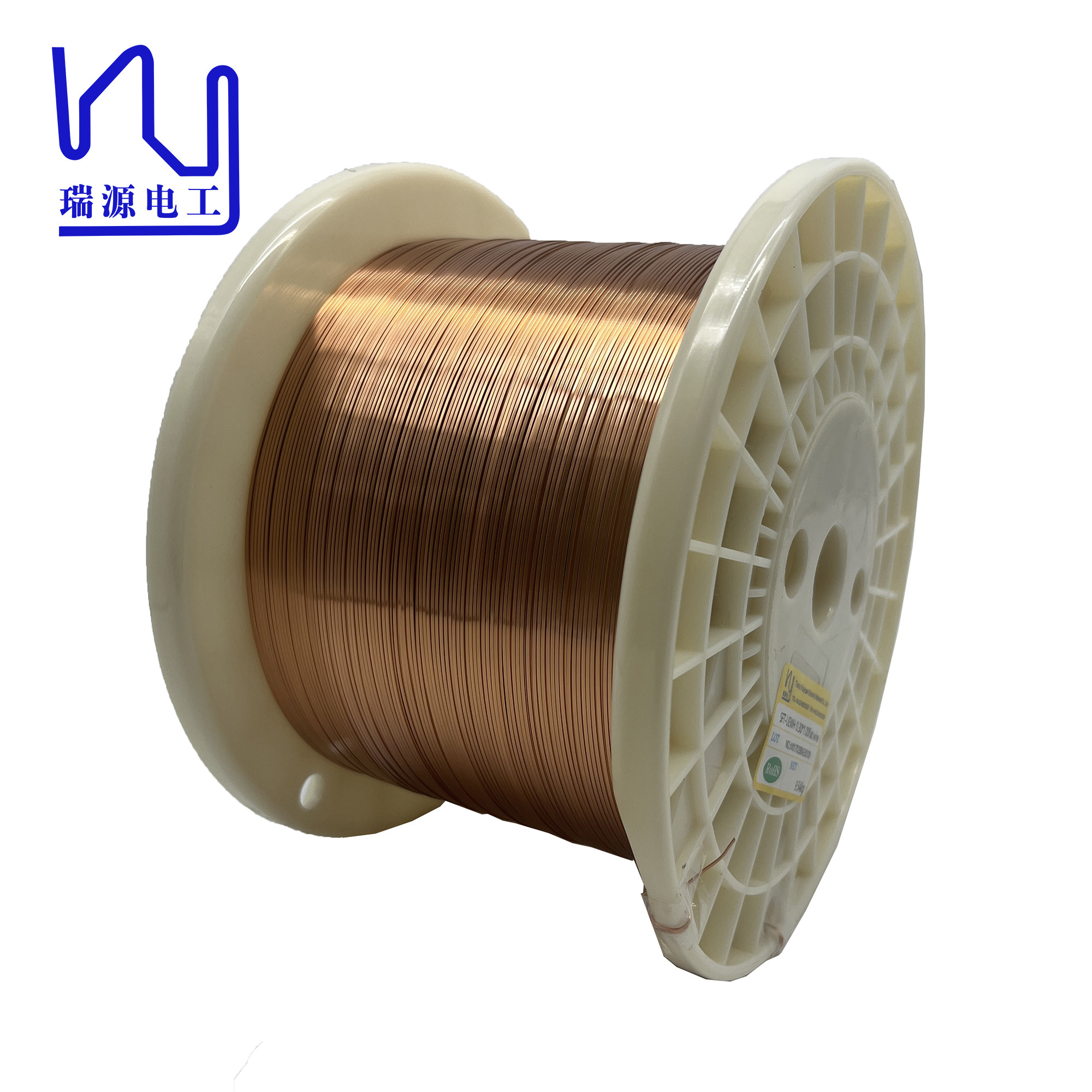

0.3X1.0 AIW Enamelled Flat Copper Wire for Automotive Winding
The enameled copper flt wire has excellent resistance to chemicals and solvents, ensuring the durability and service life of enameled flat wires under the harsh conditions of automotive applications. This resistance to chemical degradation makes flat wire suitable for use in fuel delivery systems, oil circulation systems, and other components in contact with various automotive fluids. The excellent mechanical strength of the enamel coating further enhances the reliability of the enameled flat wire, allowing it to withstand vibration and mechanical stress in the automotive environment.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | Appearance |
soldering temperature |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
410±10℃ |
|
|
SPEC |
Ave | 0.300 | 1.000 | 0.025 | 0.025 | ||||||||
| Max | 0.309 | 1.060 | 0.040 | 0.040 | 0.350 | 1.050 | 3 | 65.730 | |||||
| Min | 0.291 | 0.940 | 0.010 | 0.010 | 0.340 | 1.030 | 0.700 | 30 | |||||
| No. 1 | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.520 |
0 |
62.240 |
34 |
No to be scratched No dirt |
Good |
|
| No. 2 | 2.320 | ||||||||||||
| No. 3 | 1.320 | ||||||||||||
| No. 4 | 2.310 | ||||||||||||
| No. 5 | 1.185 | ||||||||||||
| Ave | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.731 | ||||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||
| Min. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.185 | ||||||
| Max. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 2.320 | ||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.135 | ||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
