| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.075mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Ultra Fine Copper Wire 0.075mm Enameled Wire For Microdevices | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.075mm |
| Conductor Material: | Copper | Key Word: | Ultra Fine Copper Wire 0.075mm Enameled Wire For Microdevices |
| High Light: | 0.075mm Enameled Wire,Microdevices Ultra Fine Copper Wire,Microdevices Enameled Wire |
||

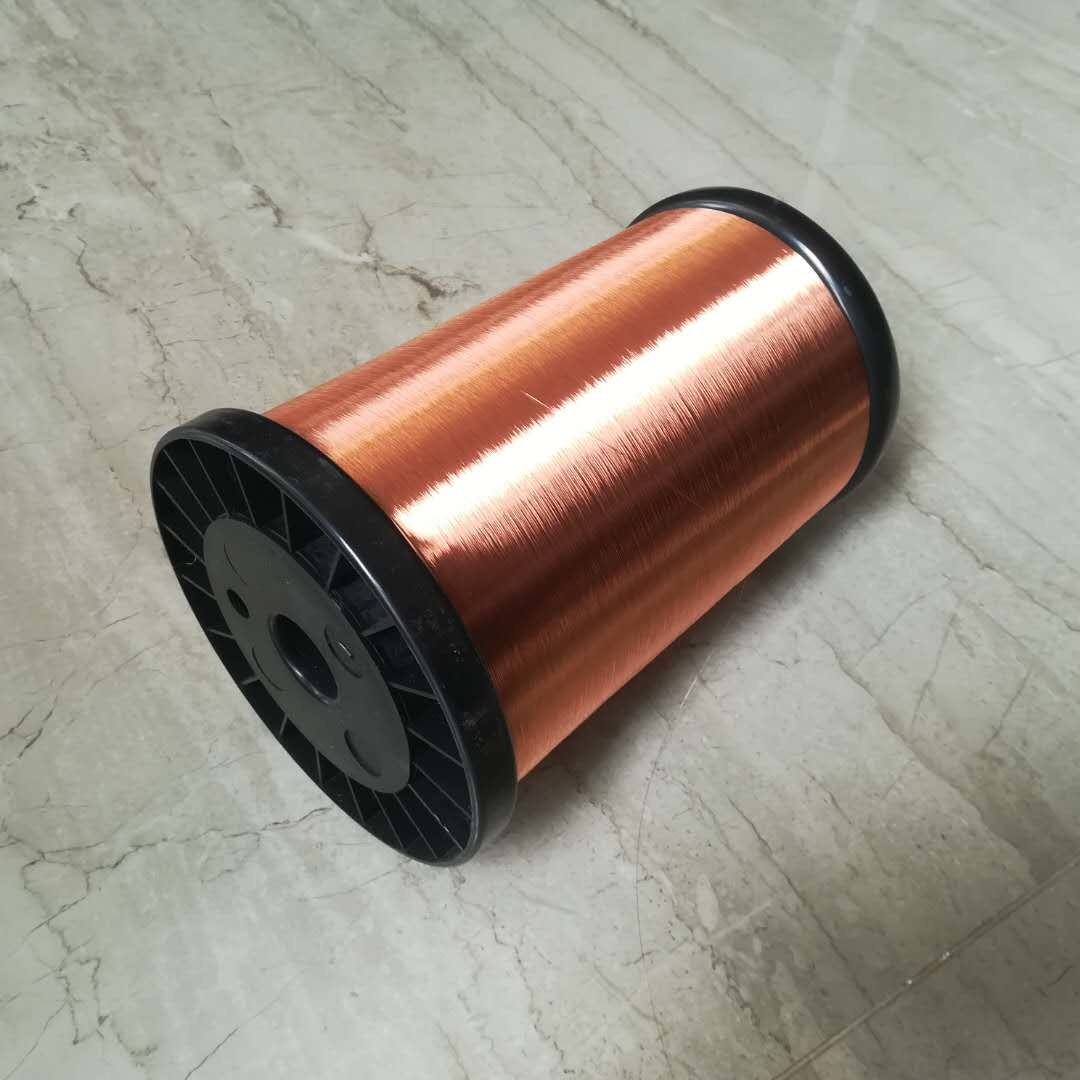

Ultra Fine Copper Wire 0.075mm Enameled Wire For Microdevices
As the demand for miniaturized, high-performance electronics and medical devices continues to grow, enameled copper wire will undoubtedly remain a key enabler of innovation, playing a key role in driving technological advancement and improving healthcare worldwide.
|
Test Items |
Requirements |
Test Data |
||
|
1st Sample |
2nd Sample |
3rd Sample |
||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
|
Conductor Diameter |
0.075mm ±0.002mm |
0.075 |
0.075 |
0.075 |
|
Thickness of Insulation |
≥ 0.008 mm |
0.010 |
0.010 |
0.010 |
|
Overall Diameter |
≤ 0.089 mm |
0.085 |
0.085 |
.085 |
|
DC Resistance |
≤ 4.119 Ω/m |
3.891 |
3.891 |
3.892 |
|
Elongation |
≥ 15% |
22.1 |
20.9 |
21.6 |
|
Breakdown Voltage |
≥550 V |
1868 |
2051 |
1946 |
|
Pin Hole |
≤ 5 faults/5m |
0 |
0 |
0 |
|
Adherence |
No cracks visible |
OK |
OK |
OK |
|
Cut-through |
230℃ 2min No breakdown |
OK |
OK |
OK |
|
Heat Shock |
200±5℃/30min No cracks |
OK |
OK |
OK |
|
Solderability |
390± 5℃ 2 Sec No slags |
OK |
OK |
OK |
|
Key word |
Ultra Fine Copper Wire 0.075mm Enameled Wire For Microdevices |
|||
|
Producto name |
Ultra Fine Copper Wire 0.075mm Enameled Wire For Microdevices |
|||
