| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | EIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Class 180 0.8mm Flat Copper Winding Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | EIW | Width: | 2.00 |
| Thickness: | 0.80 | Conductor Material: | Copper |
| Key Word: | Class 180 0.8mm Flat Copper Winding Wire | ||
| High Light: | class 180 enameled copper winding wire,0.8mm enameled copper winding wire,enamel winding wire flat |
||

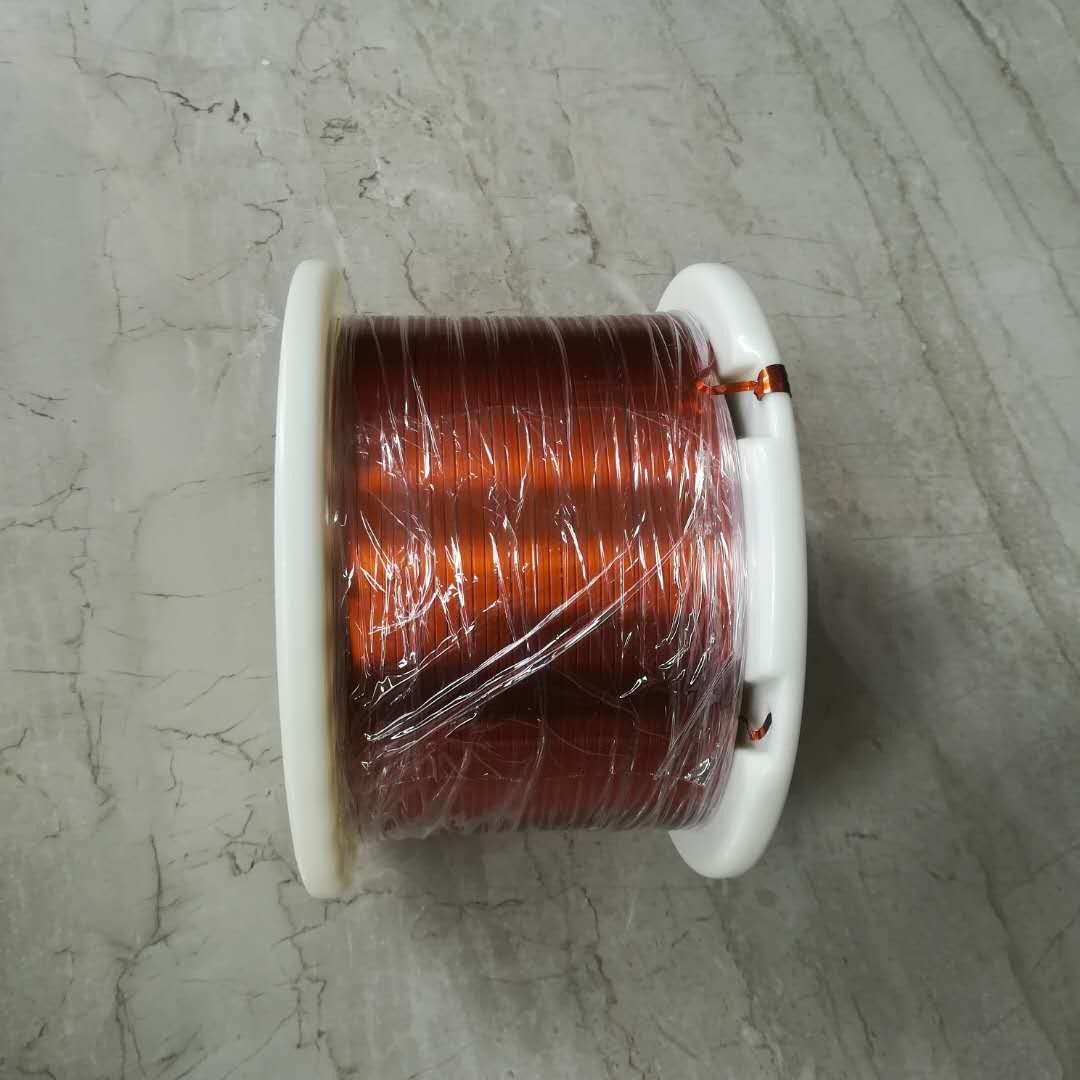

Class 180 0.8mm Flat Copper Winding Wire
Our flat wire also comes with options at 180, 220 and 240 degrees to meet high temperature requirements.
In the automotive industry, enamelled flat copper wire has a variety of applications. It is an important component of transformer windings, electric vehicle motors, industrial motors and generators.
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | Smooth Equality | ||
| Conductor Diameter | Width | 2.00 | ±0.030 | 1.974 |
| Thickness | 0.80 | ±0.030 | 0.798 | |
| Min.thickness of insulation | Width | 0.120 | 0.149 | |
| Thickness | 0.120 | 0.169 | ||
| Overall Diameter | Width | 2.20 | 2.123 | |
| Thickness | 1.00 | 0.967 | ||
| Pinhole | Max. 0 hole/m | 0 | ||
| Elongation | Min. 30 % | 40 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 11.79 | 11.51 | ||
| Breakdown Voltage | Min. 2.00kv | 7.50 | ||
| Heat shock | No Crack | No Crack | ||
| Conclusion | Pass | |||
