| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | EIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | EIW180 2.00*0.8mm Enameled Rectangular Copper Wire For Motor Windings | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | EIW | Width: | 2.00 |
| Thickness: | 0.80 | Conductor Material: | Copper |
| Key Word: | EIW180 2.00*0.8mm Enameled Rectangular Copper Wire For Motor Windings | ||
| High Light: | eiw180 rectangular copper wire,motor windings rectangular copper wire,eiw180 enameled copper winding wire |
||

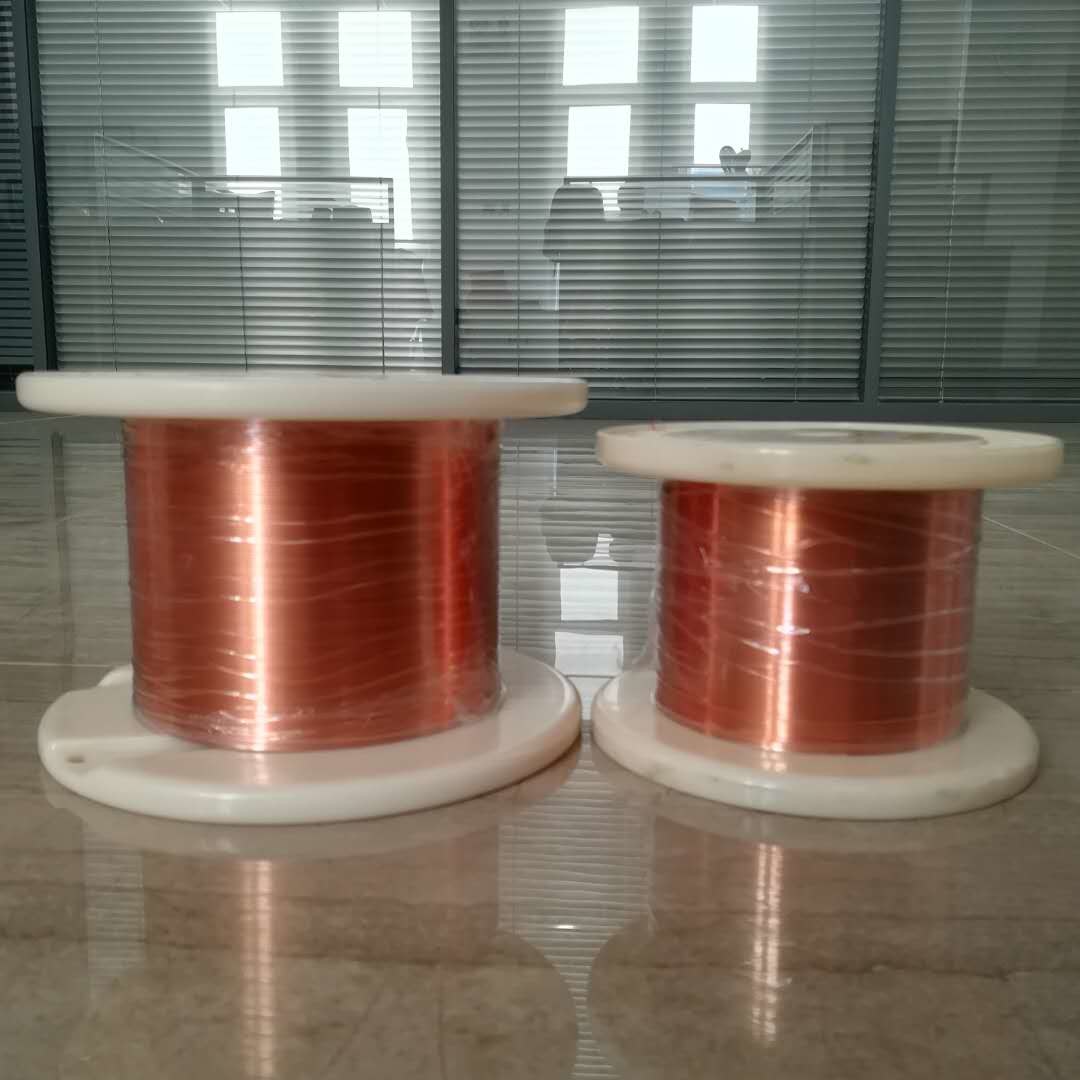

EIW180 2.00*0.8mm Enameled Rectangular Copper Wire For Motor Windings
Our company provides custom enameled flat copper wire solutions to meet the unique needs of our customers.
We can manufacture flat wires with a minimum thickness of 0.04mm and a width-to-thickness ratio of 25:1, providing a wide range of options for various motor applications.
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | Smooth Equality | ||
| Conductor Diameter | Width | 2.00 | ±0.030 | 1.974 |
| Thickness | 0.80 | ±0.030 | 0.798 | |
| Min.thickness of insulation | Width | 0.120 | 0.149 | |
| Thickness | 0.120 | 0.169 | ||
| Overall Diameter | Width | 2.20 | 2.123 | |
| Thickness | 1.00 | 0.967 | ||
| Pinhole | Max. 0 hole/m | 0 | ||
| Elongation | Min. 30 % | 40 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 11.79 | 11.51 | ||
| Breakdown Voltage | Min. 2.00kv | 7.50 | ||
| Heat shock | No Crack | No Crack | ||
| Conclusion | Pass | |||
