Custom Ustc Litz Magnet Wire 38 Awg 0.1mm 0.08mm 0.05mm Silk Covered For Audio

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 10 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: Custom USTC 0.1mm 0.08mm 0.05mm Silk Covered Litz Wire For Audio
Diameter: 0.1mm/38AWG Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: Custom USTC 0.1mm 0.08mm 0.05mm Silk Covered Litz Wire For Audio
No. Of Strands: 16
High Light:

38AWG litz magnet wire

,

litz magnet wire for audio

,

38AWG ustc litz wire


Product Description

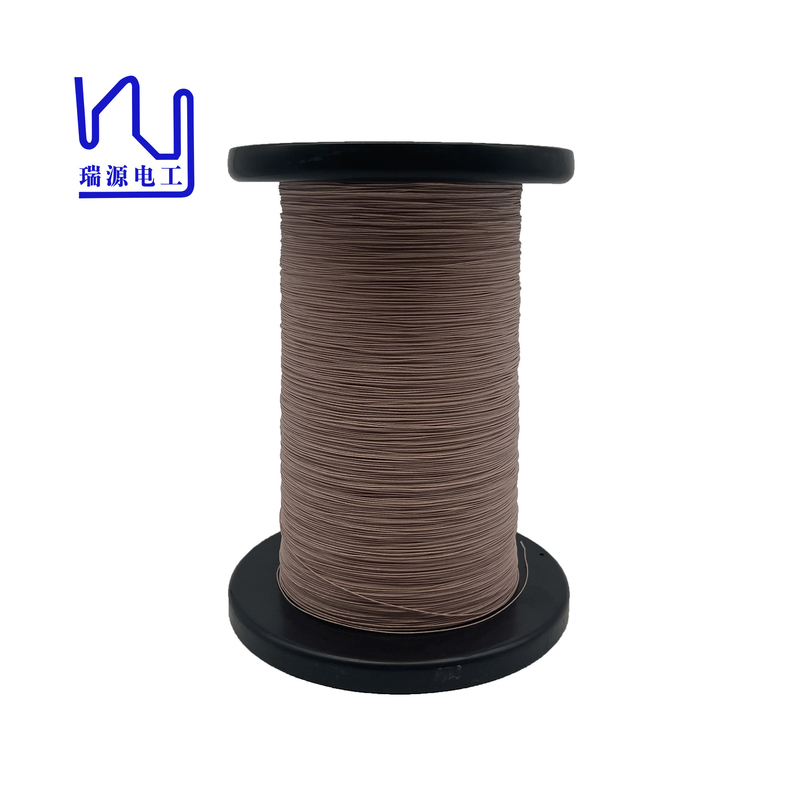

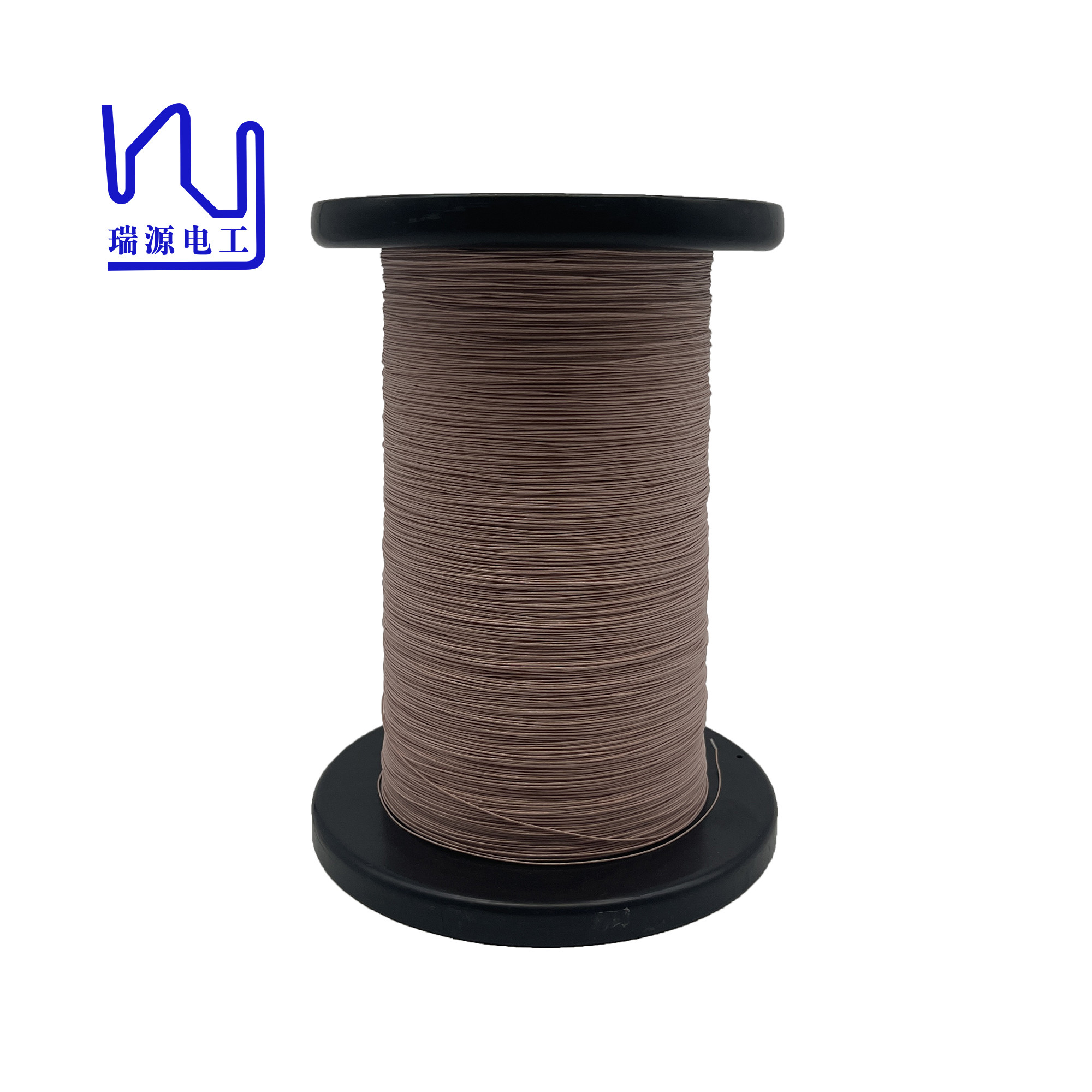

Custom USTC 0.1mm 0.08mm 0.05mm Silk Covered Litz Wire For Audio

Nylon serving copper litz wire has important applications in the field of audio equipment. It is made of multiple strands of small copper wires twisted together and covered with a wear-resistant nylon coating, which not only protects the copper wires but also reduces electromagnetic interference. This design allows the audio signal to maintain high quality and stability during transmission, improving the performance of the audio equipment. This material is usually used to manufacture high-fidelity audio cables and internal wiring of speakers. It can effectively reduce resistance and loss during signal transmission and improve the sound quality and signal transmission stability of audio equipment. Whether it's a professional recording studio, audio amplifier or hi-fi sound system, nylon serving copper litz wire is an essential component in improving audio performance and sound quality.

Test report: USTC-F 0.1mm*16

Item

Technical standard

Test result

Appearance

Smooth, no No slags

Good

Conductor diameter (mm)

0.100±.0003

0.100

Outer conductor diameter(mm)

0.110-0.125

0.114

No. Of strands

16

16

Stranding direction

S

Good

Pinhole

6m faults≤ strands*2

1

Conductor resistance

≤153.28 Ω/km(20℃)

136

Breakdown voltage

≥ 1.1KV

3.7

Solderability 390±5℃

Smooth, no pinhole, no slags

Good
