| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | Custom Silk Covered Litz Wire For High Frequency Transformer |
|---|---|---|---|
| Diameter: | 0.1mm/38 AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom Silk Covered Litz Wire For High Frequency Transformer |
| No. Of Strands: | 16 | ||
| High Light: | 38 AWG hf litz wire,transformer hf litz wire,38 AWG ustc litz wire |
||

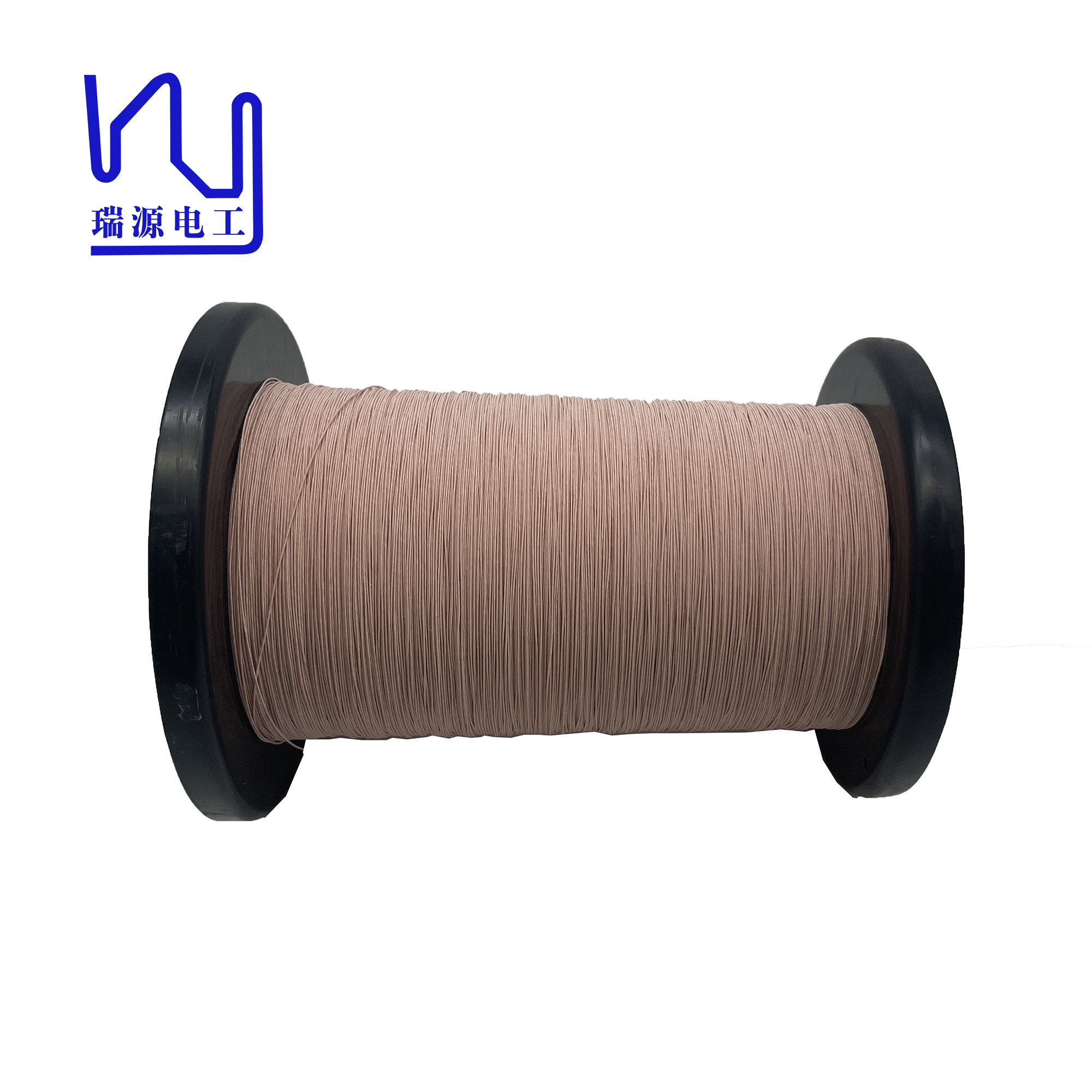

Custom Silk Covered Litz Wire For High Frequency Transformerre
With the rapid growth of new energy vehicles, the demand for advanced electrical components has surged. Nylon litz wire has become an important solution in this field, with unparalleled capabilities to support the complex electrical systems of electric and hybrid vehicles. Its high flexibility and durability enable integration into complex battery management systems, power electronics, charging infrastructure and electric drivetrains. By promoting efficient power transmission and signal integrity, this wire plays a vital role in optimizing the performance and reliability of new energy vehicles.
|
Test report: USTC-F 0.1mm*16 |
||
|
Item |
Technical standard |
Test result |
|
Appearance |
Smooth, no No slags |
Good |
|
Conductor diameter (mm) |
0.100±.0003 |
0.100 |
|
Outer conductor diameter(mm) |
0.110-0.125 |
0.114 |
|
No. Of strands |
16 |
16 |
|
Stranding direction |
S |
Good |
|
Pinhole |
6m faults≤ strands*2 |
1 |
|
Conductor resistance |
≤153.28 Ω/km(20℃) |
136 |
|
Breakdown voltage |
≥ 1.1KV |
3.7 |
|
Solderability 390±5℃ |
Smooth, no pinhole, no slags |
Good |
