Certification: | ISO9001/ISO14001/UL/SGS | Name: | 1UEW155 Color Litz Wire Blue 0.125mm*2 Copper Stranded Wire |
---|---|---|---|
Diameter: | 0.125mm | Conductor: | Copper |
Insulation: | Enamel | Rated Temperature: | 155 |
Key Word: | 1UEW155 Color Litz Wire Blue 0.125mm*2 Copper Stranded Wire | No. Of Strands: | 2 |
High Light: | magnet copper litz wire,2 stranded copper litz wire,2 stranded litz copper wire |

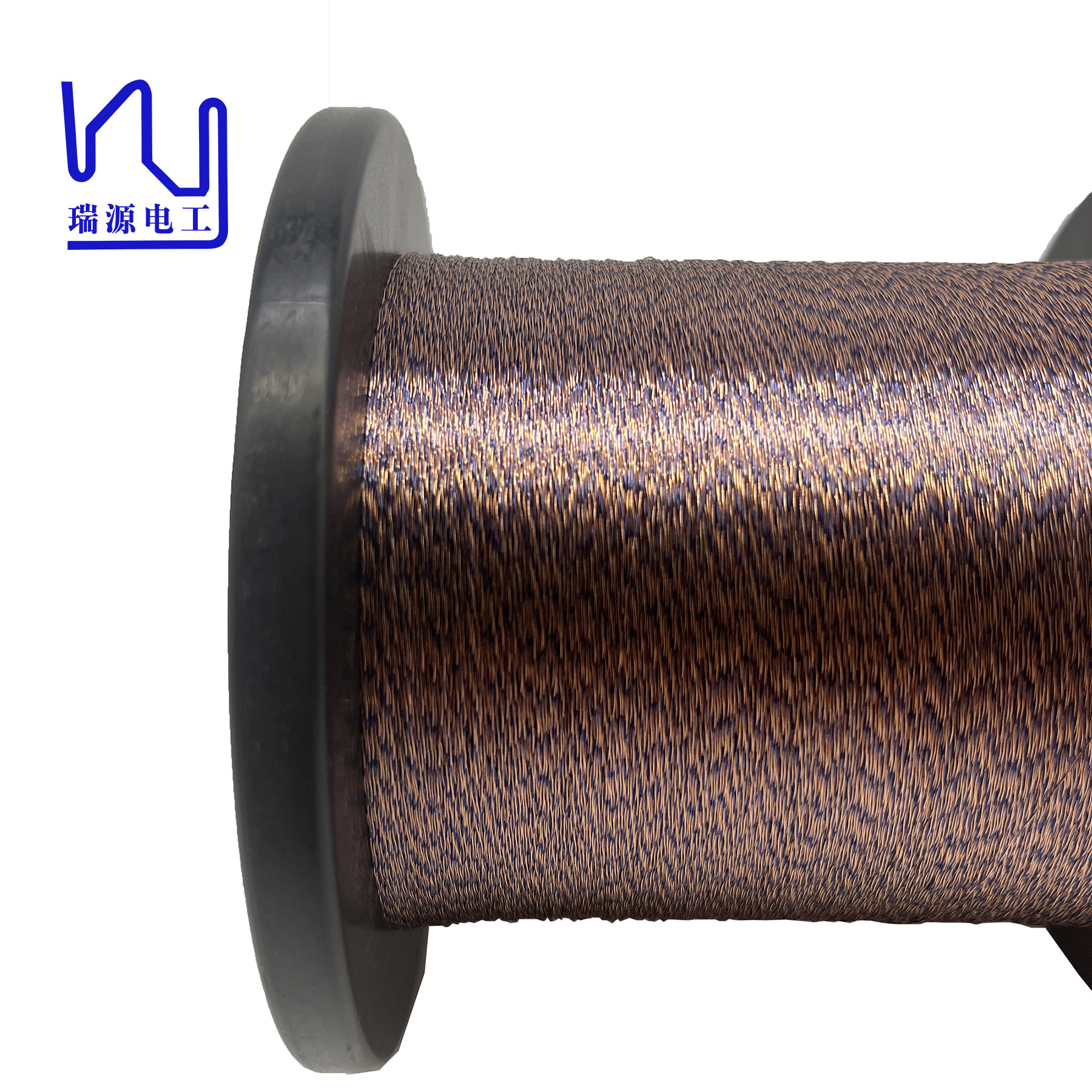

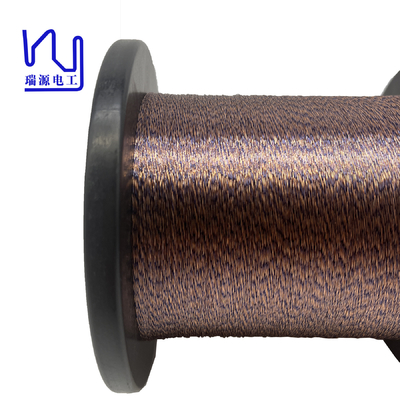

1UEW155 Color litz wire blue 0.125mm*2 copper stranded wire
Enameled copper stranded wire, also known as Litz wire, is a custom-made wire made of multiple strands of enameled copper wires twisted together.
The single wire diameter of this kind of wire ranges from 0.03mm to 0.8mm, and it uses weldable polyurethane coating enameled copperwire.
The thermal grade are often 155 degrees and 180 degrees.
This colored Litz wire is unique, because it is made up of twisted enameled single wires in two colors, natural and blue. We can also produce according to your customized needs for colors, such as red, green, yellow, etc.
Description Conductor diameter*Strand number |
1UEW 0.125*2(mm) | Test result(mm) | |
Single wire |
Conductor diameter(mm) | 0.125±0.003 | 0.125-0.127 |
Outer conductor diameter(mm) | 0.134-0.155 | 0.138-0.145 | |
Maximal overall diameter (mm) | 0.35 | 0.30 | |
Pitch(mm) | 4±1 | √ | |
Max resistance (Ω/Km at20℃) | Max 0.7375 | 0.6947 | |
Mini breakdown voltage (V ) | 1300 | 2000 | |
