| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Self-bonding 0.2mm Speaker Coil Enameled Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.2mm |
| Conductor Material: | Copper | Key Word: | Self-bonding 0.2mm Speaker Coil Enameled Copper Wire |
| Type: | Self-bonding 0.2mm Speaker Coil Enameled Copper Wire | ||
| High Light: | self bonding super enamel wire,self bonding varnished copper wire,self bonding enamelled copper wire factories |
||

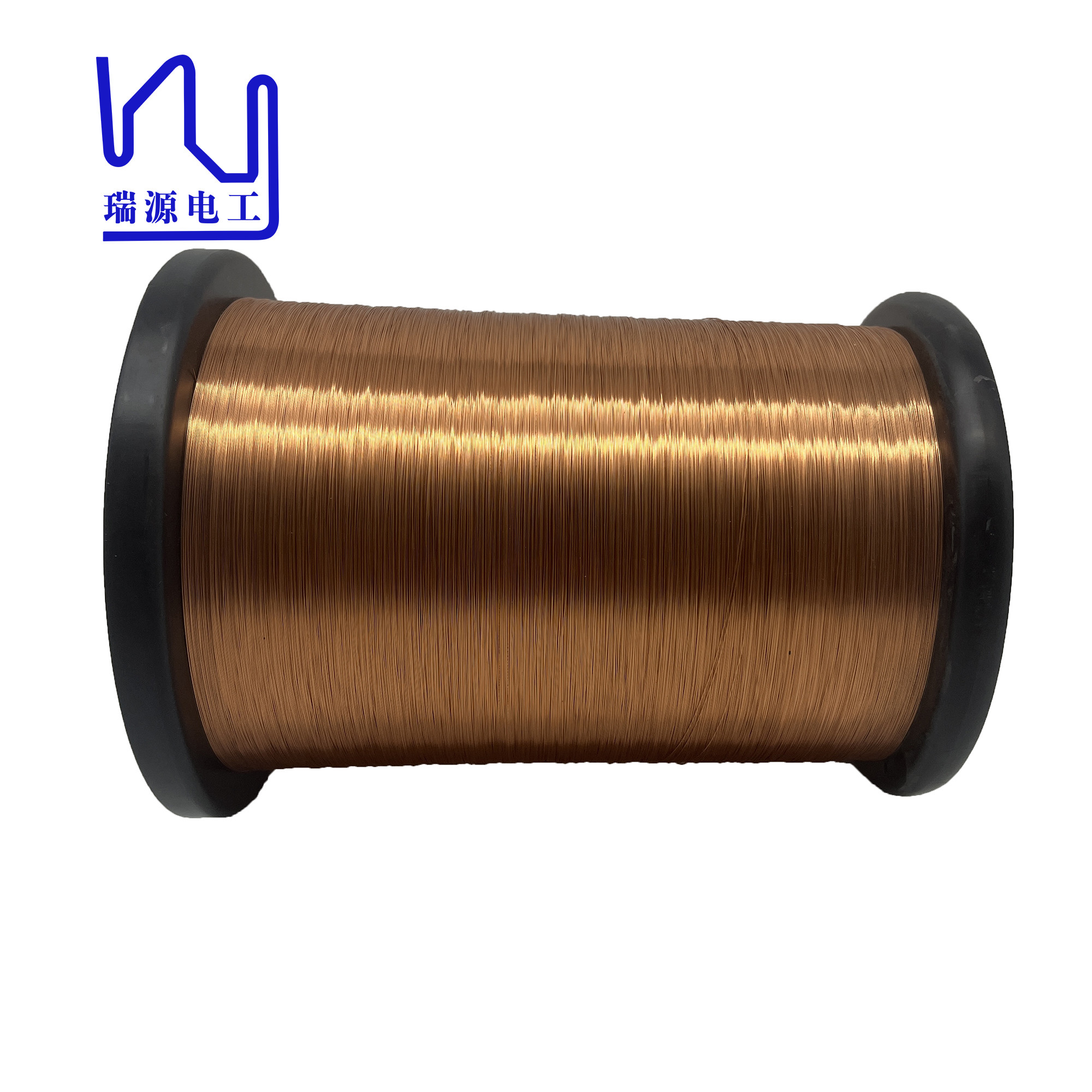

Self-bonding 0.2mm Speaker Coil Enameled Copper Wire
In today's fiercely competitive market environment, the application of self-adhesive enameled copper wires is constantly refreshing our understanding of high-end conductors.
Hot-air self-adhesive enameled copper wire has become an ideal choice in many fields due to its excellent environmental protection characteristics and efficient performance.
This is hot wind self adhesive enameled copper wire, solderable pulyurethane coating, single wire diameter is 0.2 mm.
|
Self-bonding 0.2mm Speaker Coil Enameled Copper Wire |
|
|
Conductor Diameter |
0.20mm/ 32 AWG |
|
O.D |
MAX. 0.235mm |
|
Breakdown Voltage |
min. 4000V |
|
Bonding Strength |
min. 36g |
|
Elongation |
min. 23% |
