| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | High Frequency 0.1*70 2UDTC-F Nylon Served Copper Litz Wire For Motor |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | High Frequency 0.1*70 2UDTC-F Nylon Served Copper Litz Wire For Motor |
| No. Of Strands: | 70 | ||
| High Light: | high frequency copper litz wire,nylon served copper litz wire,motor served litz wire |
||

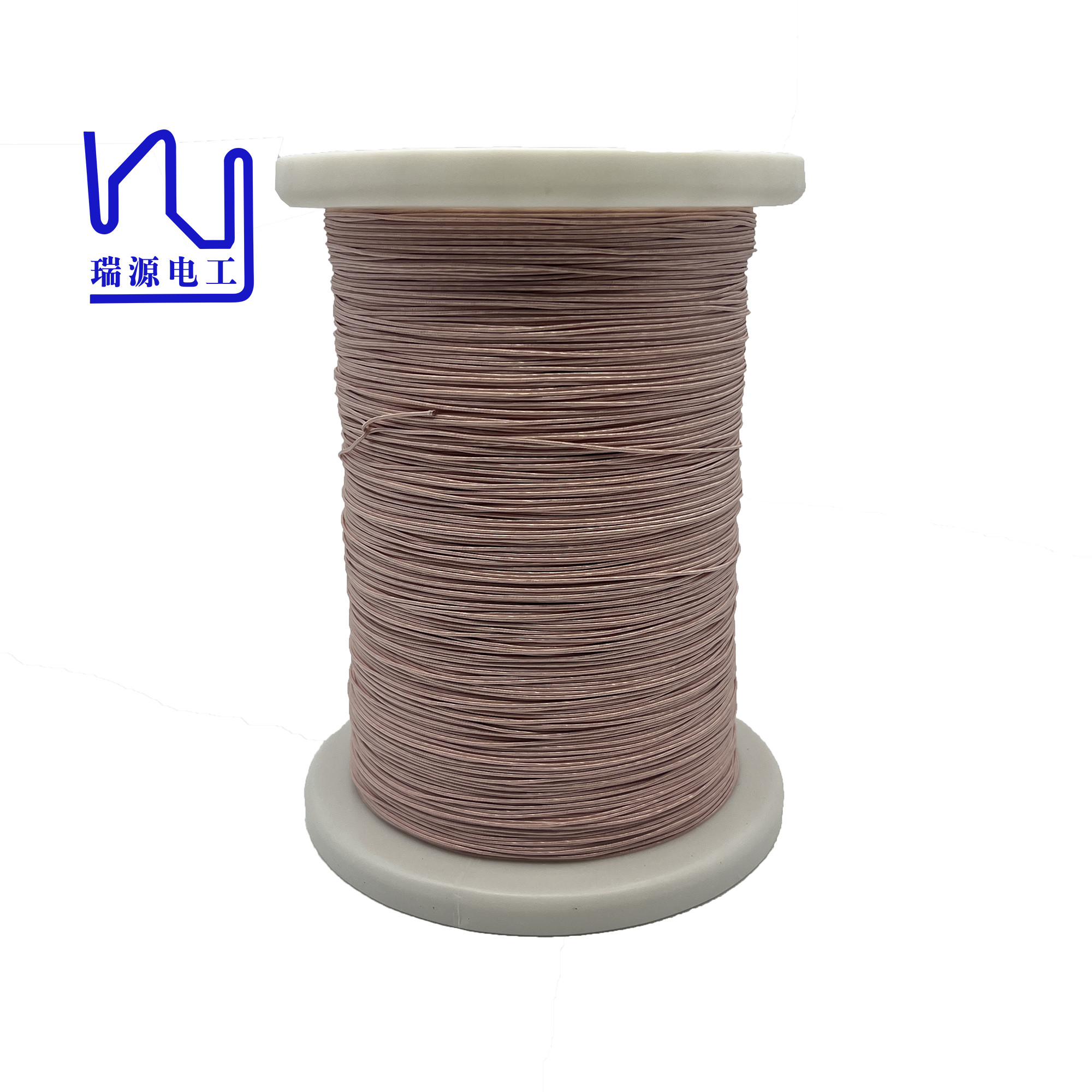

High Frequency 0.1mm*70 2UDTC-F Nylon Served Copper Litz Wire for Motor
In audio equipment, nylon stranded wire is used as voice coil wire to enhance sound response and accuracy.
In addition to audio equipment, nylon served Litz wire is used in transformer and motor manufacturing. The low resistance and low inductance of the wire make it suitable for use in transformers, which can efficiently carry high-frequency currents.
In the motor manufacturing industry, nylon stranded wire is used to make windings of high-speed motors to improve the efficiency and power output of the motor.
Regarding the insulation, now we provide nylon, polyester and natural silk coatings for litz wire.
We accept small batch customization, the MOQ is usually 10kg, depending on the product specification.
| Product name: High Frequency 0.1*70 2UDTC-F Nylon Served Copper Litz Wire for Motor | ||
|
Description Conductor diameter*Strand number |
2USTC- F 0. 10*70 |
|
|
Single wire
|
Conductor diameter(mm) | 0. 100 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0 .005 | |
| Maximal overall diameter (mm) | 0 . 125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition
|
Strand number | 70 |
| Pitch(mm) | 27± 3 | |
| Stranding direction | S | |
|
Insulation layer
|
Category | Nylon |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics
|
Max O. D (mm) | 1.20 |
| Max pin holes 个/6m | 40 | |
| Max resistance (Ω/Km at20℃) | 34.01 | |
| Mini breakdown voltage (V ) | 1100 | |
| Key word |
High Frequency 0.1*70 2UDTC-F Nylon Served Copper Litz Wire for Motor |
|
