| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | High Voltage UEW Ultra Thin Enameled Copper PI Film Litz Wire |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155 | Key Word: | High Voltage UEW Ultra Thin Enameled Copper PI Film Litz Wire |
| No. Of Strands: | 60 | ||
| High Light: | uew copper litz wire,22gauge copper litz wire,22 gauge enamel coated magnet wire |
||

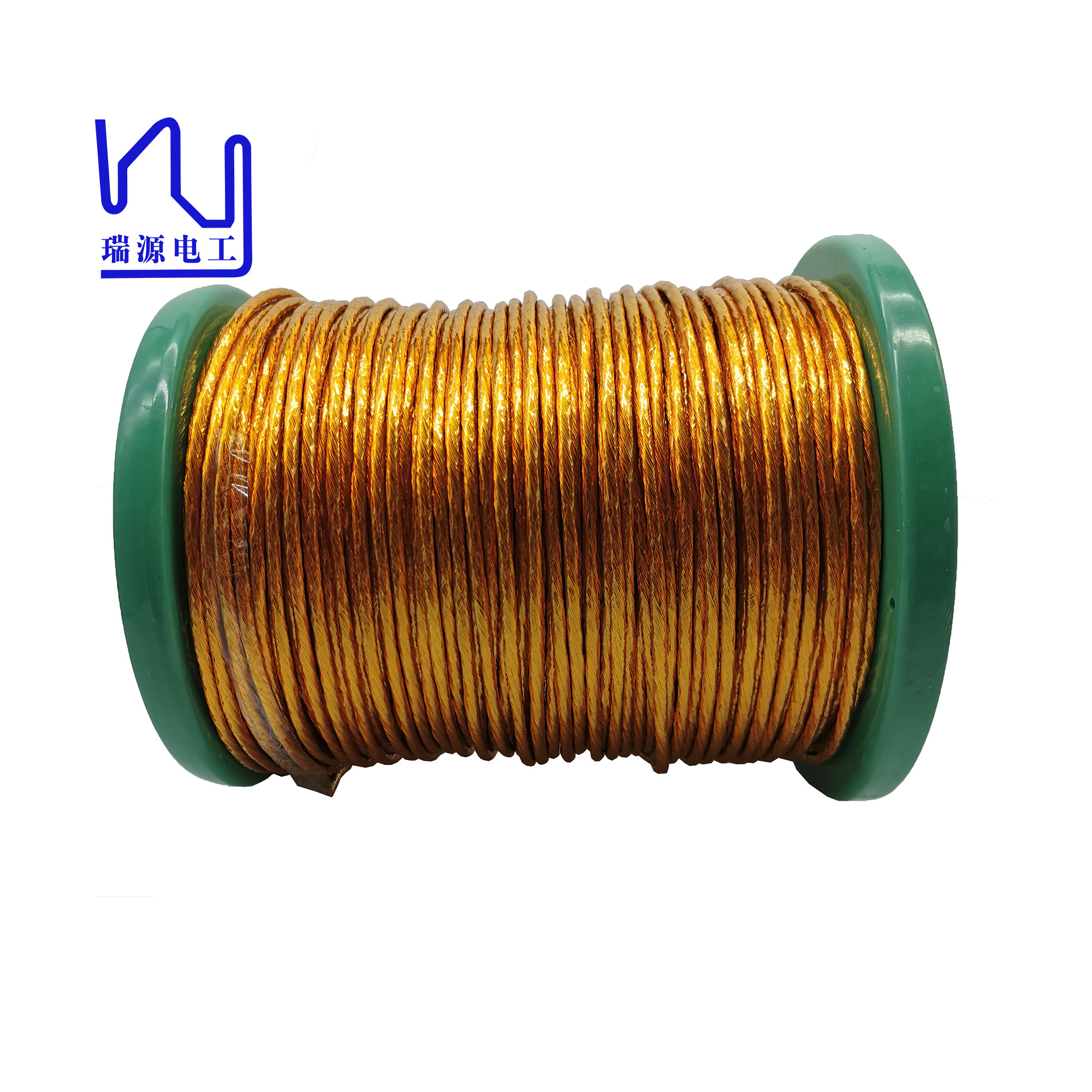

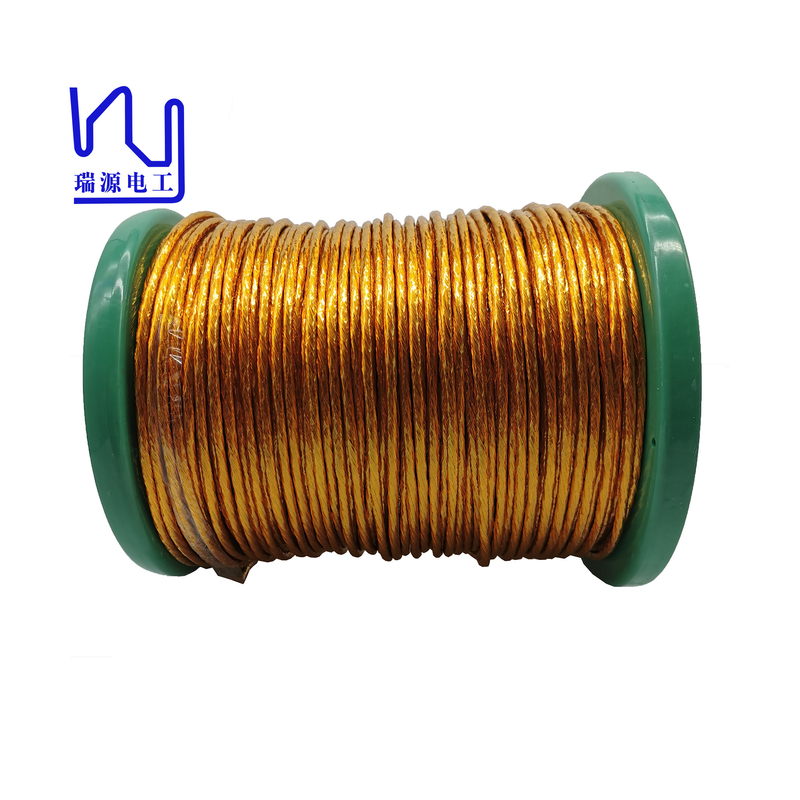

High Voltage UEW Ultra Thin Enameled Copper PI Film Litz Wire
PI film-covered litz wire is a high-performance litz wire. This Taped litz wire consists of 60 enameled wires with a single wire diameter of 0.4 mm. The wire is wrapped with a polyimide (PI) film, thus exhibiting excellent performance in high temperature and chemical environments.
In industrial manufacturing and electronic equipment manufacturing, taped litz wire plays an important role in reducing line noise and improving signal quality.
Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60 | ||
Characteristics | Technical requests | Test Results |
Outer diameter of single wire(mm) | 0.422-0.439 | 0.428-0.438 |
Conductor diameter(mm) | 0.40±0.005 | 0.397-0.399 |
Overall dimension(mm) | Min.4.74 | 4.21-4.51 |
No. Of strands | 60 | 60 |
Pitch(mm) | 47±3 | √ |
Maximum Resistance(Ω/m 20℃) | 0.002415 | 0.00227 |
Dielectric strength(V) | Min.6000 | 13500 |
Tape(overlap %) | Min.50 | 53 |
Name | High Voltage UEW Ultra Thin Enameled Copper PI Film Litz Wire |
Key word | Mylar litz wire |
Insulationh | Enamel, polyster cover |
Thermal rating | 155degree |
Diameter of the enameled copper wire | 0.5mm |
Number of strands | 60 |
Type | High Voltage UEW Ultra Thin Enameled Copper PI Film Litz Wire |
