| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.14mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Stock Available UEW 0.14mm Enameled Copper Wire For Winding Electric Motors | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.14mm |
| Conductor Material: | Copper | Key Word: | Stock Available UEW 0.14mm Enameled Copper Wire For Winding Electric Motors |
| High Light: | 0.14mm enameled copper wire,winding electric motors enameled copper wire,ultra fine awg magnet wire |
||

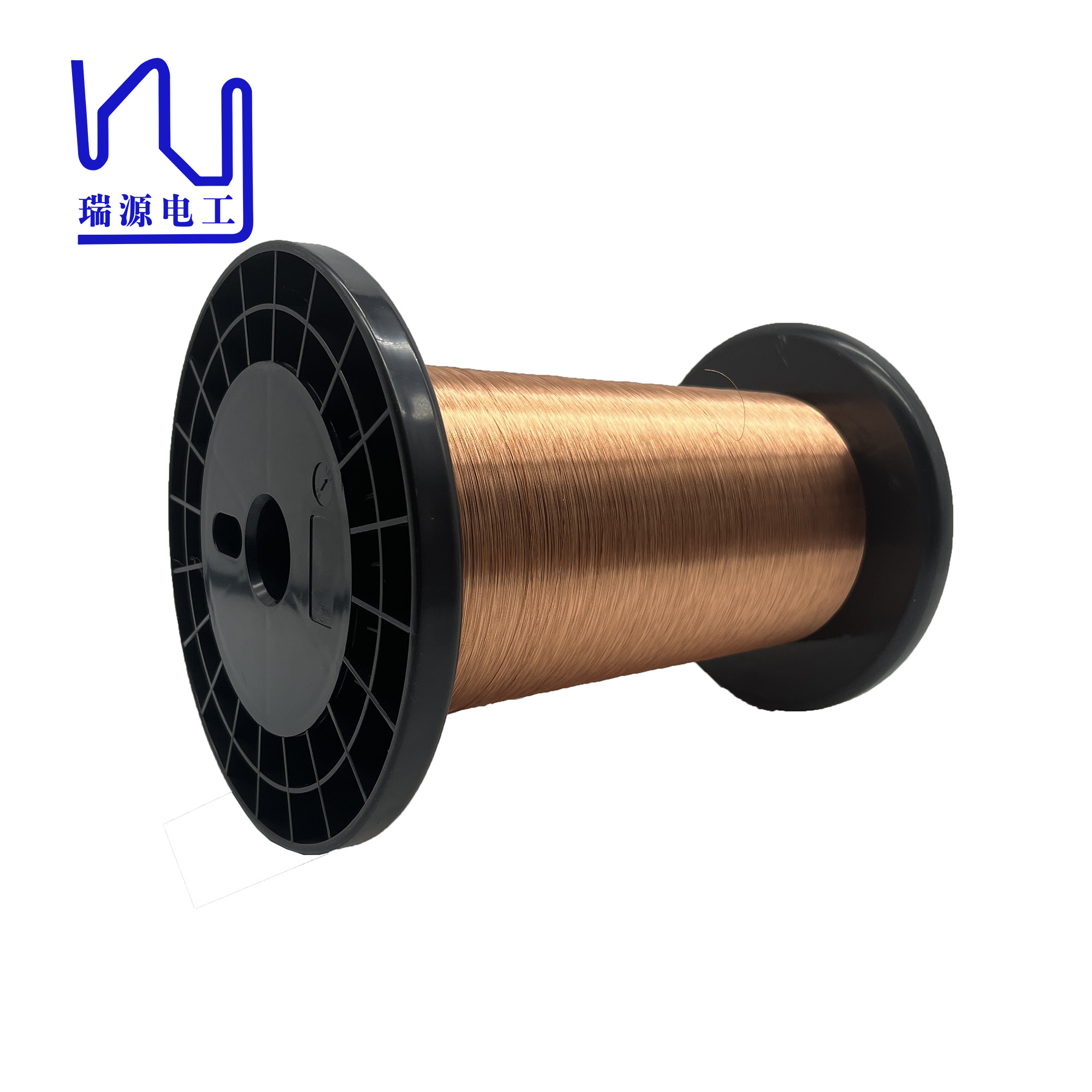

Stock Available UEW 0.14mm Enameled Copper Wire for Winding Electric Motors
The advantages of enamelled copper wire lie in its good insulation, high temperature resistance, wear resistance, corrosion resistance and other characteristics, and it is widely used in electronics, aviation, nuclear energy and other fields.
As a product that can be directly soldered, the enamelled copper wire is not only convenient and practical, but also stable in performance, providing a perfect solution for the electrical manufacturing industry.
If you need high-quality and reliable enameled copper wire, it is recommended to choose the enameled wire produced by us. We are deeply trusted and favored by customers.
| Item | Requirements | Test Data | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Conductor diameter(mm) | 0.140±0.004mm | 0.140 | 0.140 | 0.140 |
| Coating thickness | ≥ 0.011mm | 0.0150 | 0.0160 | 0.0150 |
| Overall dimention(mm) | ≤0.159mm | 0.1550 | 0.1560 | 0.1550 |
| DC Resistance | ≤1.153Ω/m | 1.085 | 1.073 | 1.103 |
| Elongation | ≥19% | 24 | 25 | 24 |
| Breakdown Voltage | ≥1600V | 3163 | 3215 | 3163 |
| Pinhole | ≤5(faults)/5m | 0 | 0 | 0 |
| Cut-through | 200℃ 2min No breakdown | ok | ||
| Heat Shock | 175±5℃/30min No cracks | ok | ||
| Solderability | 390± 5℃ 2 Sec No slags | ok | ||
|
Name |
Stock Available UEW 0.14mm Enameled Copper Wire for Winding Electric Motors |
|
Key word |
Enameled copper wire |
|
Insulation |
Enamel |
|
Thermal rating |
155/180 |
|
Diameter |
0.14mm |
|
Type |
Super Thin Coil 2UEW Insulated 0.03mm Enameled copper Wire for Motors Winding |
