| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm*0.15mm |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Amide-imide AIW220 0.15mm Hot Wind Self Bonding Square Enameled Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.15mm |
| Thickness: | 0.15mm | Conductor Material: | Copper |
| Key Word: | Amide-imide AIW220 0.15mm Hot Wind Self Bonding Square Enameled Copper Wire | ||
| High Light: | amide imide enameled copper wire,enameled copper wire,0.15 mm enamelled copper wire |
||

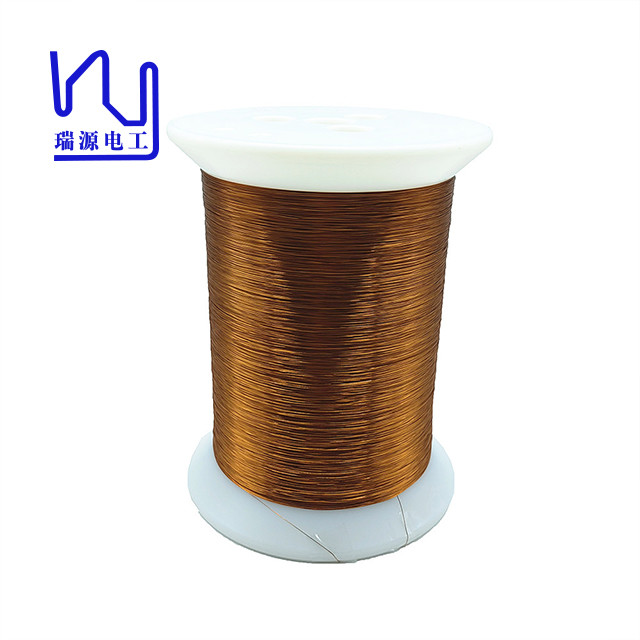

Amide-imide AIW220 0.15mm Hot Wind Self Bonding Square Enameled Copper Wire
Features:
1) Suitable for winding in high speed machines
2) Very good resistance to transformer oils
3) Very good resistance to typical solvent
4) Freon resistant
5) Excellent resistance to mechanical stress
Application:
Typical applications of enameled square wire are smart watches, smart phones, electronic transformers, UPS power supply, generator, motor, welder, etc.
|
Product name |
Amide-imide AIW220 0.15mm Hot Wind Self Bonding Square Enameled Copper Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Amide-imide AIW220 0.15mm Hot Wind Self Bonding Square Enameled Copper Wire |
| Test Report: 0.15*0.15mm AIW Class 220℃ Hot Air Self-bonding Flat Wire | ||||
| Item | Characteristics | Standard | Test Result | |
| 1 | Appearance | Smooth Equality | Smooth Equality | |
| 2 |
Conductor Diameter(mm) |
Width | 0.150±0.030 | 0.156 |
| Thickness | 0.150±0.030 | 0.152 | ||
| 3 | Thickness of Insulation(mm) |
Width | Min.0.007 | 0.008 |
| Thickness | Min.0.007 | 0.009 | ||
| 4 |
Overall Diameter (mm) |
Width | 0.170±0.030 | 0.179 |
| Thickness | 0.170±0.030 | 0.177 | ||
| 5 | Selfbonding Layer Thickness(mm) | Min.0.002 | 0.004 | |
| 6 | Pinhole(pcs/m) | Max ≤8 | 0 | |
| 7 | Elongation(%) | Min ≥15 % | 30% | |
| 8 | Flexibility and Adherence | No crack | No crack | |
| 9 | Conductor Resistance (Ω/km at 20℃) | Max. 1043.960 | 764.00 | |
| 10 | Breakdown Voltage(kv) | Min. 0.30 | 1.77 | |
