| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 5*2 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | Negotiation |
| Product Name: | Continuously Transposed Conductor | Size: | Customized |
|---|---|---|---|
| Material: | Copper | Application: | Ultra-high Power Transformers |
| High Light: | continuously transposed cable,5mm x 2mm continuously transposed cable,transformer continuously transposed cable |
||

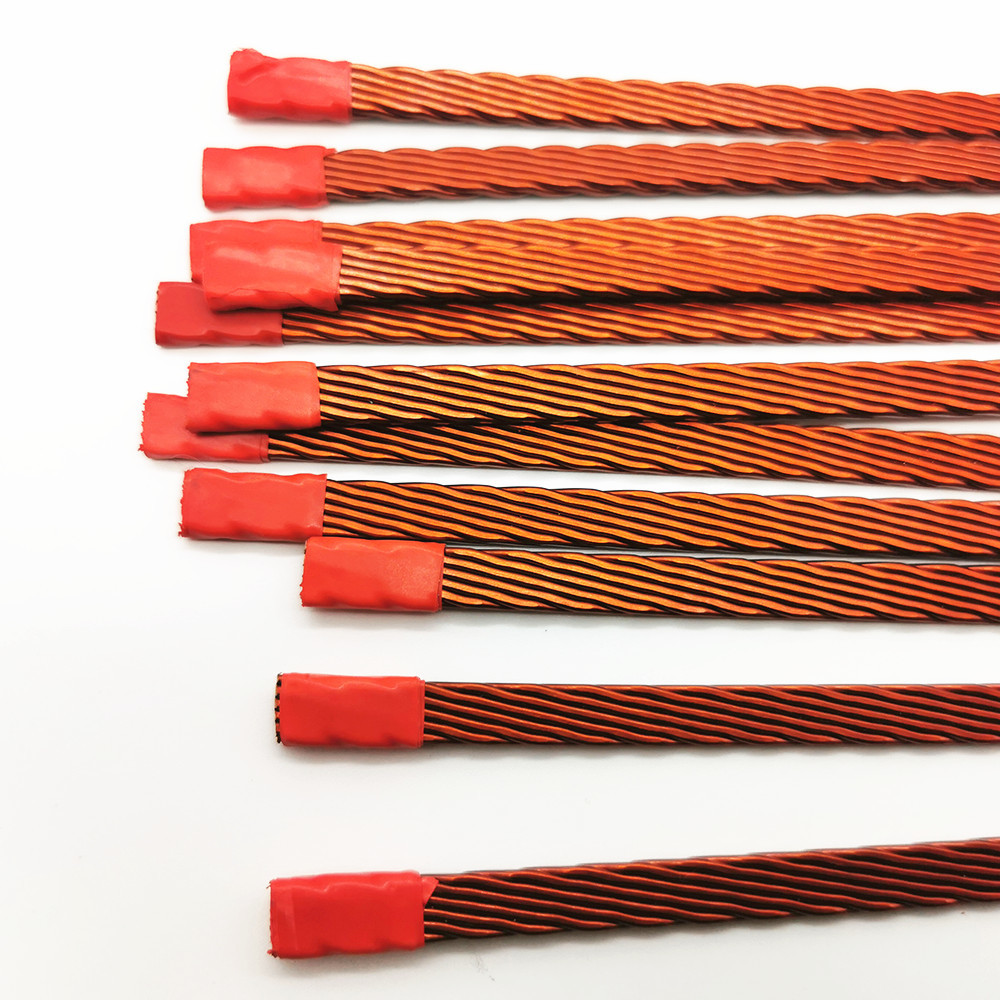

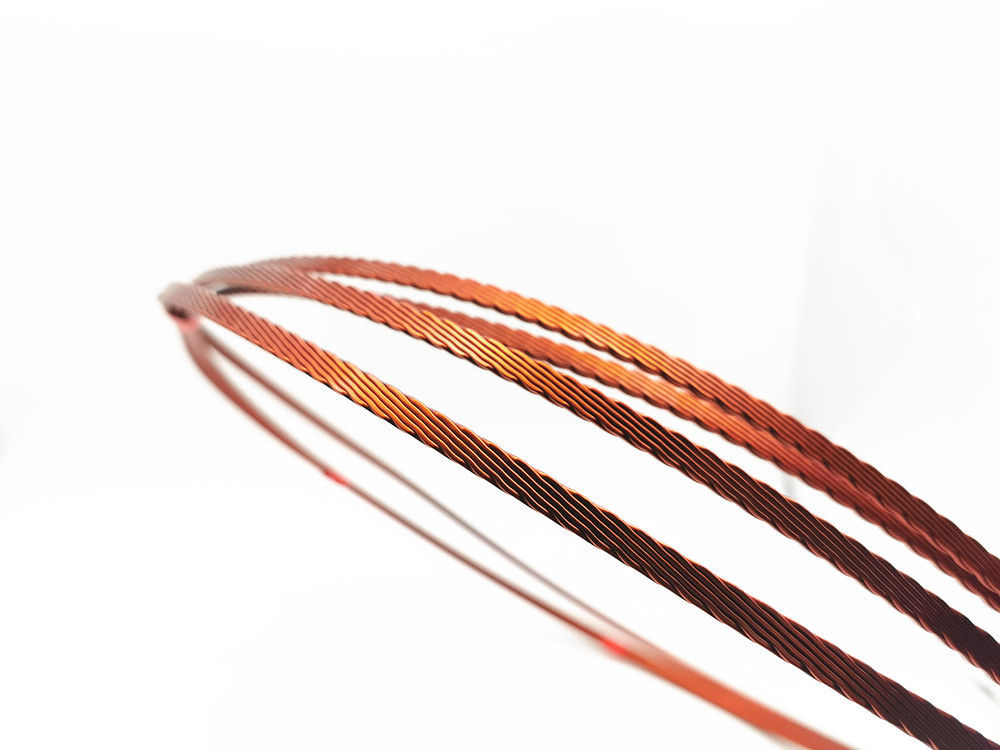

Continuously Transposed Conductor Customized CTC Rectangular Enameled Copper Wire
Continuously Transposed Conductor(CTC) is the most used for windings on Midium and ultra-high power transformer. It consist of a group of enameled wire,which are transposed ot create a kind of rectangular strand.
| Product name | Continuously transposed conductor |
| Material | Copper |
| Port | Tianjin |
Advantage
1. High temperature resistance
2.Improved transformer performance by reducing eddy current losses.
3.Consiserable increase in space factor due to very small thickness of single conductor insulation.
4.Uniform temperature distribution throughout winding.
5. Increased short circuit force resistance, particularly with epoxy bond coat insulation.
