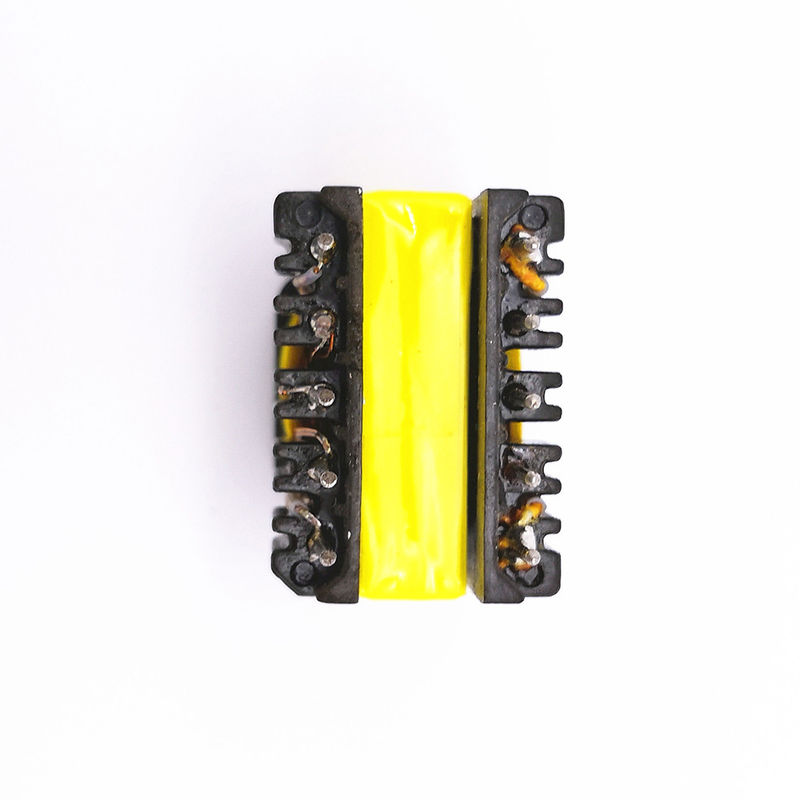

Precision EE22 Power Line Filter Transformer 14W High Frequency Lightweight

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: EE22
Minimum Order Quantity: 1000pcs
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Size: 24*19*26mm Inductance: 5-3=1.5mH±10%
Recommened Power: 14W Resistance: 5-3=1.9 Ohms MAX
Working Frequency: 100KHz 1Vrms
High Light:

line filter transformer

,

electrical line filter


Product Description

EE22 10KHZ HIGH FREQUENCY FLYBACK TRANSFORMER POWER LINE FILTER



High-frequency transformers operate using the same basic principles as standard transformers. The primary difference is that, as their name implies, they operate at much higher frequencies — while most line voltage transformers operate at 50 or 60 Hz, high-frequency transformers use frequencies from 20 KHz to over 1MHz.Operating at a higher frequency has many benefits, the first of which is size.For any given power rating, the higher the frequency, the smaller the transformer can be.



EE22
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
24*19*26
5+5
4
14W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
5-3=1.5mH±10%
4-5=3.7ΩMAX
5-3=35uH
100KHz 1Vrm
