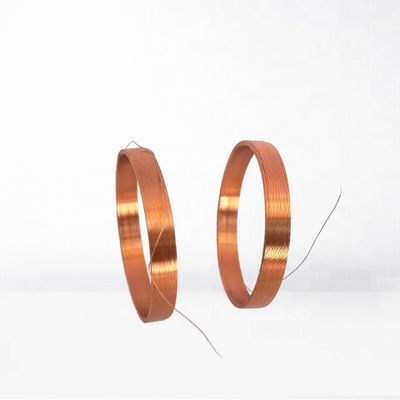

AWG 24-56 Enameled Copper Winding Wire Self Bonding Wire For Relays / Solenoids Coil / Motor Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: AWG24-56
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C,Negotiation,
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001 /UL/SGS Standard: JIS/IEC/NEMA
Diameter: 0.012-0.5mm Conductor: Copper
Application: Relays / Transformer / Solenoids Coil / Motor Winding Solderability: Yes
OEM: Support
High Light:

soft copper wire

,

self solderable copper wire


Product Description

AWG 24-56 ENAMELED COPPER WINDIGN WIRE SELF BONDING WIRE FOR RELAYS SOLENOIDS COIL MOTOR WINDING

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

FEATURES

  • Excellent crazing,abrasion,chemical resistance and provides good thermal stability.

  • PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF. Enamelled copper winding wireFine copper wire price

SPECIFICATION

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.013-2.00mm enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130,155,180 centigrade
Enameled types : UEW,QA Fine copper wire price
Certification:UL Approved, ISO9001,ISO14001,RoHS
Fine copper wire price

0.02 Red-8.jpg



Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage



Elongation

Pin Hole

Electrical Resistance





mm





≥ V



≥%

≤Default/5m

Ω/km (20℃)











Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50

----

5

10

142.64

157.65

0.013

----

0.015

0.017

70

----

5

10

118.41

133.98

0.014

----

0.016

0.018

70

----

5

10

102.64

120.45

0.015

----

0.017

0.02

80

----

5

10

89.83

104.41

0.016

----

0.018

0.021

90

----

5

8

74.67

97.56

0.017

----

0.019

0.022

90

----

5

8

66.6

85.75

0.018

----

0.02

0.023

100

----

5

8

59.77

75.95

0.019

----

0.021

0.024

100

----

5

8

53.95

67.75

0.02

0.001

0.022

0.024

100

----

8

8

51.83

60.81

0.05

±0.002

0.007

0.062

400

1200

12

5

7981

9528

0.055

±0.002

0.007

0.068

400

1200

12

5

6642

7815

0.06

±0.002

0.007

0.073

500

1200

14

5

5614

6526
