Enameled Triple Insulated Winding Wire Yellow 0.1 - 1.0mm Magnet Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Delivery Time: 2-15 Days Insulation Mate: PET
Color: Yellow,Red,Blue,Green Size Range: 0.2-1.0mm
High Light:

insulated magnet wire

,

insulated copper wire


Product Description

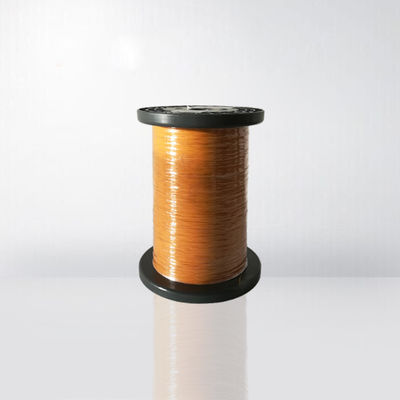

ENAMELED TRIPLE INSULATED WINDING WIRE YELLOW 0.1-1.0MM MAGNET COPPER WIRE

The standard type wire is made up of a conductor and three insulation layers of modified polyester and thermal resistant resin. This was designed and developed to aid solderability and eliminating the need for stripping.Unlike enameled wires, 3 layers of insulation of patented design are extruded over the copper conductor. IEC60950 requires some Reinforced Insulation between the primary and secondary coils. Thus enamelled wire transformers can never omit the insulation tape or barrier tape: enamel coatings give poor electric insulation.
FEATURES AND BENEFITS

No need of interlayer insulation tape or barrier tape between the primary and secondary coils of a transformer. This positive feature of TIW serves to downsize switching transformers, and promises high production efficiency and cost reduction. "TIW Series Wires" paves the way to the design of the most modern switching transformers.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met

APPLICATION

These products demonstrate considerable effects in terms of loss reduction and mitigating temperature rises when used in switching power transformers, which are widely used in industrial and consumer-use equipment.

Enameled Triple Insulated Winding Wire Yellow 0.1 - 1.0mm Magnet Copper Wire 0

SPECIFICATION

Nominal
conductor
diameter
(mm)

Tolerance
(mm)

Typical
overall
diameter
(mm)

Maximum
overall
diameter
(mm)

Maximum
conductor
resistance
(/km)

Unit Weight
(kg/km)

0.20

±0.008

0.400

0.417

607.6

0.398

0.21

±0.008

0.410

0.427

549.0

0.431

0.22

±0.008

0.420

0.437

498.4

0.465

0.23

±0.008

0.430

0.447

454.5

0.500

0.24

±0.008

0.440

0.457

416.2

0.537

0.25

±0.008

0.450

0.467

382.5

0.575

0.26

±0.010

0.460

0.477

358.4

0.616

0.27

±0.010

0.470

0.487

331.4

0.656

0.28

±0.010

0.480

0.497

307.3

0.697

0.29

±0.010

0.490

0.507

285.7

0.742

0.30

±0.010

0.500

0.520

262.9

0.786

0.32

±0.010

0.520

0.540

230.3

0.882

0.35

±0.010

0.550

0.570

191.2

1.033

0.37

±0.010

0.570

0.590

170.6

1.143

0.40

±0.010

0.600

0.625

145.3

1.316

0.45

±0.010

0.650

0.675

114.2

1.633

0.50

±0.010

0.700

0.725

91.43

1.985

0.55

±0.020

0.750

0.775

78.15

2.371

0.60

±0.020

0.800

0.825

65.26

2.793

0.65

±0.020

0.850

0.875

55.31

3.249

0.70

±0.020

0.900

0.925

47.47

3.741

0.75

±0.020

0.950

0.975

41.19

4.267

0.80

±0.020

1.000

1.030

36.08

4.829

0.85

±0.020

1.050

1.080

31.87

5.425

0.90

±0.020

1.100

1.130

28.35

6.056

0.95

±0.020

1.150

1.180

25.38

6.721

1.00

±0.030

1.200

1.230

23.33

7.422
