Class 220 CTC Wire Flat Enamelled Copper Wire Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Class 220
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Type: Flat Enamelled Copper Wire Temperature: 80-220
Conductor Material:: Copper Insulation: Polyester,Polyurethane
Standard: JIS/NEMA/IEC Conductor Type: Solid
High Light:

soft copper wire

,

self solderable copper wire


Product Description

Class 220 CTC Wire Flat Enamelled Copper Wire Winding Wire

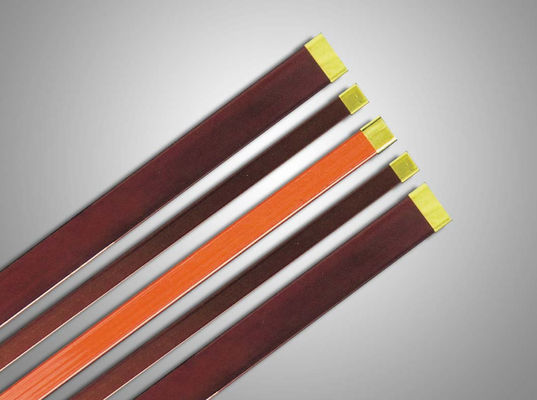

The flat, belt-like construction of the copper winding wires have led to improvement of performance and reduction in sizing. Those improvements expanded the usage for copper winding wires to be used in various types of components such as cables, sensors, solenoids, transformers, and motors.The benefits of rectangular copper winding wires are: the decrease in distributed capacity which leads to decreased stray capacity, and lamination factor will also be improved (up to 30%) because it will not create gaps unlike winding with round wires.

FEATURES

  • The insulation of flat wire could be bondable per the requirements of customers.
  • Flat enameled wire with a larger volume efficie(as the comparison table),will decreasevolume of coils.
  • The flat enameled wire has a low frict coefficient and good winding property.
  • The flat conductor has a wide length/thickness ratio from 2 to 12.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

  • Notebook coil.
  • Coils of printer.
  • Motors of CD driver.
  • Transformer.
  • Speaker



Parameter SMB-130 SMGB-155 SMYB-180 SMYB-200 SMCB-120 SMCYB-240
Standars IEC60317-16 GB/T7095.7 60317-16 GB/T7095.3 60317-28 GB/T7095.4 MW 36 60317-29 BS6811 GB/T7095.6 MW 18 60317-18 GB/T7095.2 MW 20 60317-47 GB/T7095.5
Thermal Class 130°C 155°C 180°C 200°C 120°C 240°C
Enamel Base Coat Polyester Modified Polyester Polyester-Imide Polyester-Imide Polyester-formal Polyimide
Enamel Top Coat       Polyester-Imide
Range of insulation thickness IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm
Performance 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property 1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon 1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation
Application 1.Dry and oil-immersed 2.Electrical equipment 1.Dry and oil-immersed 2.Electrical equipment 1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil 1.Dry and oil-immersed transformer 2.Electrical equipment 1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability
Heat shock 155°C 175°C 200°C 220°C 155°C 300°C
